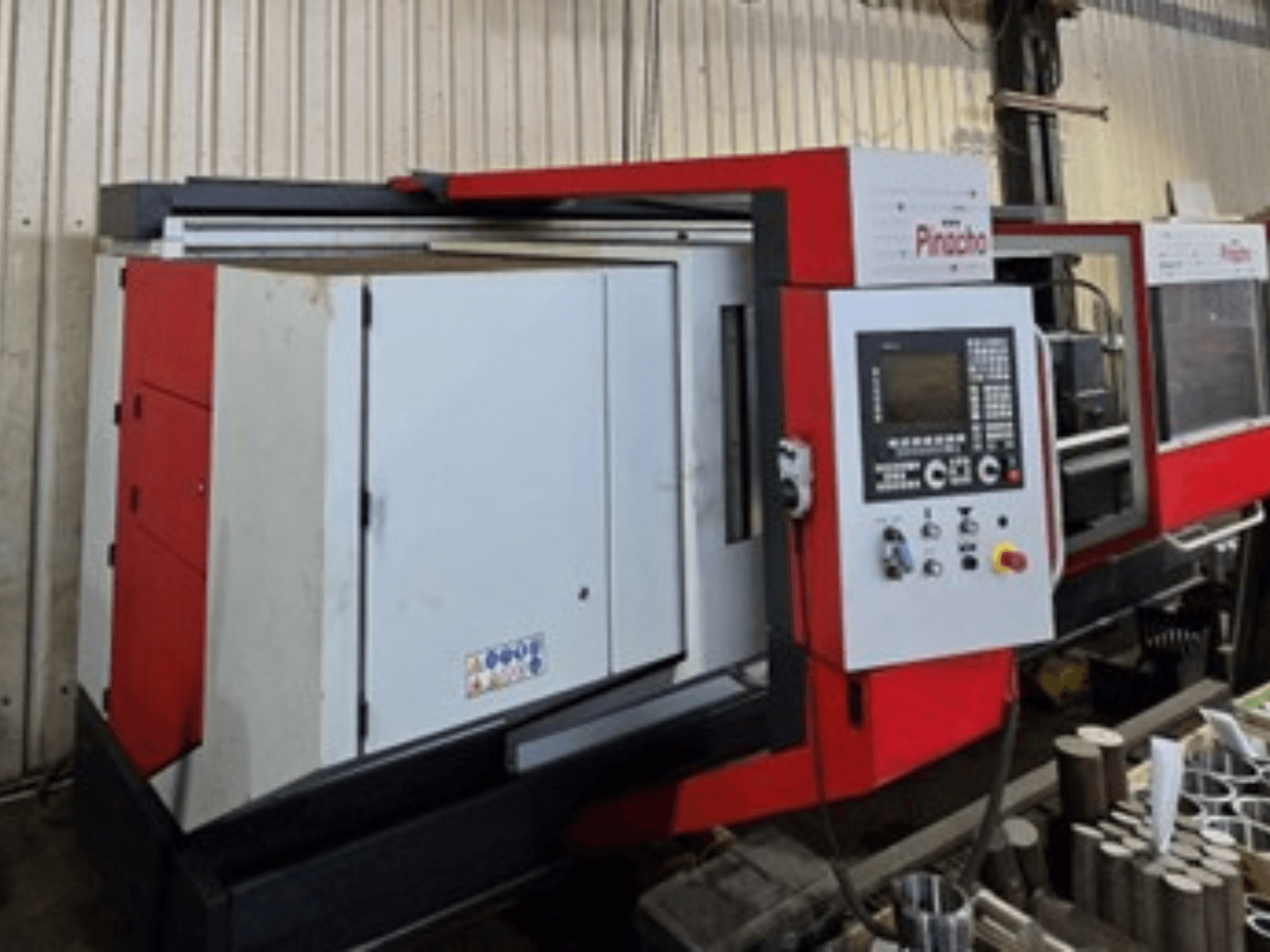

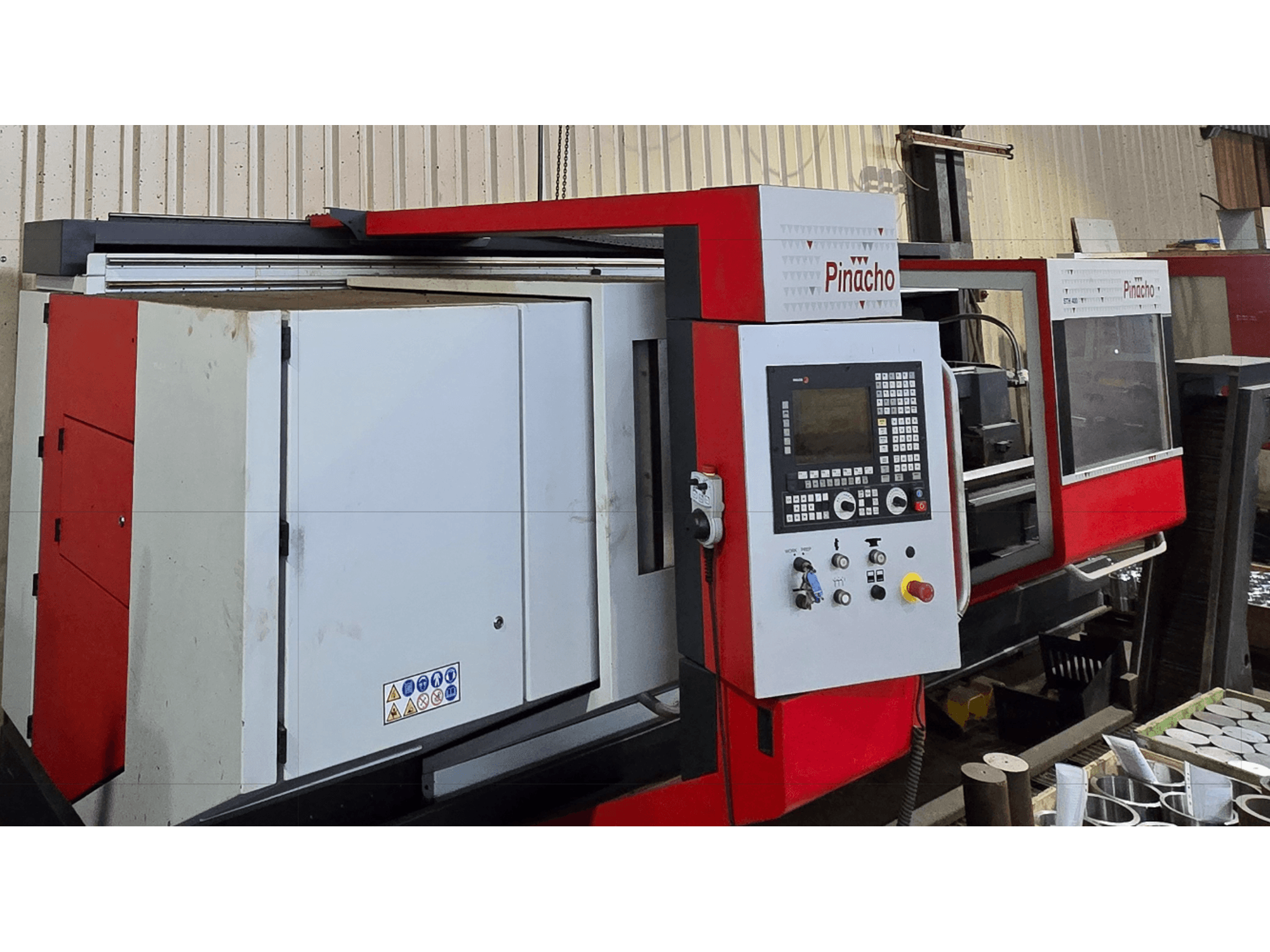

This Pinacho STH 400-105×3000 was manufactured in 2017. A robust horizontal turning machine with a swing over bed of 400 mm and a distance between centers of 3000 mm. Features a high-torque spindle and CNC-controlled feed for precise heavy-duty turning. Ideal for machining shafts, pipes, and flanges. Consider the opportunity to buy this Pinacho STH 400-105×3000 horizontal turning machine. Contact us for more information.
Overview
- brand: Pinacho
- year: 2017
- MODEL: STH 400-105×3000
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FAGOR
Technical Information - Pinacho STH 400-105×3000
Control Unit
- Control Brand: FAGOR
Dimensions
- Machine Height: 2230 mm
- Machine Length: 5530 mm
- Machine Weight: 6460 kg
- Machine Width: 1800 mm
Movement
- Number of Axes: 2
- X-axis Travel: 400 mm
- Z-axis Travel: 3000 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 17 kW
- Spindle Speed: 425 RPM
Additional Information
Max. swing over bed: approx. 400 mm
Max. turning diameter: approx. 400 mm
Distance between centers: 3,000 mm
Bar capacity: approx. 105 mm
Spindle
Main spindle: horizontal
Spindle bore: 105 mm
Spindle nose: A2-type (depending on configuration)
Speed range: variable (CNC-controlled)
High-torque spindle suitable for heavy turning
Range I: 0 - 424 rpm
Range II: 425 - 1700 rpm
Axes
X-axis: cross slide
Z-axis: longitudinal slide
CNC-controlled feed and rapid traverse
Tool system
Turret: CNC tool turret
Number of tool stations: depending on configuration
Suitable for internal and external turning
Control system
CNC control: Fanuc / Siemens (depending on configuration)
Full CNC contouring and threading capability
Application
Medium to heavy-duty turning
For shafts, pipes, flanges, and general production parts
Suitable for series and job-shop production
A ball screw was replaced about 3 years ago
Accessories: 1 Lynette and various tool holders
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
