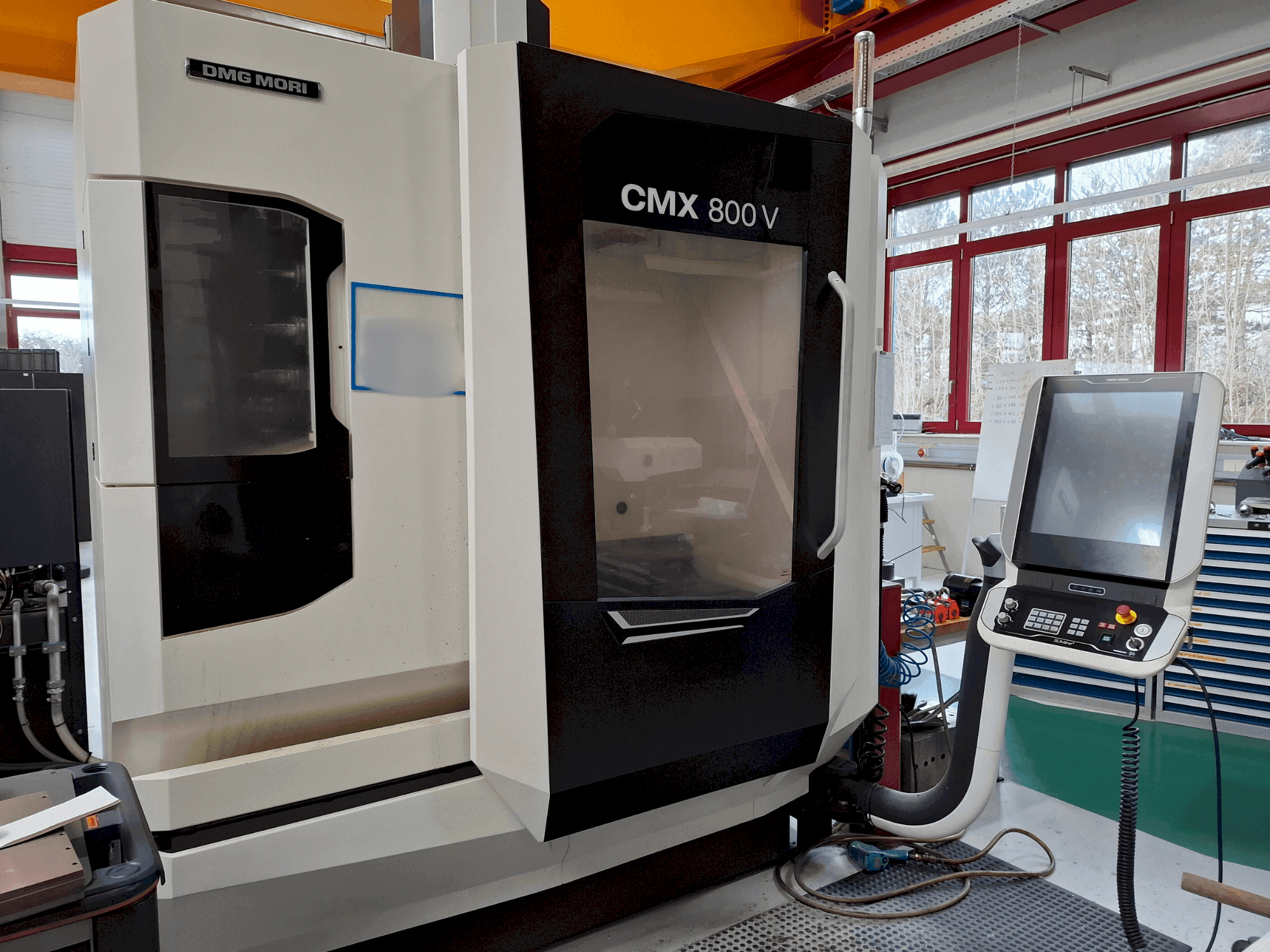

This 3-axis DMG MORI CMX 800V was manufactured in 2019, offering advanced capabilities for precise vertical machining. Ideal for complex geometries and multi-sided machining, this machine represents a significant asset for enhancing production efficiency. Consider the opportunity to buy this DMG MORI CMX 800V vertical machining centre. Contact us for more information about this machine.
Overview
- brand: DMG MORI
- year: 2019
- MODEL: CMX 800V
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - DMG MORI CMX 800V
Main drive
- Spindle speed range: 12000 1/MIN
- Main motor power: Max. drive power 40% duty cycle: 13 kW; Rated power 100%: 9 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 800 mm
- X-AXIS Feed Force: 20000 mm/min
- X-AXIS Rapid traverse: 30 m/min
- Y-AXIS Movement: 560 mm
- Y-AXIS Feed Force: 20000 mm/min
- Y-AXIS Rapid traverse: 30 m/min
- Z-AXIS Movement: 510 mm
- Z-AXIS Feed Force: 20000 mm/min
- Z-AXIS Rapid traverse: 30 m/min
Additional Information
- Technical Machine Benefits:
- - Torque: max. Spindle torque 40% duty cycle: 82 nm; rated torque 100%: 54 nm
- - The warm-up time before machining starts for oil distribution includes 30 seconds at a maximum of 500 rpm, followed by a stepwise speed increase to a maximum of 1500 rpm and 3000 rpm for another 30 seconds.
- - The run-in time after more than 6 months of standstill includes 5 minutes at a maximum of 2000 rpm, followed by a stepwise speed increase to a maximum of 4000 rpm and 6000 rpm for another 5 minutes.
- - Tool clamping force sk40/bt40: 10 kn
- - Tool clamping force cat40: 9 kn
- - Ac servo motors for x, y, z axes
- - Resolution: x, y, z axes: 6 μm
- - Positioning uncertainty: p (according to iso 13041-4): x, y, z: 6 μm
- - Input precision (control): x, y, z axes: 1 μm
- - Setup mode (mode 2): x, y, z axes: 20-2000 mm/min a, c axes: 2. 6 rpm
- Qualitative Machine Benefits:
- - Setup mode (mode 3): x, y, z axes: 20-5000 mm/min a, c axes: 6. 6 rpm
- - Machine still under power // Table 1100 x 560 mm/ Rapid traverse of linear axes 30 m/min/ Speed range 20 to 12,000 rpm/ AC main drive 13/9 kW (40/100% duty cycle)/ SK 40 tool holder according to DIN 69871/ Tool clamping according to DIN 69872/ Tool magazine for 30 tools with double gripper/ Coolant/air blast switchover/ external via M-function/ Chip tray/ DMG MORI SLIMline Multi-Touch Control (19" / HEIDENHAIN TNC 620)/ Production Package 3/ Option includes: Internal coolant supply 40 bar/ Paper belt filter with tank capacity: 6001/ Chip conveyor (scraper belt) Tank capacity: 220 l (left)/ Bed and ATC (Automatic Tool Changer) flushing via M-function/ Coolant spray gun/ External electronic handwheel/ Automatic cabin roof (M-function)/ 4-color signal lamp/ Note: We recommend combining it with the "Oil mist separator" option./ We recommend combining it with the "RotoClear" option./ Options for the main drive: WZA SK40/ DIN 69871/ Blow air through the spindle center can be activated via M-function with a low proportional oil rate./ Oil and emulsion mist separator (only available with cabin roof option!)/ Note: Option only available for machines with cabin roof./ Direct X, Y, 2 position measuring system including air purge for measuring systems/ HEIDENHAIN length gauge for workpiece measurement/ Option includes: TS 460 length gauge/ Signal transmission/ Measuring cycles/ Calibration ring/ Carrying case
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
