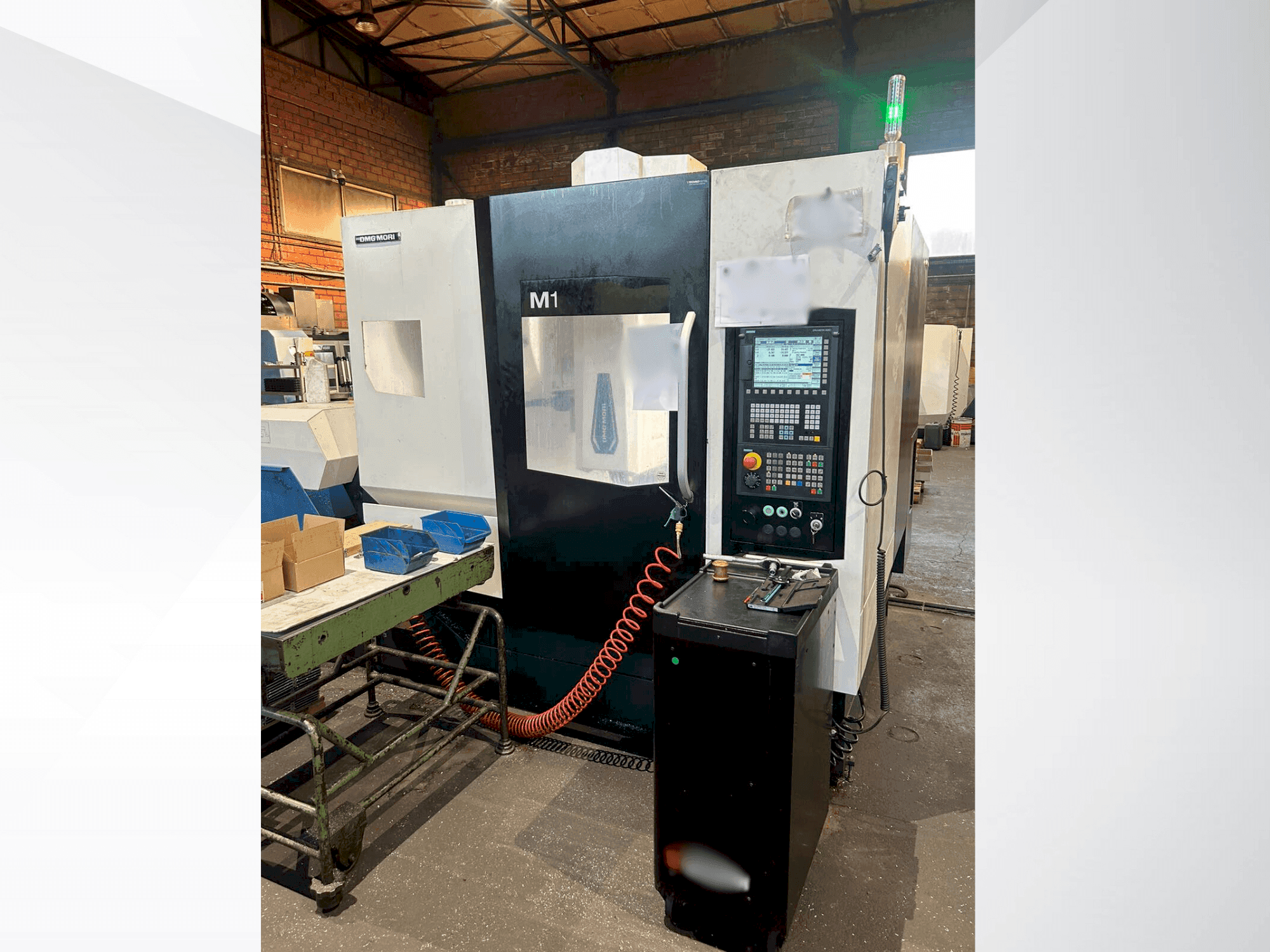

Front view of DMG MORI M1 PRO  machine

DMG MORI - M1 PROGR-MIL-DMG-2021-00004

48,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis DMG MORI M1 PRO vertical machining center was manufactured in 2021. It features a robust SK40 spindle with speeds up to 12,000 rpm and a torque of 83/57 Nm. Equipped with a 24-slot tool magazine, rapid feed rates reach 24 m/min across X/Y/Z axes. The machine includes a high-pressure coolant system and a chip conveyor, enhancing productivity and maintenance. Ideal for precision machining, buy this DMG MORI M1 PRO vertical machining center. Contact us for more information.

Overview

  • brand: DMG MORI
  • year: 2021
  • MODEL: M1 PRO
  • application type: Milling
  • Location: Greece
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - DMG MORI M1 PRO

Control Unit

  • Model: C-B3096F
  • Brand: SIEMENS

Main drive

  • Spindle speed range: 20 - 12,000 1/MIN
  • Spindle motor power: 83/57 Nm (40/100% DC)
  • Tool taper: SK40 DIN 69871
  • Main motor power: 13/9 kW (40/100% DC)

Movement

  • X-AXIS Movement: 550 mm
  • X-AXIS Working Feed: 24 m/min
  • Y-AXIS Movement: 550 mm
  • Y-AXIS Working Feed: 24 m/min
  • Z-AXIS Movement: 510 mm
  • Z-AXIS Working Feed: 24 m/min

Table

  • Outer length: 850 mm
  • Outer width: 650 mm

Tools

  • Slots in storage: 24 places with double gripper

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Mechanical Preparation for Oil-Mist Extractor Unit (Opening Diameter: D150 mm)
    • - Renishaw Touch Probe-Kit
    • - Spray Gun
    • - Cabin Roof
    • - Real-time simulation
    • - Measuring cycles
    • - DMG MORI IoTconnector and NETservice
    • - Machine 3D Model in STEP Format
    • - External Electronic Handwheel (C-H3025F)
    • - ShopMill

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Internal coolant supply: 20 bar
        • - Bed flushing: via m-function
        • - Torque: 83 nm (40% dc) 57 nm (100% dc)
        • - Tool clamping force: sk40: 10 kn (+2/-1 kn)
        • - Tank capacity: 200 l
        • - 10,000 spindle hours
      • Qualitative Machine Benefits:
        • - Display: 10. 4" with ascii keyboard
        • - Job shop package for siemens 828d
        • - Signal lamp: 4 colours
        • - Screen text language: german/english
        • - Chip conveyor scraper type chip conveyor
        • - 20 bar pump installed on the chip conveyor

      Extra information

      • - Machine still under power.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
