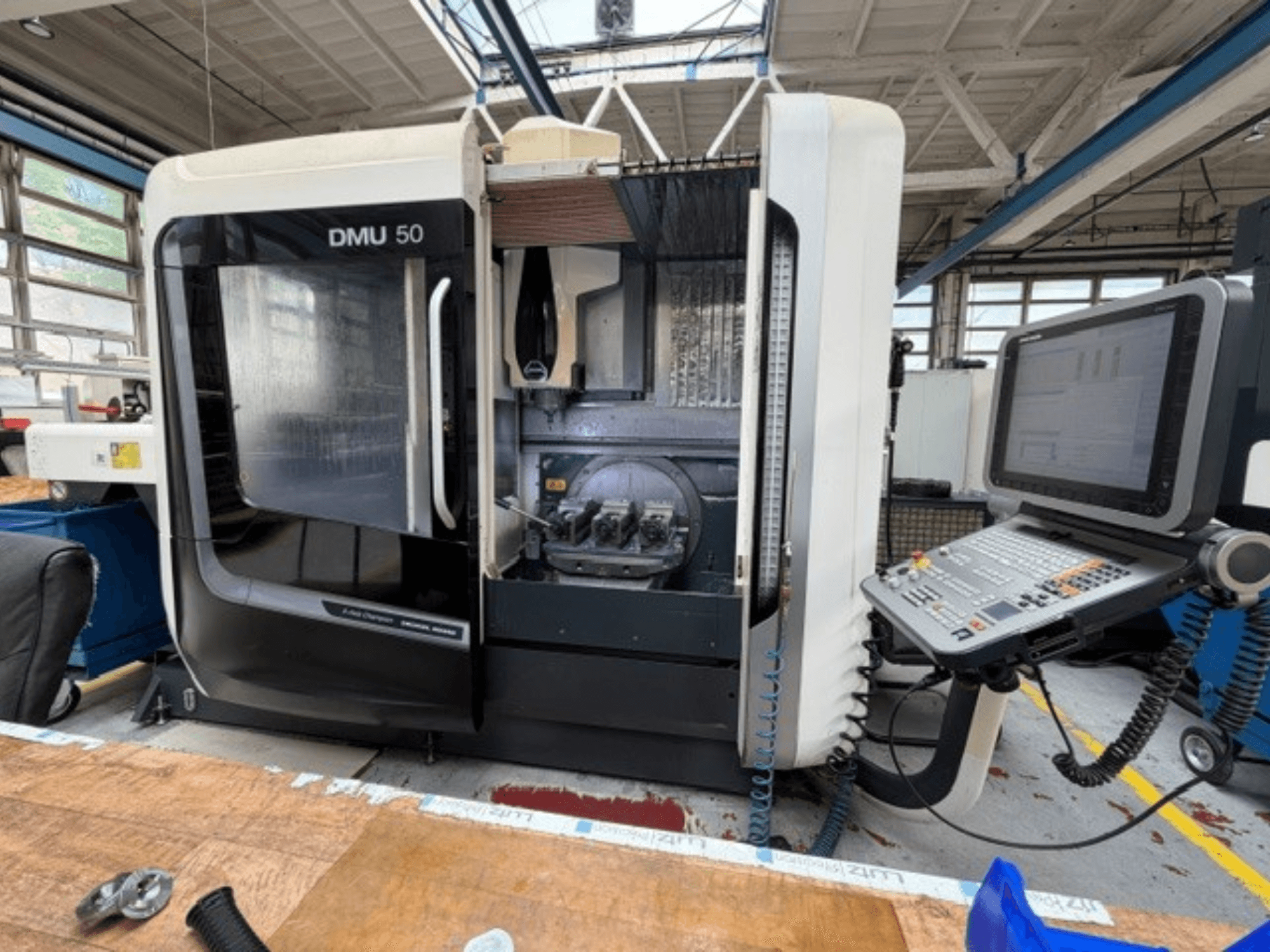

This 5-axis DMG MORI DMU 50 3rd gen was manufactured in 2017. It features impressive axis travels of 650 x 520 x 475 mm and a maximum spindle speed of 15,000 rpm. The machine includes a tool magazine capacity of 60 positions and a robust table diameter of 630 mm. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMU 50 3rd gen vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2017
- MODEL: DMU 50 3rd gen
- application type: Milling
- Location: Slovakia
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMU 50 3rd gen
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640
Dimensions
- Machine Height: 2755 mm
- Machine Length: 3765 mm
- Machine Weight: 4650 kg
- Machine Width: 3565 mm
- Table Load: 300 kg
Movement
- Number of Axes: 5
- X-axis Travel: 650 mm
- Y-axis Travel: 520 mm
- Z-axis Travel: 475 mm
Technical Specification
- Spindle Power: 32 kW
- Spindle Speed: 15000 RPM
- Taper Size: SK 40
- Tool Stations: 60
Additional Information
B-axis travel: -35° / +110°
C-axis travel: ±360°
Table diameter: 630 mm
Machine working footprint: approx. 7.0 x 5.75 x 2.76 m
Transport dimensions (L x W x H) – Machine: 3.765 x 3.565 x 2.755 m
Operating hours: 40,000 h (power on) / 17,700 h (spindle cutting time)
Additional equipment
Heidenhain TS 649 tool probe
Blum laser tool measurement system
Vises
Chip conveyor (transport dimensions: 3.2 x 1.396 x 1.29 m)
Internal cooling system/unit (transport dimensions: 1.525 x 1.205 x 1.6 m)
