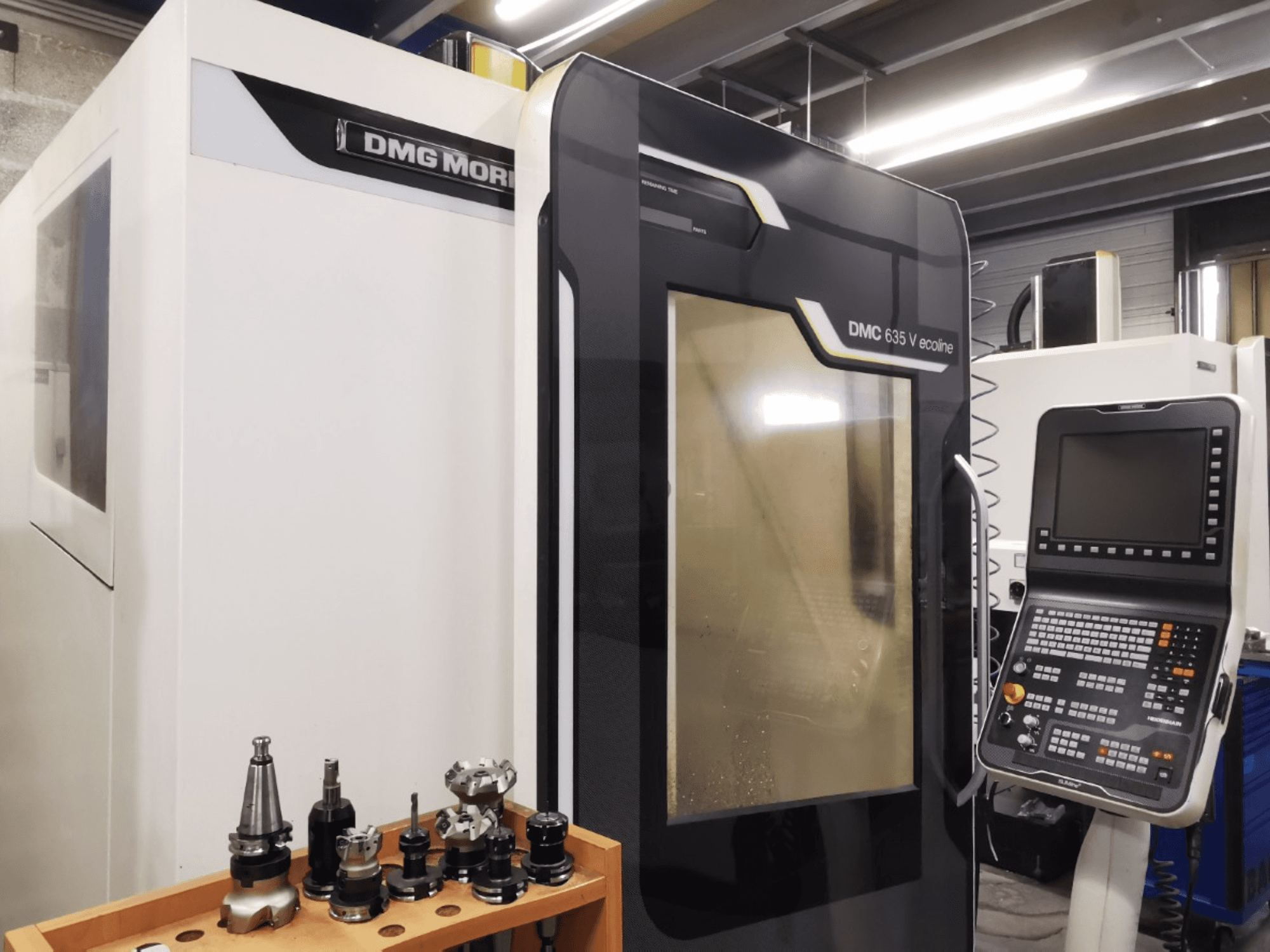

DMG MORI - DMC 635 V ecolineCH-MIL-DMG-2014-00001

- Control: HEIDENHAIN TNC 620 (MC 7420D / TE 7150 keyboard / SLIMline panel)

- Number of Axes: 3 (X, Y, Z)

- X-Axis Travel: 635 mm

- Y-Axis Travel: 510 mm

- Z-Axis Travel: 460 mm

- Table Clamping Surface: 790 x 560 mm

- Max. Table Load (Center): 600 kg

- Table T-Slots: 4 / 14H12, distance 100 mm (1 reference slot 14H7)

- Table Height from Floor: 720 mm

- Spindle Speed Range: 20 - 12,000 rpm (1/min)

- Spindle Drive Power (40% ED / 100% ED): 13 kW / 9 kW

- Spindle Torque (40% ED / 100% ED): 83 Nm / 57 Nm

- Tool Taper / Interface: SK40 (DIN 69871 / ISO 7388/2 Type A or DIN 69872 Form A/B)

- Tool Clamping Force: 8 kN

- Tool Magazine Capacity: 30 stations

- Max. Tool Diameter (Adjacent Empty / Full): 130 mm / 80 mm

- Max. Tool Length: 300 mm

- Max. Tool Weight: 6 kg (Max. total magazine tool load: 90 kg)

- Rapid Traverse (X / Y / Z): 30 m/min

- Feed Rate (X / Y / Z): Continuously programmable up to 20,000 mm/min

- Positioning Resolution / Uncertainty: 1 µm / 16 µm (VDI/DGQ 3441)

- Coolant Tank Capacity: ~120 l

- Machine Weight: ~3,900 kg (3,950 kg with 30-tool magazine)

- Apparent Power: 17 kVA

- Nominal Line Current (In max): 28 A

- Main Fuse: 35 A (Short-circuit breaking capacity: 0.35 kA)

- Power Supply: 400 V AC (3/N/PE), 50/60 Hz

- Control Voltage: 24 V DC / 230 V AC

- Pneumatic Supply Pressure: 5.5 - 8.0 bar (Air consumption: 30 m³/h without blow-off; +20 m³/h continuous)

- Machine Dimensions (W x D x H): 1,880 mm (2,265 mm with coolant tank) x 2,441 mm x 2,742 mm (Transport height min: 2,330 mm)

- Required Floor Space: 4,500 x 4,400 mm
