- ➤ Used DMG MORI ecoMill 1035V For Sale | gindumac.com

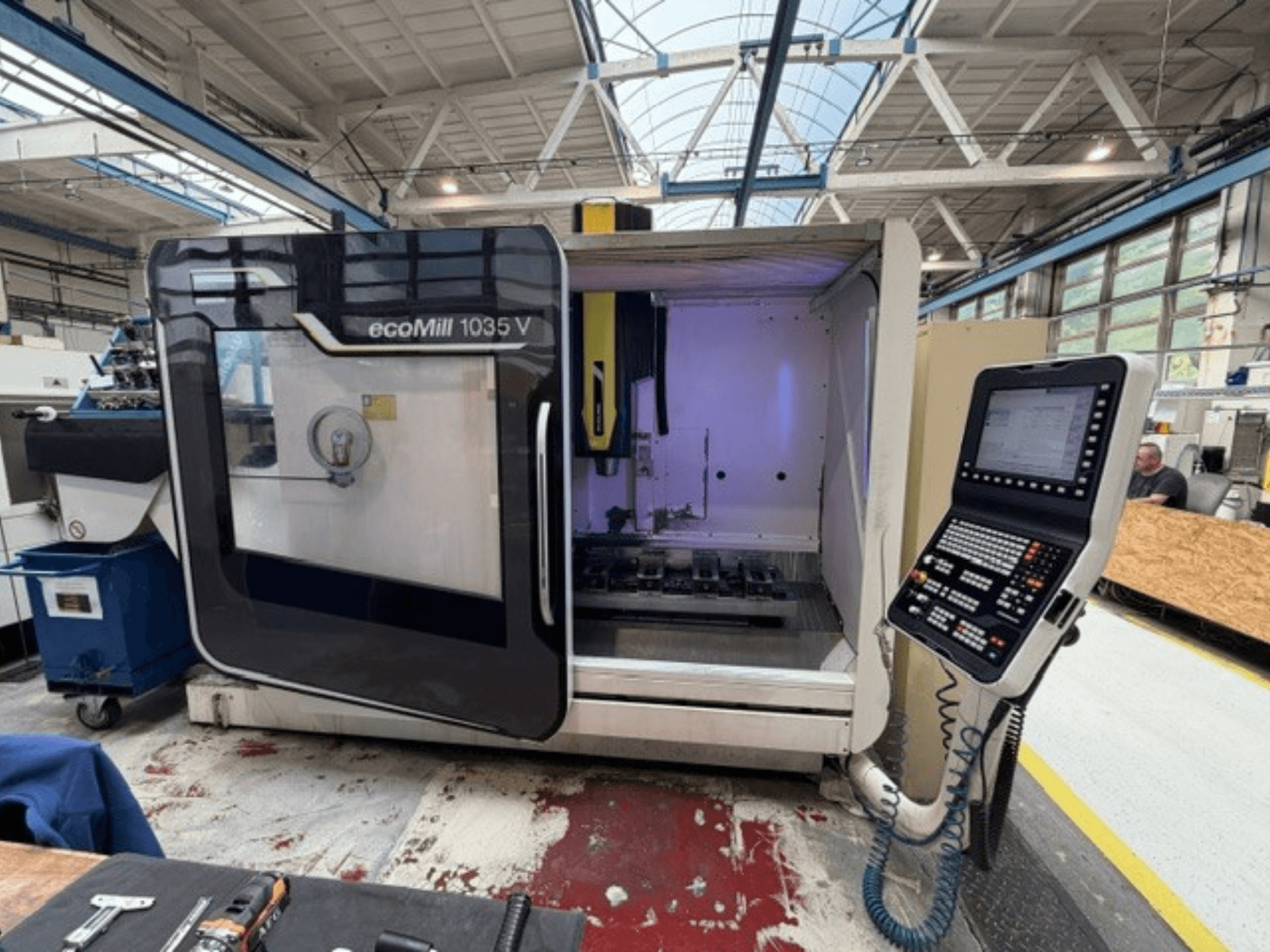

This 3-axis DMG MORI ecoMill 1035V was manufactured in 2015. It features impressive travels of 1035 mm in X, 560 mm in Y, and 510 mm in Z. The machine has a maximum spindle speed of 12,000 rpm and a robust table size of 1200 x 560 mm, with a maximum table load of 1000 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI ecoMill 1035V vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2015
- MODEL: ecoMill 1035V
- application type: Milling
- Location: Slovakia
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI ecoMill 1035V
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: 620
Dimensions
- Machine Height: 2670 mm
- Machine Length: 3370 mm
- Machine Weight: 4650 kg
- Machine Width: 3110 mm
- Table Length: 1200 mm
- Table Load: 1000 kg
- Table Width: 560 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1035 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Power: 17 kW
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
- Tool Stations: 30
Additional Information
Operating hours: 42,000 h (power on) / 17,600 h (spindle cutting)
Table size (L x W): 1200 x 560 mm
Machine working footprint (approx.): 6.3 x 4.55 x 2.808 m
Machine weight (base machine): 4650 kg
Transport dimensions (L x W x H): machine 3.37 x 3.11 x 2.67 m
Notes: New spindle
Additional equipment
Chip conveyor
Weight: 505 kg
Transport dimensions: 3.90 x 0.99 x 1.73 m
Internal cooling unit
Weight: 300 kg
Transport dimensions: 1.835 x 1.10 x 1.326 m
Renishaw probe
OTS tool measurement
Vises (approx. 150 kg total)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
