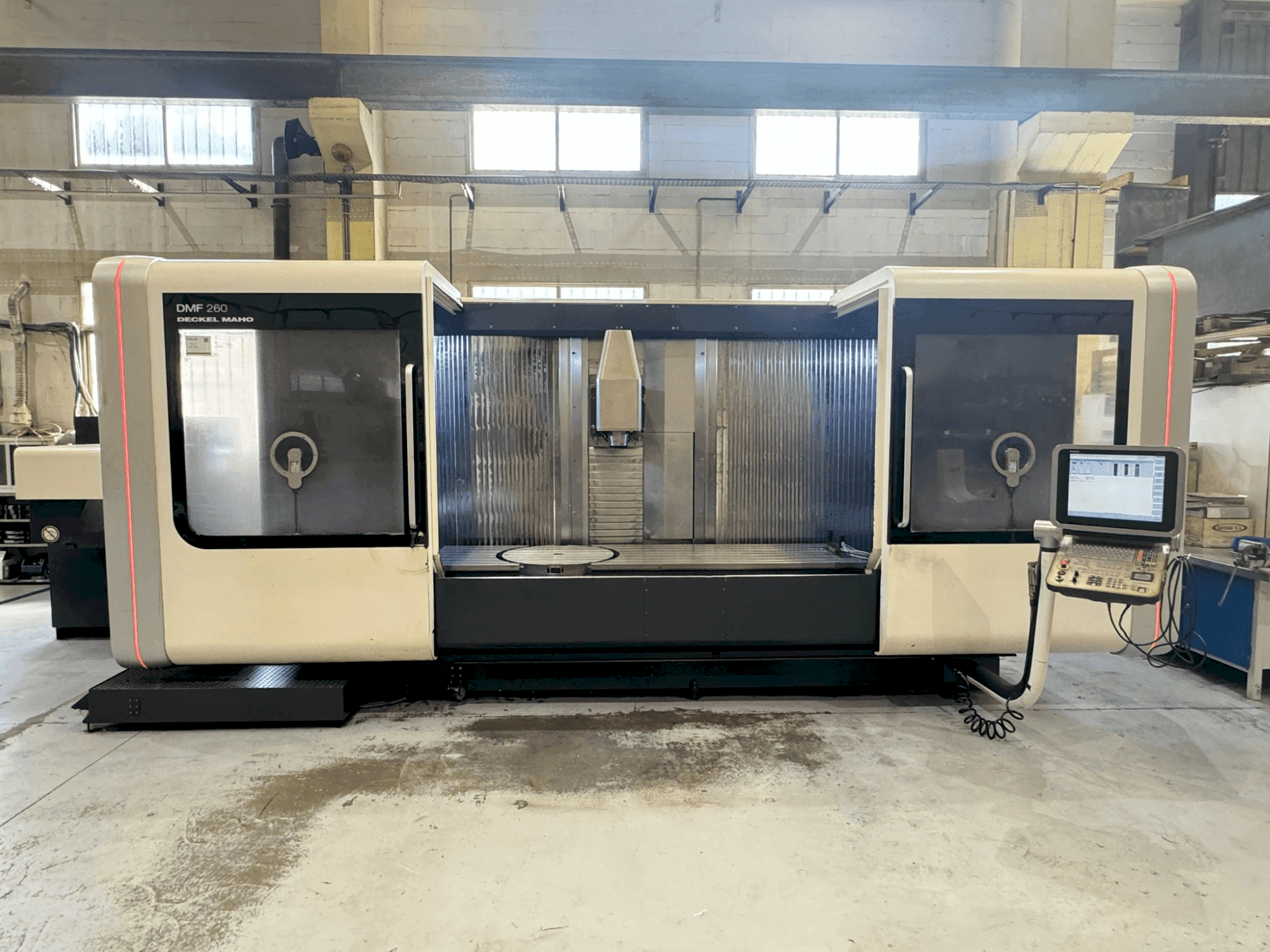

Front view of DMG MORI DMF 260/7 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI DMF 260/7

Photo Gallery

DMG MORI - DMF 260/7ES-MIL-DMG-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI DMF 260/7 For Sale | gindumac.com

This 5-axis DMG MORI DMF 260/7 vertical machining centre was manufactured in 2012. It features a HEIDENHAIN iTNC 530 control, a fixed table surface of 2,900 x 700 mm, and a rotary table Ø 730 mm with 360° rotation. The machine supports a maximum weight of 2,150 kg on the fixed table and 560 kg on the rotary table. It offers a longitudinal travel of 2,600 mm, transversal travel of 700 mm, and vertical travel of 700 mm. For more information about this vertical machining centre, please reach out to us.

Overview

brand: DMG MORI
year: 2012
MODEL: DMF 260/7
production hours: 10175
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMF 260/7

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Weight: 16070 kg

Movement

B-axis Max: 110°
C-axis: 360°
Number of Axes: 5
X-axis Travel: 2600 mm
Y-axis Travel: 700 mm
Z-axis Travel: 700 mm

Technical Specification

Max. Tool Weight: 5 kg
Spindle Power: 23.5 kW
Spindle Speed: 800 RPM

Additional Information

Additional equipment

Rotary table Ø 730 mm (Axis C) // Rotary encoder head
Detachable 2-zone working separator
Direct measurement system // Tool measurement LAER BLUM
Spindle cooling / Col. 1
Longitudinal chip conveyor
2 front windows
Leveling pilots
Portable handwheel
DMG 3D quickSET (for checking and dynamic correction of the machine tool accuracy in 5 axes)
DMG Mori PP60 PowerProbe 50 optical probe (Renishaw OMP60)

Machine Benefits

Technical Machine Benefits

Maximum weight on fixed table: 2,150 kg
Maximum weight on integrated rotary table: 560 kg
Tool change time: 7. 6 s

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
