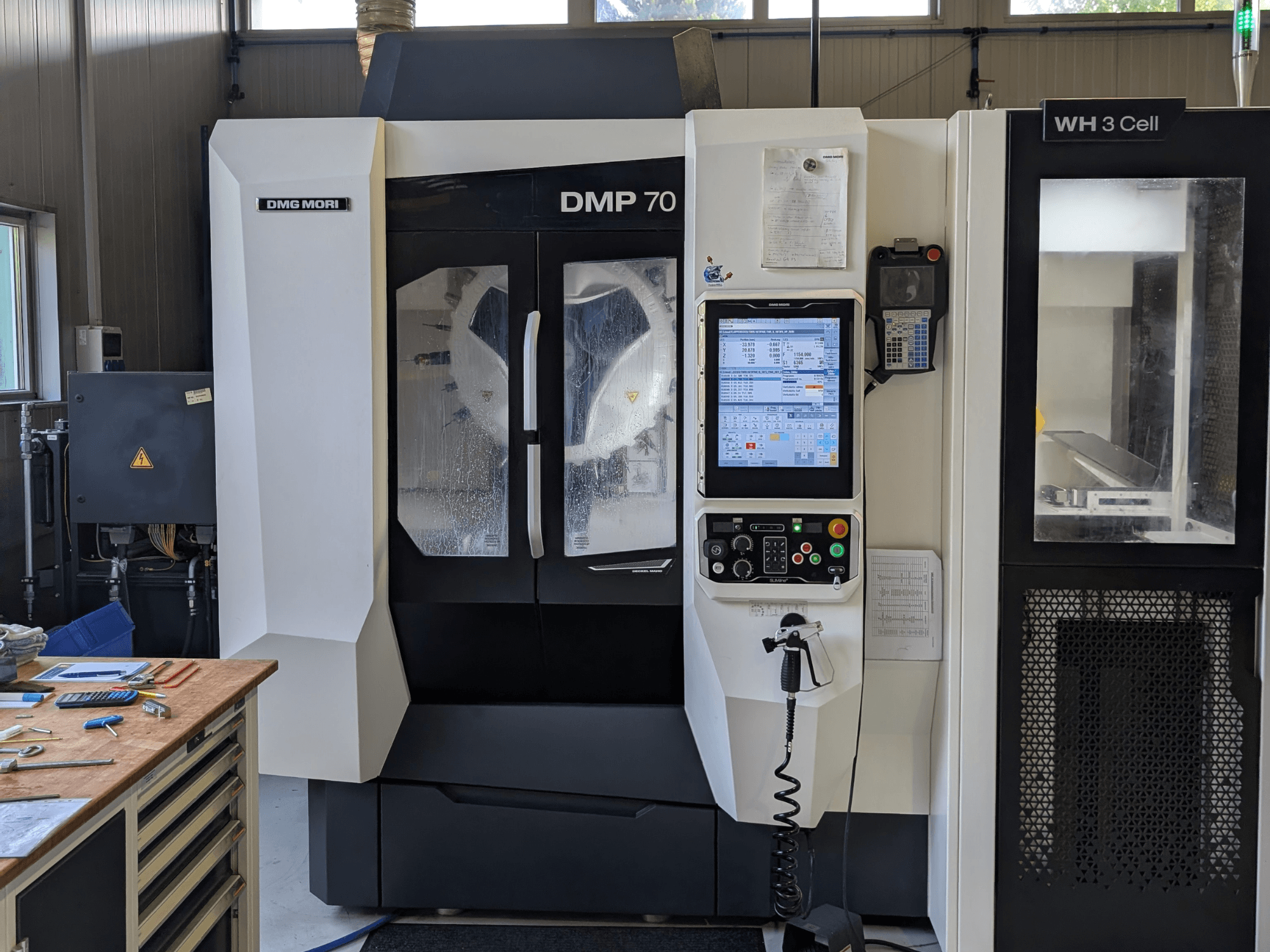

DMG MORI - DMP 70DE-MIL-DMG-2019-00005

- Phase: L1/L2/L3/N/PE

- Power Consumption: 30 kVA

- Maximum Current (A In max): 43.5 A

- Rated Current: 50 A

- Short-Circuit Current (V max): 5 kA / 440 V max.

- Voltage: 400 V ±10%

- Frequency: 50 Hz

- Control Voltage AC: 230 V

- Control Voltage DC: 24 V

- Control: 3D Control Siemens 840D SL Operate

- Tool Taper: BBT30

- Work Table: Integrated NC rotary tilt table, 5-axis simultaneous operation

- Swivel Range A-Axis: -120° / +100°

- C-Axis Operation: Continuous (Endless)

- Maximum Load C-Axis: 100 kg

- Table Diameter C-Axis: Ø290 mm

- Drives: Torque drives including direct path measurement in A- and C-axis

- Software Packages: Sinumerik MDynamics 5-Axis, 3D data model for simulation

- Table Options: Clamping pneumatics (1-circuit)

- Coolant & Chip Management: Chip conveyor, Production package belt filter with 40 bar internal coolant supply (IKZ), Blow air through spindle center, External blow air, Oil and emulsion mist separator system

- Measuring & Monitoring: RENISHAW 3D touch probe kit, Tool breakage monitoring and in-machine measurement, Preparation for 3D quickSET

- General Options: Operating mode 3, CE conformity

- Automation Interface: Automation interface for external automation on the right

- Automation System: DMG MORI WH 3 Cell

- Robotic Arm: Fanuc LR Mate 200iD/7L yellow 6-axis robot

- Robot Gripper: Double gripper PGN64

- Automation Components: 10 DMG drawers, NIO chute, Alignment station, Measuring drawer, Raw material inlay system, Gripper set, Accessories

- Machine Operating Hours (from control screen): Machine runtime: 22,918:34 h; Program runtime: 20,920:40 h; Spindle runtime: 18,815:51 h
