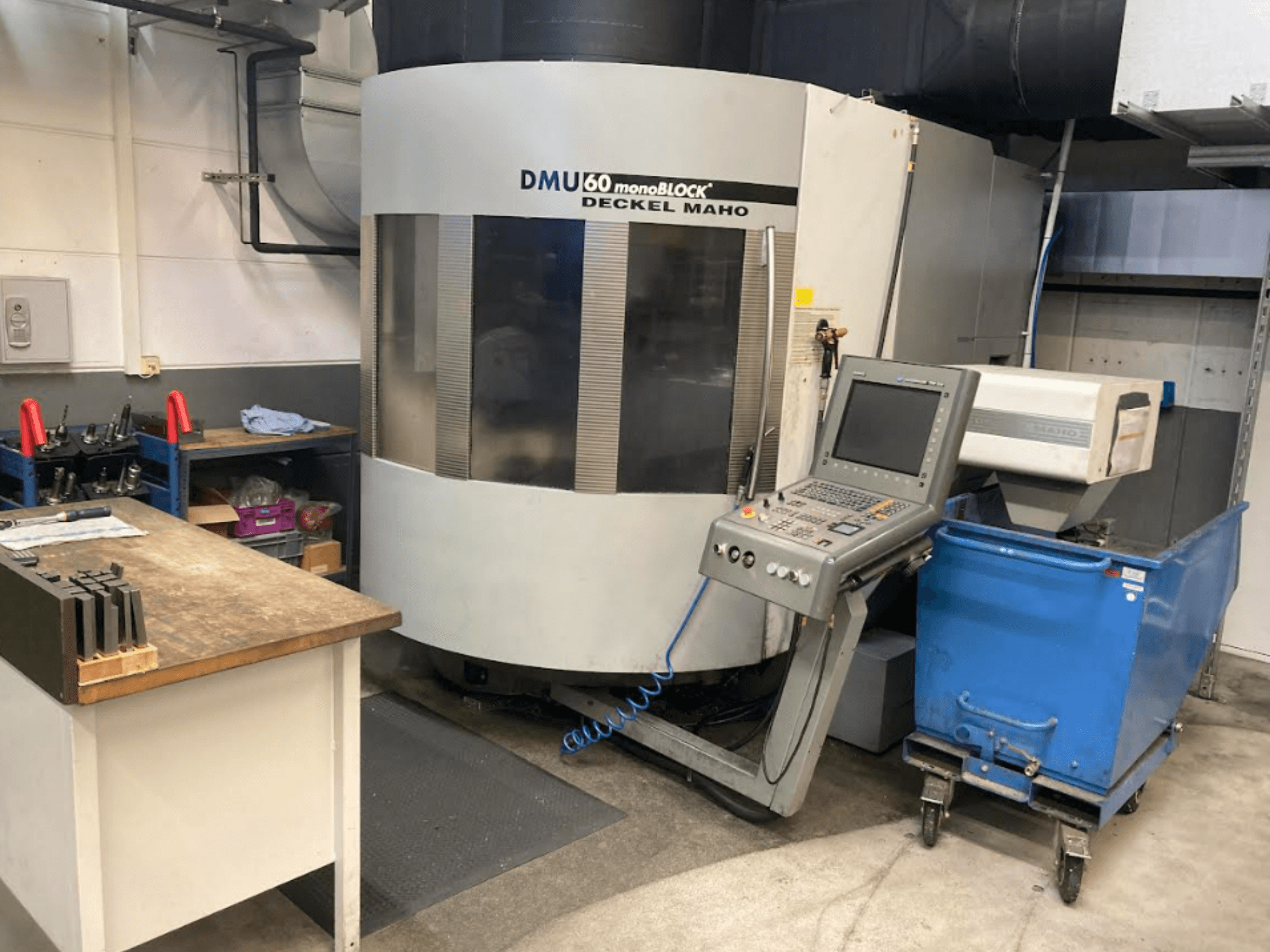

DMG MORI - DMU 60 MonoblockDE-MIL-DMG-2016-00010

• Working area / travel:

  • Modification: X-axis travel reduced by 100 mm (effective X travel 630 mm)

• Main drive & spindle:

  • Motor spindle SK40 with active cooling

  • Power: 15 kW (40% duty) / 10 kW (100% continuous)

• Tooling system:

  • Tool holder: SK40 (DIN 69871)

  • Tool clamping: DIN 69872

  • Tool changer: Pick-up system

  • Magazine: 24 pockets (SK40)

• Work table:

  • Integrated NC rotary table in rigid table

  • Rotary table Ø 600 mm; total table 1,000 x 600 mm

  • T-slots: 1x 14 H7 (alignment, centered) + 8x 14 H12 (clamping)

  • T-slot spacing: 63 mm

  • Permissible load: 500 kg

• Milling head:

  • Controlled NC-swivel B-axis with hydraulic clamping

  • Spindle offset: 100 mm

  • Swivel range: -120° to +30°

• Control system:

  • Electronic handwheel iTNC 530

  • Control language: German

Additional equipment

• Workpiece measurement: Heidenhain TS 640 infrared probe (SK40)

• Tool measurement: Blum laser (in-machine vertical tool length and diameter)

• Chip conveyor

• Flushing gun with pump (1 bar / 40 l/min theoretical capacity)

• Networking: DMG Netservice Basic Package Euro ISDN (Netservice Box, Cisco Euro ISDN Router, license)
