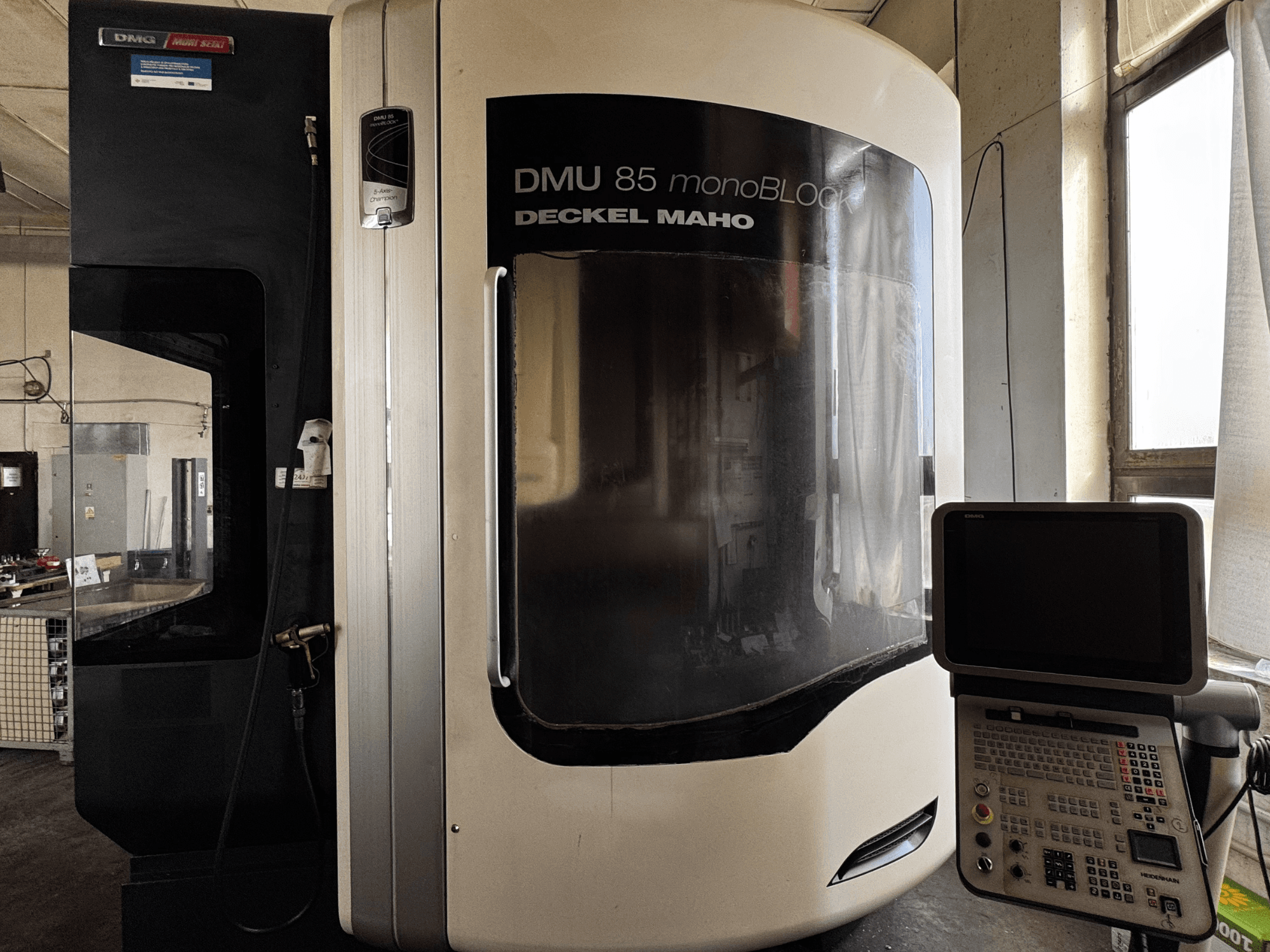

DMG MORI DMU 85 monoBLOCK vertical machining center, front view with control panel and large viewing window.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI DMU 85 monoBLOCK

Photo Gallery

DMG MORI - DMU 85 monoBLOCKCZ-MIL-DMG-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI DMU 85 monoBLOCK For Sale | gindumac.com

This 5-axis DMG MORI DMU 85 monoBLOCK was manufactured in 2013. It features an impressive X-axis travel of 935 mm, Y-axis travel of 850 mm, and Z-axis travel of 650 mm. The machine includes a robust table size of 1,040 mm and a maximum table load of 1,500 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMU 85 monoBLOCK vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DMG MORI
year: 2013
MODEL: DMU 85 monoBLOCK
production hours: 31460
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMU 85 monoBLOCK

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530 HSCI

Dimensions

Table Load: 1500 kg

Movement

Number of Axes: 5
X-axis Travel: 935 mm
Y-axis Travel: 850 mm
Z-axis Travel: 650 mm

Technical Specification

Spindle Speed: 18000 RPM
Taper Size: HSK 63
Tool Stations: 60

Additional Information

Max feedrate: 40,000 mm/min
Table size: Ø 1,040 mm
Through-spindle coolant: 20 bar
Operating mode 4: machining process control (work with open work area door allowed)
Repairs/maintenance:
- C-axis seal replaced just after warranty (improved version)
- Spindle replaced (05/2021)
- Machine measured last year – circular interpolation (Ballbar) within tolerance
Typical use:
- Duralumin machining 80% overall
- 3-axis: 50%
- 5-axis: 40% (up to 10% 5-axis continuous)

Additional equipment

Measuring probe: TS649
Tool probe: Blum Laser
3D quickSET
Electric handwheel
Rinsing gun
Chip conveyor
70-80pcs HSK 63 tool holders (various assemblies) including several end mills, T-mills, 2x sets of KAISER turning heads, JAGER 60,000 rpm electrospindle and more.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
