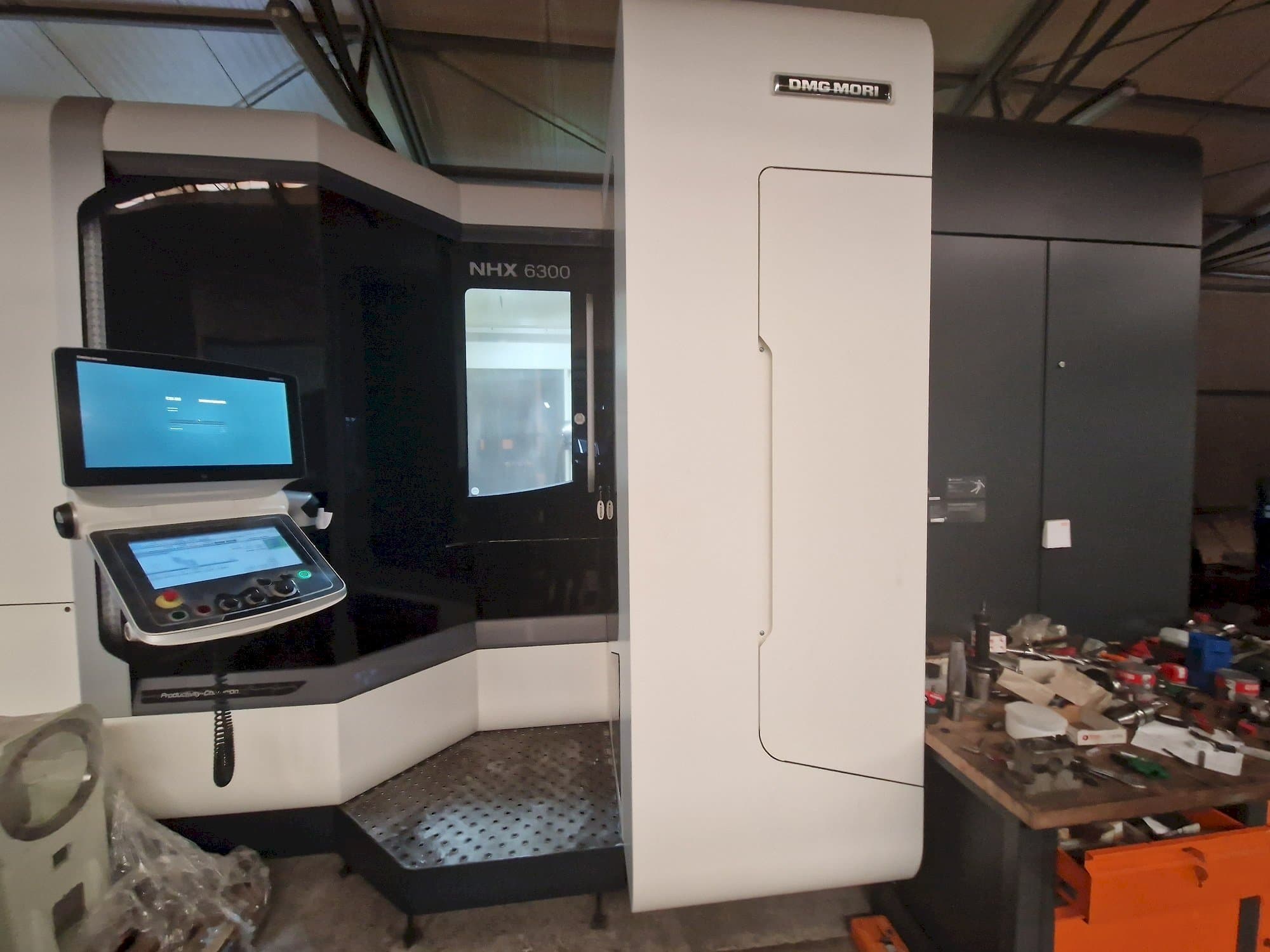

Front view of DMG MORI NHX6300  machine

DMG MORI - NHX6300PL-MIL-DMG-2018-00002

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DMG MORI NHX6300 horizontal machining center was made in the year 2018 in Japan and has 429 hours. It is equipped with a DMG MORI ERGOline, CELOS with FANUC control unit, and has 4 axis. The machine has a spindle speed of 8000 rpm.

Overview

  • brand: DMG MORI
  • year: 2018
  • MODEL: NHX6300
  • production hours: 429
  • application type: Milling
  • Location: Poland
  • machine type: Machining centers (horizontal)
  • availability: Sold
  • control unit brand: DMG MORI

Technical Information - DMG MORI NHX6300

General Data

  • Measurements width: 3930 mm
  • Measurements depth: 5823 mm
  • Measurements height: 3228 mm
  • Machine weight: 18750 kg

Control Unit

  • Brand: DMG MORI
  • Model: ERGOline

Main drive

  • Spindle speed range: 8000 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 1050 mm
  • Y-AXIS Movement: 900 mm
  • Z-AXIS Movement: 1030 mm

Table

  • Outer length: 630 mm
  • Outer width: 630 mm
  • Table load: 1500 kg

Tools

  • Max weight: 30 kg
  • Max tool length: 630 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - 4 cnc axes (x,y,z and b for rotation of the table)
      • - Max workpiece dimensions: - dim. 1050 mm - height: 1300 mm - weight: 1500 kg
      • - Two pallets and rotary pallet exchanger, pallet work surface each: 630 x 630 mm
      • - Pallet changing time: 20 s
      • - Tool storage capacity: 60 tools (ring type)
      • - Tool change time from chip-to-chip: 4. 8 s
    • Qualitative Machine Benefits:
      • - Machine in very good condition, full documentation available, ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
