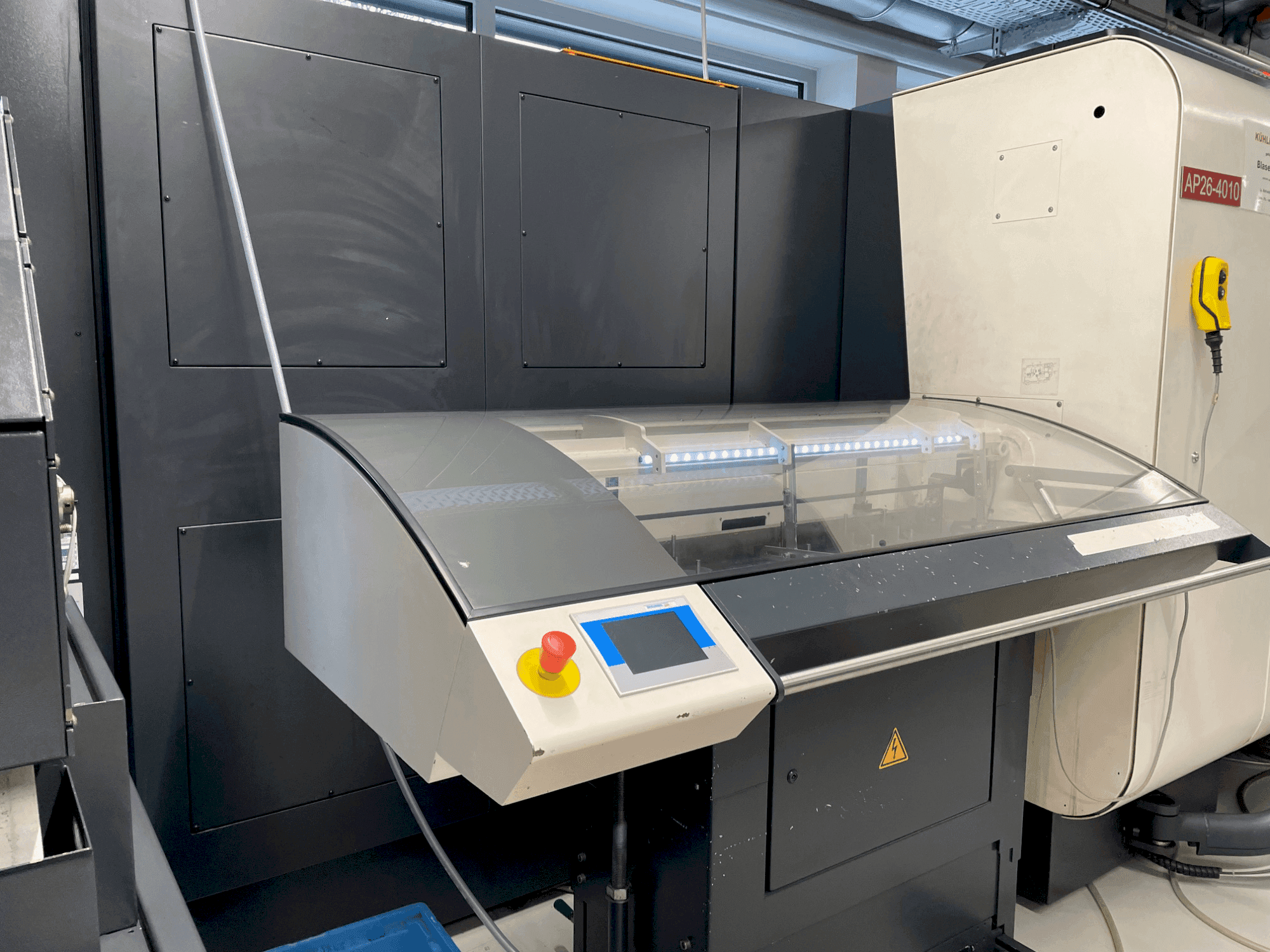

DMG - Sprint 65 3 TAT-TUR-DMG-2015-00001

Name: DMG Sprint 65 3 T
Brand: DMG
SKU: AT-TUR-DMG-2015-00001
Price: 235000 EUR
Availability: InStock

235,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used DMG Sprint 65 3 T - 2015 - Lathe for sale | gindumac.com

This lathe was manufactured in 2015 by DMG, Sprint 65 3 T model. The machine represents a reliable and versatile addition to your production line. If you're interested in buying this DMG Sprint 65 3 T lathe, reach out for further details.

Overview

brand: DMG
year: 2015
MODEL: Sprint 65 3 T
application type: Turning
Location: Austria
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - DMG Sprint 65 3 T

General Data

Measurements width: 6870 MM
Measurements depth: 1660 MM
Measurements height: 2626 MM
Machine weight: 10300 KG

Control Unit

Brand: SIEMENS
Model: 840D-SL

Main drive

Number of spindles: 2
Spindle speed range: 12000 1/MIN
Number of axis: 10

Movement

X-AXIS Movement: 165 mm
X-AXIS Working Feed: 30 m/min
Y-AXIS Movement: +-40 mm
Y-AXIS Working Feed: 30 m/min
Z-AXIS Movement: 300mm
Z-AXIS Working Feed: 40 m/min
V-Axis Movement: 165mm
V-Axis Working Feed: 30 m/mm
U-Axis Movement: +-40 mm
U-Axis Working Feed: 15 m/min
W-Axis Movement: 640 mm
W-Axis Working Feed: 40 m/min
A-AXIS Movement: 640mm
A-AXIS Working Feed: 40 m/min
C-AXIS Movement: +- 40 mm
C-AXIS Working Feed: 15m/min
I-AXIS Movement: 420mm
I-AXIS Working Feed: 40 m/min

Tools

Slots in storage: 12
Type of tool holder: VDI 30

Media

Lubrication tank: 1.8 litres

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chip conveyor: 1800x1300x1500mm, 380kg
- - Maximum bar capacity: 65mm
- - Drawtube bore: 76mm
- - Diameter of collet chuck: 160mm
- - Diameter of centring chuck: 175mm
- - Maximum speed: 5000mm
- - Nominal torque: 150 nm, 16rpm
- - Coolant system: 200 litres

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
