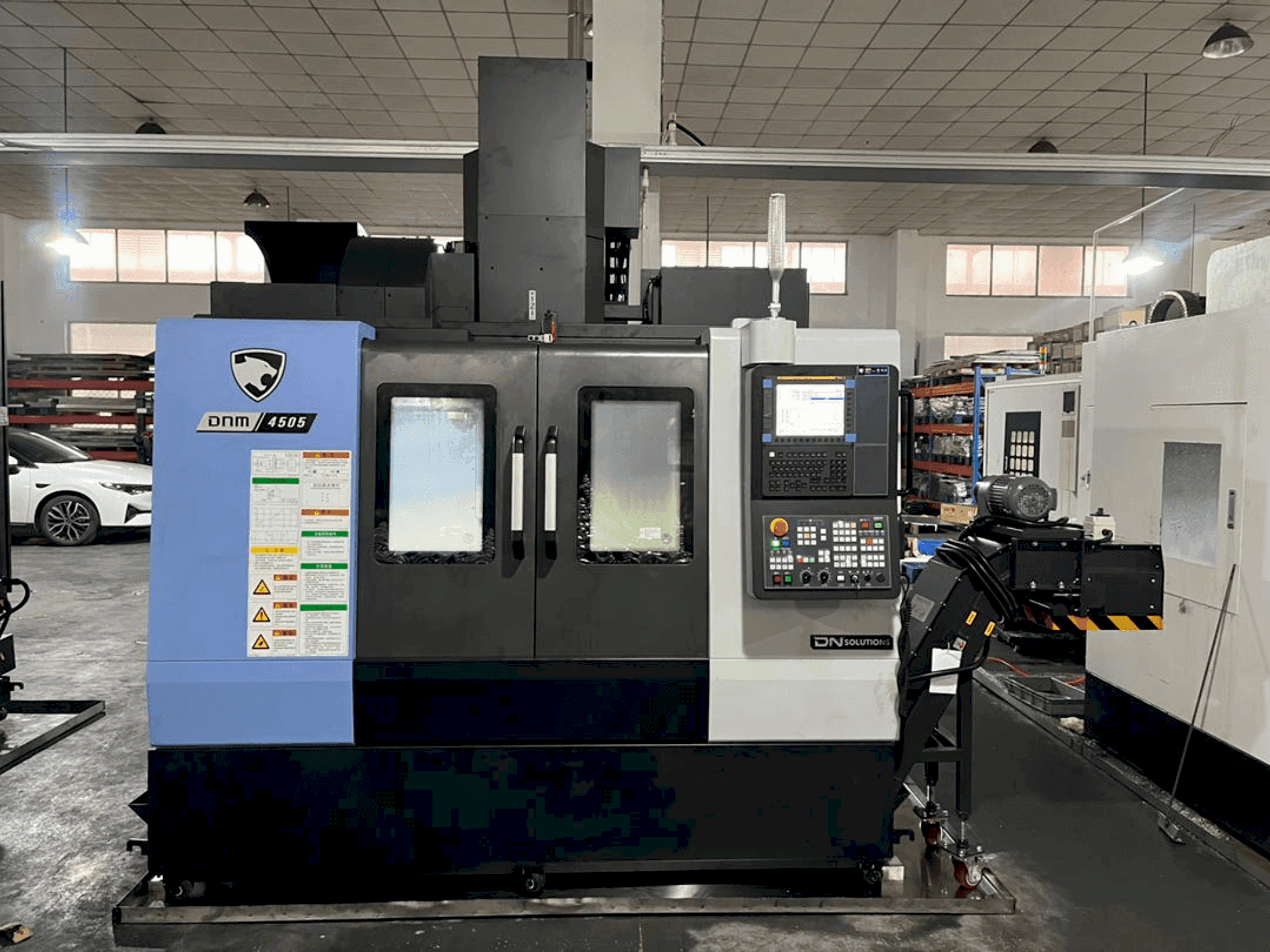

Front view of DOOSAN dnm 4505 (2024)  machine

DOOSAN - dnm 4505SI-MIL-DOO-2024-00003

83,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis DOOSAN dnm 4505 vertical machining center was manufactured in 2024. It features a robust FANUC 0iPLUS control system, a spindle speed up to 12,000 r/min, and a table size of Φ1000 x 450 mm with a loading capacity of 600 kg. The machine also includes a 24-tool capacity ATC, rapid traverse rates of 36/36/30 m/min, and a high spindle motor power of 18.5/11 kW. For more information about this vertical machine center, please reach out to us.

Overview

  • brand: DOOSAN
  • year: 2024
  • MODEL: dnm 4505
  • application type: Milling
  • Location: Slovenia
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - DOOSAN dnm 4505

General Data

  • Measurements width: 2985 mm
  • Measurements depth: 2158 mm
  • Measurements height: 2615 mm
  • Machine weight: 5000 kg

Control Unit

  • Model: 0iPLUS
  • Brand: FANUC

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12000 rpm 1/MIN
  • Spindle motor power: 18.5/11 kW
  • Tool taper: ISO#40 7/24
  • Number of axis: 3

Movement

  • X-AXIS Movement: 800 mm
  • Y-AXIS Movement: 450 mm
  • Z-AXIS Movement: 510 mm

Tools

  • Number of index: 24

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional Equipment

    • - Assembly & Operation Tool
    • - Standard Cooling System // Cooling Box and Chip Tray
    • - Built-in Screw Chip Conveyor
    • - Installation Parts
    • - Full Enclosure Splash Guard
    • - Signal Tower (Red, Yellow, Green)
    • - Work Light
    • - MPG (Manual Pulse Generator)
    • - Safety Door Interlock Device
    • - 10.4" Color Display

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - X, y, z absolute pulse encoder
        • - Fast tool change times (tool-to-tool: 1. 2 s, chip-to-chip: 3. 2 s)
      • Qualitative Machine Benefits:
        • - Robust control with fanuc 0iplus
        • - High precision with absolute pulse encoder

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
