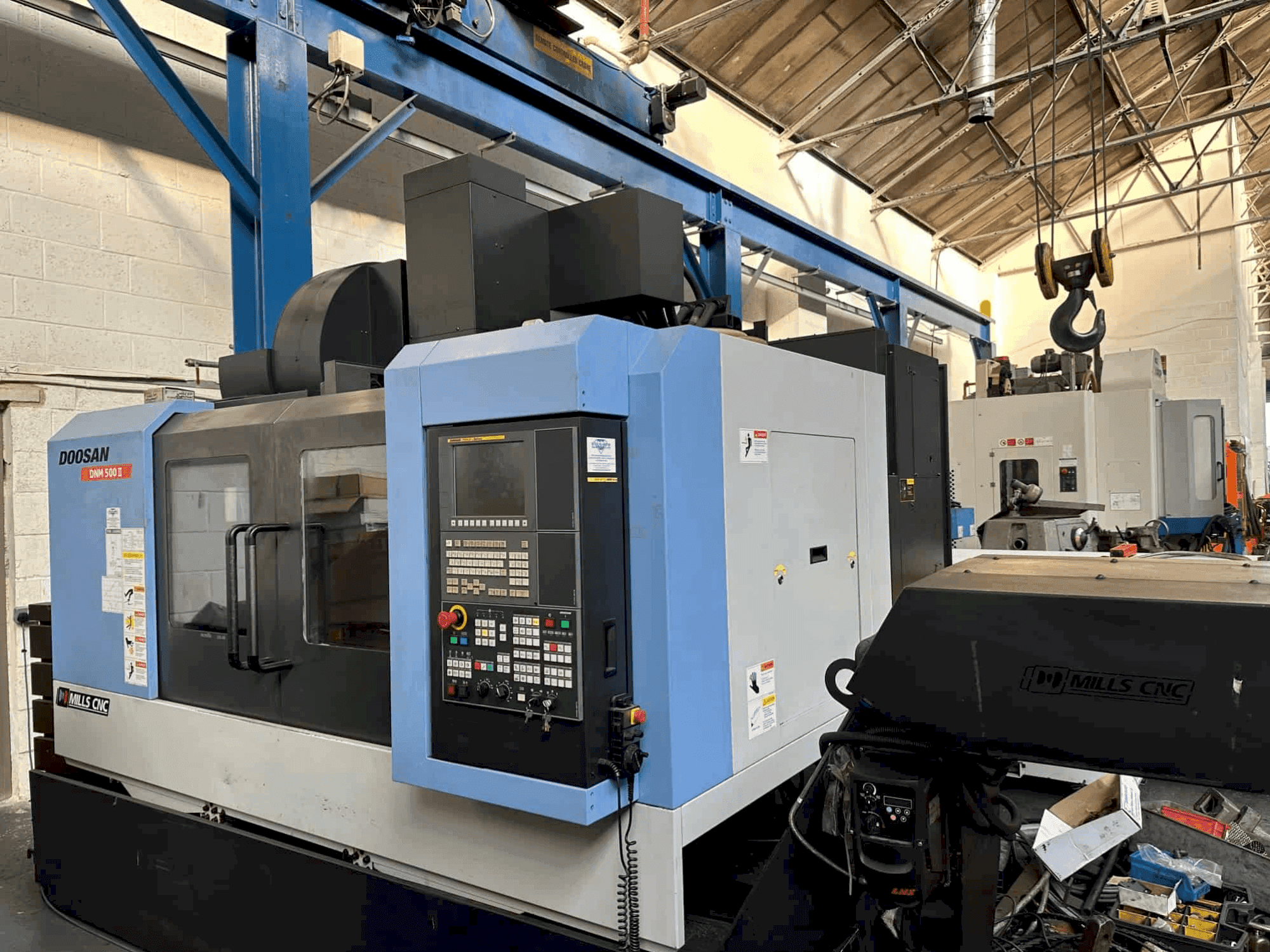

This 3-axis DOOSAN DNM 500 II vertical machining center was manufactured in 2014. Ideal for precision machining, it features a robust design and advanced control systems. If you are looking to get high-quality milling capabilities, consider the DOOSAN DNM 500 II machine we have for sale. Contact us for more information.
Overview
- brand: DOOSAN
- year: 2014
- MODEL: DNM 500 II
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN DNM 500 II
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Depth: 2412 mm
- Machine Height: 3143 mm
- Machine Weight: 6500 kg
Movement
- Number of Axes: 3
Technical Specification
- Spindle Power: 18.5 kW
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Renishaw Touch Probe
- 4th Axis Ready
Machine Benefits
Technical Machine Benefits
- Rapid traverse: x axis: 36 m/min/ y axis: 36 m/min/ z axis: 30 m/min
- Feed range: 1 to 15000 mm/min
- Table length: 1200mm / table width: 540mm / max. Table weight: 800kg
- Max. Spindle torque: 353. 2 n·m
- Spindle nose: mas bt 40
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
