DOOSAN DNM 5700

Photo Gallery

DOOSAN - DNM 5700GB-MIL-DOO-2016-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

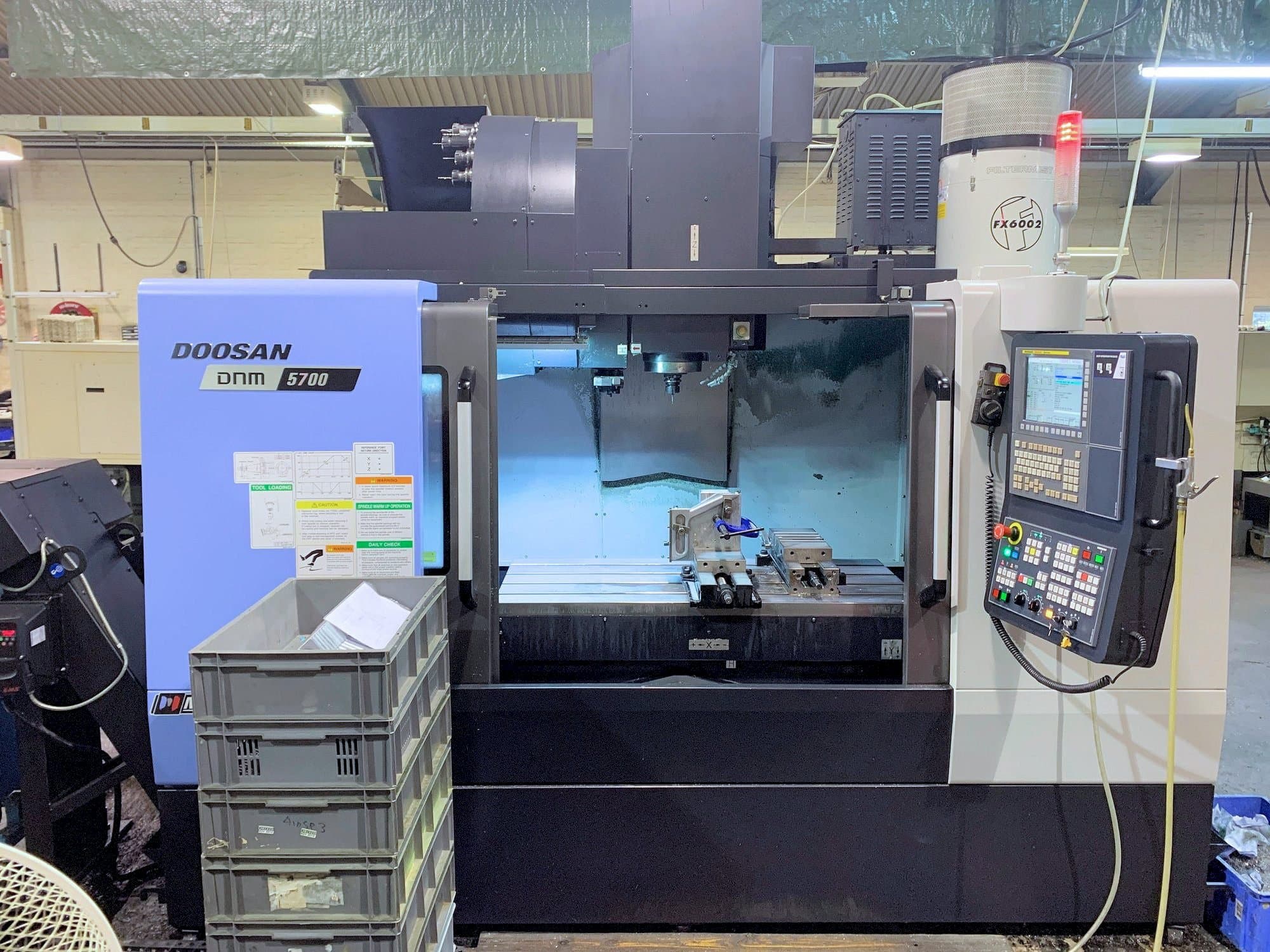

This Doosan DNM 5700 Vertical Machining Center was manufactured in South Korea in the year 2016. It has a record of 6637 power on hours, of which 2564 are running time and 1706 are cutting hours. It is equipped with a DOOSAN-FANUC i Series control unit. This 3 axis machine can work with a spindle speed of 12000 rpm. It comes with a programmable coolant nozzle and a mist extractor. This machine is in good condition.

Overview

brand: DOOSAN
year: 2016
MODEL: DNM 5700
production hours: 6637
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN DNM 5700

Control Unit

Control Brand: FANUC
Control Model: i Series

Dimensions

Machine Depth: 2221 mm
Machine Height: 2985 mm
Machine Weight: 6500 kg
Table Length: 1300 mm
Table Width: 570 mm

Movement

Number of Axes: 3
X-axis Travel: 1050 mm
Y-axis Travel: 570 mm
Z-axis Travel: 510 mm

Technical Specification

Number of Tools: 30
Spindle Power: 18.5 kW
Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Good condition

Technical Machine Benefits

Min-max height under spindle 150-660 mm
Through spindle coolant
Programmable coolant nozzle
Mist extractor
Coolant
Swarf conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
