➤ Used DOOSAN DNM 650 II For Sale | gindumac.com

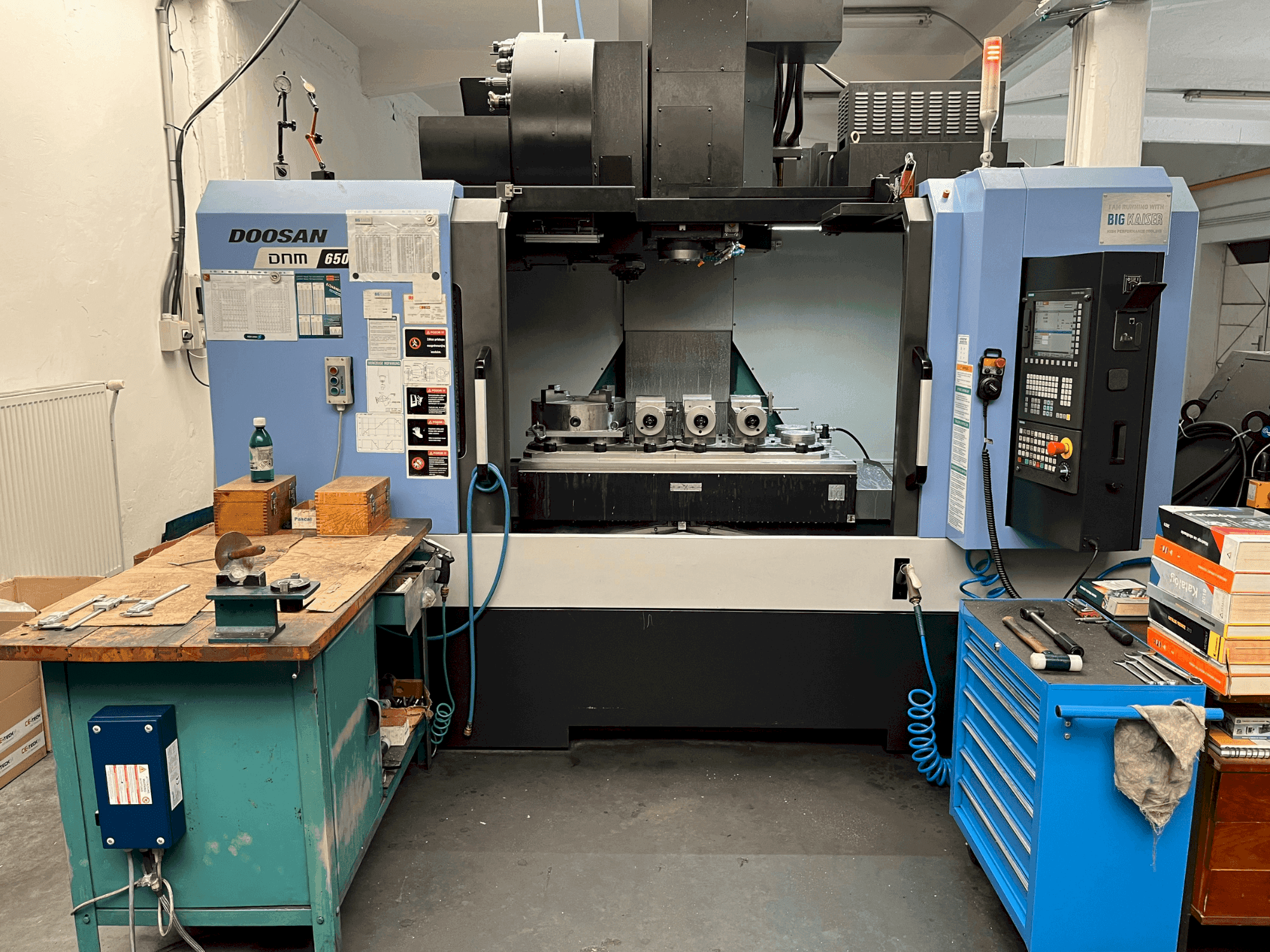

This 3-axis DOOSAN DNM 650 II vertical machining center was manufactured in 2015. It features a Siemens 828D control, a spacious 1300 x 670mm table, and a robust 18.5 kW spindle motor achieving speeds up to 12000rpm. The machine includes a 30-position tool changer and SK40 tool taper, enhanced by a RENISHAW probe and internal cooling capabilities. If you are looking to get high-quality milling capabilities consider the DOOSAN DNM 650 II machine we have for sale. Contact us for more information.

Overview

brand: DOOSAN
year: 2015
MODEL: DNM 650 II
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DOOSAN DNM 650 II

General Data

Measurements width: 2720 mm
Measurements depth: 4345 mm
Measurements height: 2815 mm
Machine weight: 8500 kg

Control Unit

Brand: SIEMENS
Model: 828D

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 18.5 kW
Tool taper: SK40
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
X-AXIS Rapid traverse: 36 m/minute
Y-AXIS Movement: 670 mm
Y-AXIS Rapid traverse: 36 m/minute
Z-AXIS Movement: 625 mm
Z-AXIS Rapid traverse: 30 m/minute

Workpiece

Workpiece weight: 1000 kg

Additional Equipment

- RENISHAW tool and workpiece probe
- Internal cooling through the spindle: 12 Bar
- External spindle cooling with air and cutting fluid
- Belt chip conveyor
- Rinsing gun
- Coolant tank: 380 l
- Preparation for the 4th person
- External memory: 1 GB
- Block reading for 3D machining
- Handwheel

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table size: 1300 x 670 mm
- - Min - max height under spindle: 150 ~ 775 mm
- - Spindle centre to column distance: 747 mm
- - Tool changer: 30 positions

Extra information

- Tooling, clamps, magnets available at extra charge. Machine was used for custom production in single-shift operation most of the time.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
