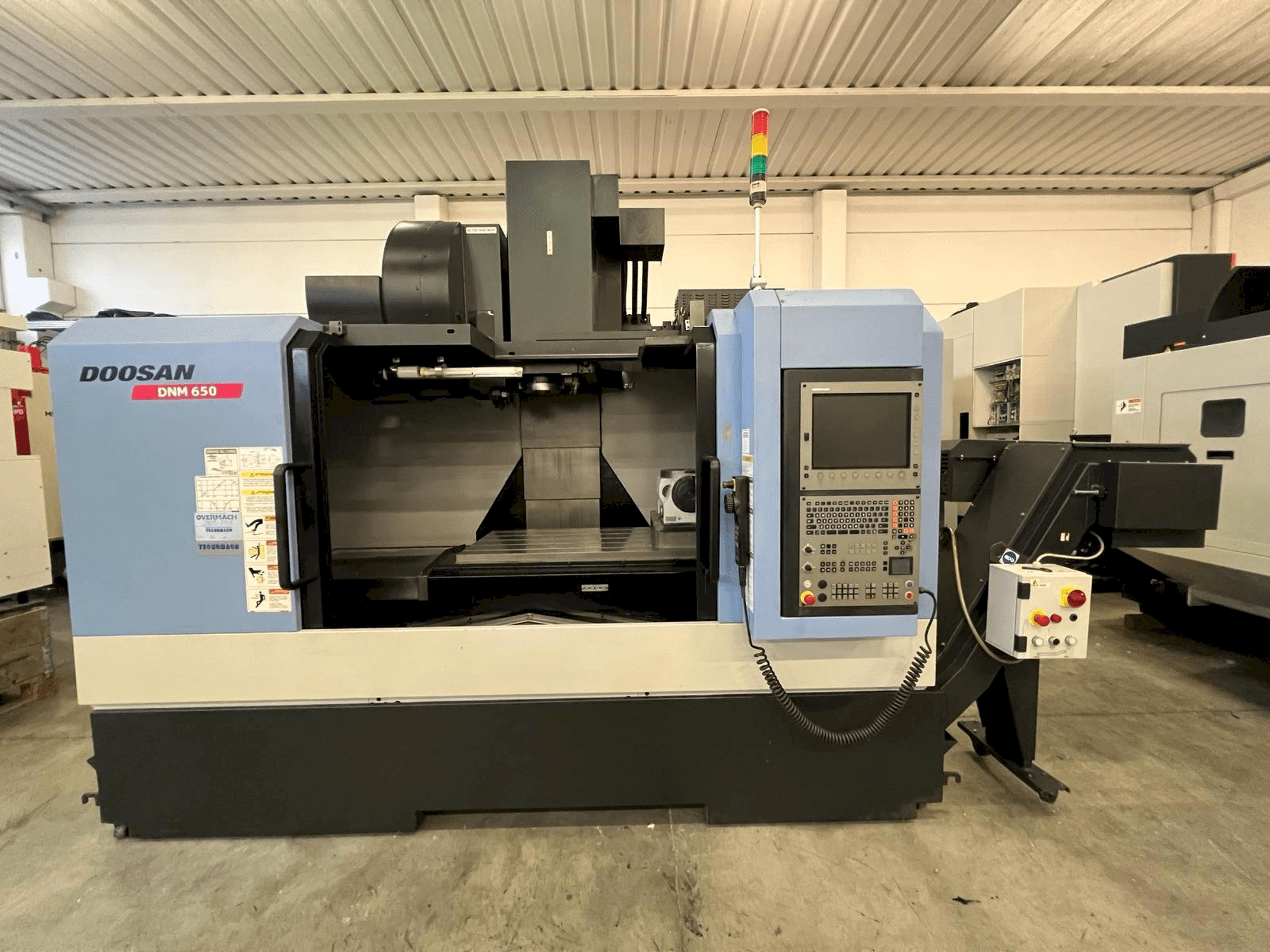

DOOSAN DNM 650 Vertical Machining Centre

This DOOSAN DNM 650 Vertical Machining Centre was manufactured in 2012 in South Korea. It is equipped with a HEIDENHAIN iTNC 530 control and internal cooling - IKZ - 18 bar. This 5-axis machining centre has a ISO 40 spindle with 12,000 rpm and 18kW motor power. It comes with presetting, chip conveyor and a 30 tool magazine. The table size is 1300 x 700 mm.

Overview

brand: DOOSAN
year: 2012
MODEL: DNM 650
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DOOSAN DNM 650

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Weight: 8500 kg
Table Length: 1300 mm
Table Width: 700 mm

Movement

Number of Axes: 5
X-axis Travel: 1270 mm
Y-axis Travel: 650 mm
Z-axis Travel: 610 mm

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 12000 RPM
Taper Size: ISO 40
Through-spindle Coolant: Yes

Additional Information

Additional equipment

Internal Cooling - IKZ - 18 bar
Chip Conveyor

Machine Benefits

Technical Machine Benefits

Presetting: yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
