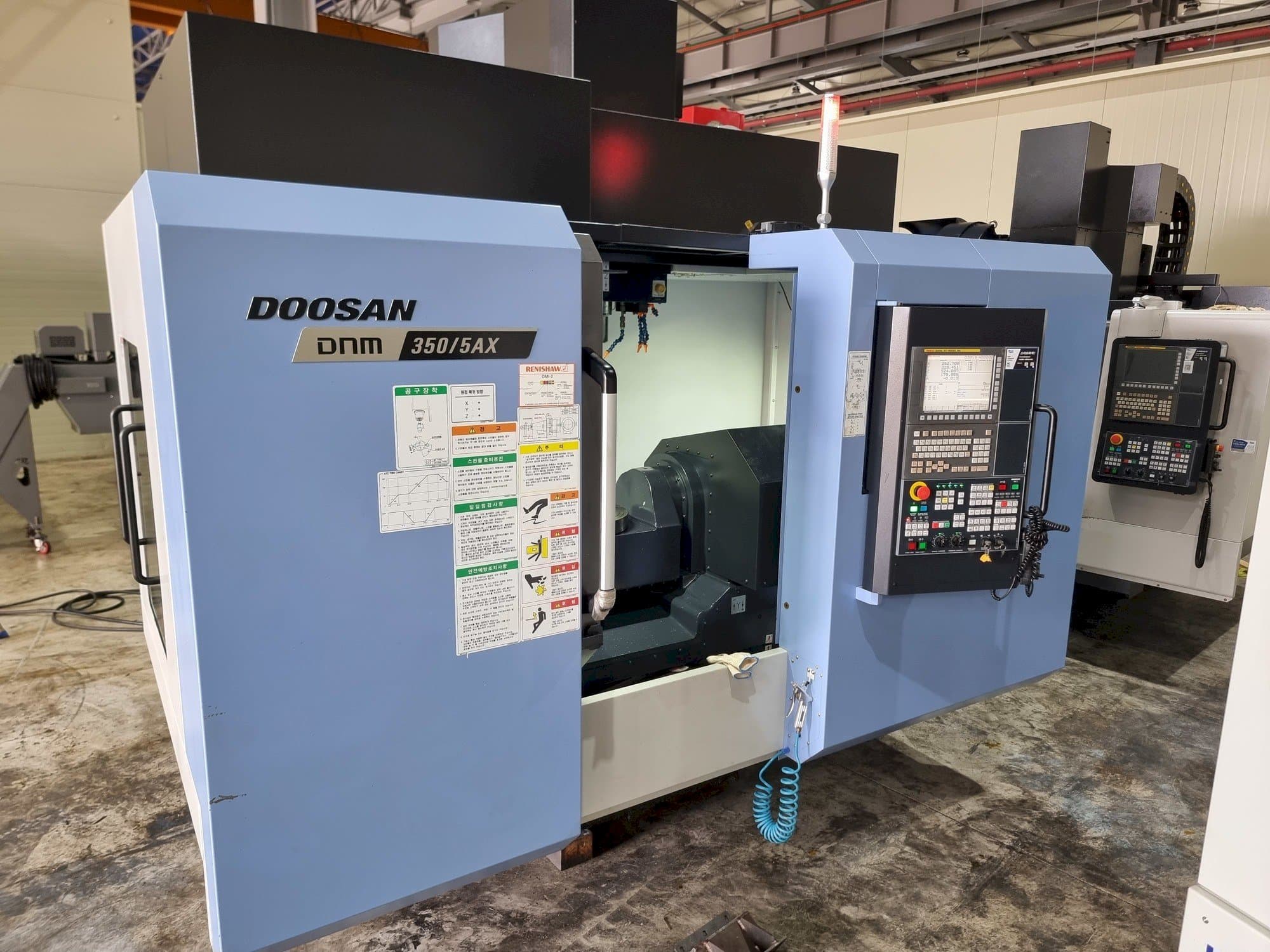

Front view of Doosan DNM350/5AX  machine

DOOSAN DNM350/5AX

DOOSAN - DNM350/5AX

2017

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DOOSAN DNM350/5AX Vertical Machining center was manufactured in the year 2017 and has 1685 production hours, of which 1522 are cutting hours. It is equipped with a Fanuc Series 31i-MODEL B5 control unit. The machine has a spindle speed of 20000 rpm. There are 2 units available.

Overview

  • brand: DOOSAN
  • year: 2017
  • MODEL: DNM350/5AX
  • production hours: 1685
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: FANUC
  • GINDUMAC ID: DE-MIL-DOO-2017-00008

Technical Information

Control Unit

  • Brand: FANUC
  • Model: Series 31i-MODEL B5

Main drive

  • Spindle speed range: 20000 1/MIN

Movement

  • X-AXIS Movement: 400 mm
  • Y-AXIS Movement: 655 mm
  • Z-AXIS Movement: 500 mm

Media

  • Main electronic connection: 220V /50-60Hz

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Ts27r (renishaw)
      • - Tool shank: bt40
      • - Index degree for table:0. 001 degree
      • - Spindle air curtain
      • - Through spindle coolant 70 bar
      • - Helical interpolation, spindle thermal compensation
      • - Stored pitch error compensa.
      • - Optional chamfering/corner round
      • - Dsq2 (aicc 200 blocks & data server 1gb)
      • - Doosan tool monitoring, air conditioner, oil cooler, oil skimmer
    • Qualitative Machine Benefits:
      • - Call right(led 3 step), guideway type : lm guide,
      • - Chip conveyer, chip bucket
      • - Mpg handle, manual books, transformer
      • - Full wood box+vacuum packing

    Extra information

    • - There are 2 units available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
