Left side view of Doosan HP5100  machine

DOOSAN HP5100

DOOSAN - HP5100

2008

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

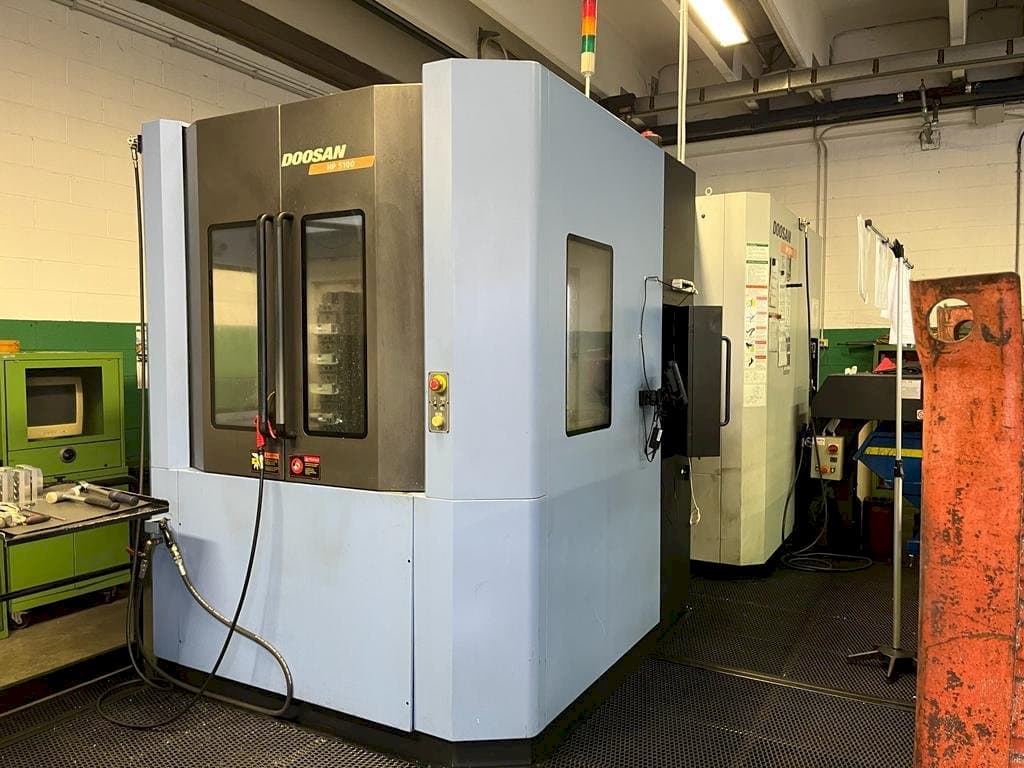

This Doosan HP5100 Horizontal Machine Center was built in the year 2008. It is equipped with a FANUC control unit. The machine has a spindle speed of 1 - 30000 rpm.

Overview

  • brand: DOOSAN
  • year: 2008
  • MODEL: HP5100
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (horizontal)
  • availability: Sold
  • control unit brand: FANUC
  • GINDUMAC ID: IT-MIL-DOO-2008-00001

Technical Information

Control Unit

  • Brand: FANUC

Main drive

  • Spindle speed range: 1 - 30000 1/MIN

Movement

  • X-AXIS Movement: 800 mm
  • X-AXIS Rapid traverse: 60 m/min
  • Y-AXIS Movement: 700 mm
  • Y-AXIS Rapid traverse: 60 m/min
  • Z-AXIS Rapid traverse: 60 m/min

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - The axis motion system consists of a series of motors, ball screws, linear guides, etc. The axis guides are equipped with roller lm guides for high speed and high productivity
      • - L axis: 750 mm
      • - Work progress: 1/30000 mm/min
      • - Ball screw diameter and pitch: ø40 x p20
      • - Positioning precision: ±0. 005 / entire stroke
      • - Repeatability: ±0. 002 mm
      • - Measuring system: x, y, z axes; incremental encoder - b axis: absolute encoder mm/min
      • - Distance spindle nose - pallet center: 150 - 900 mm
      • - Distance between spindle axis and pallet surface: 50 - 750 mm
      • - X axis: a30/3000i, y axis: a30b/3000i, z axis: a30/3000i, b axis (1st indexing): a12/3000is, b axis (rotation 0. 0019): a12/3000is, x axis: 7 kw, y axis: 7 kw, z axis: 7 kw, b axis (1st indexing): 2. 7 kw, b axis (0. 001° rotation): 2. 7 kw

    Extra information

    • - You can change the engine type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
