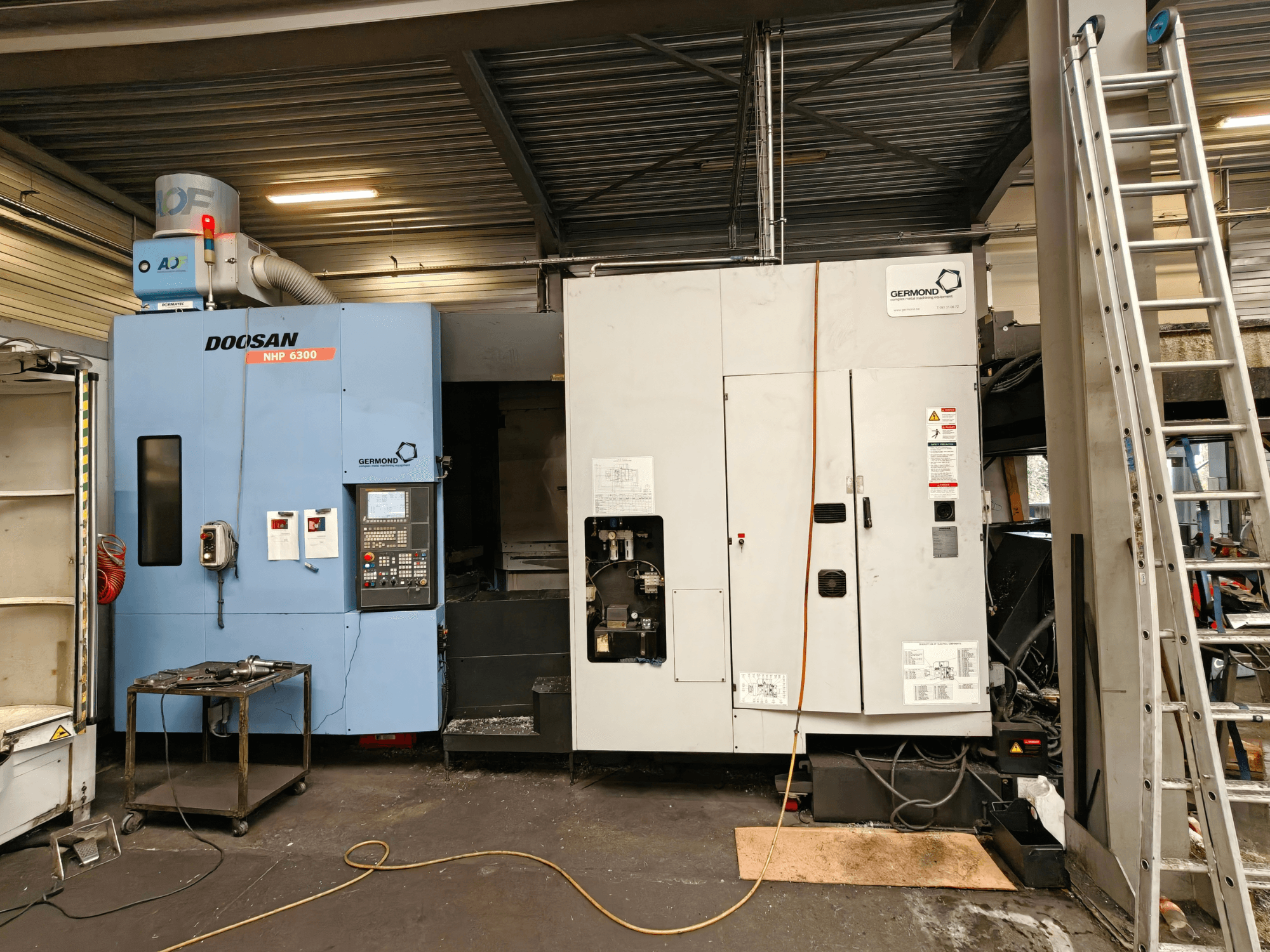

This 4-axis DOOSAN NHP6300 was manufactured in 2014. It features an impressive X-axis travel of 1,050 mm, Y-axis travel of 900 mm, and Z-axis travel of 1,000 mm. The machine includes a maximum pallet load of 1,500 kg and a tool capacity of 40 tools. If you are looking to get high-quality machining capabilities, consider the DOOSAN NHP6300 horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2014
- MODEL: NHP6300
- production hours: 19865
- application type: Milling
- Location: Belgium
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN NHP6300
Control Unit
- Control Brand: FANUC
- Control Model: Series 31i-model B
Dimensions
- Machine Height: 3422 mm
- Machine Length: 3780 mm
- Machine Weight: 18000 kg
- Machine Width: 7297 mm
- Table Load: 1500 kg
Movement
- Number of Axes: 4
- X-axis Travel: 1050 mm
- Y-axis Travel: 900 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Max. Tool Weight: 30 kg
- Spindle Speed: 10000 RPM
- Taper Size: ISO 50
- Tool Stations: 40
Additional Information
Distance from top of pallet to spindle center: 100–1,100 mm
Distance from pallet center to spindle nose: 75–975 mm
Pallet
Type: Indexing (rotary)
Indexing angle: 1°
Size: 630 × 630 mm
Maximum load: 1,500 kg
Mounting pattern: 24 × M16 × P2.0 {5–18H8}
Maximum workpiece size (Ø × H): Ø1,050 × 1,350 mm
Spindle
Speed: 10,000 rpm (options: 6,000 / 15,000 rpm)
Taper: ISO 50 (7/24 taper)
Maximum torque: 489 Nm (options: 599.8 / 350 Nm)
Feed rates
Rapid traverse (X/Y/Z): 60 / 60 / 60 m/min
Maximum cutting feed: 30,000 mm/min
Automatic Pallet Changer (APC)
Number of pallets: 2
Type: Rotary shuttle
Change time: 12 s
Drive: Servo motor
Automatic Tool Changer (ATC)
Tool interface: BT / CT / DIN (HSK optional)
Magazine type: Chain
Standard capacity: 40 tools (options: 60 / 90 / 120 / 150)
Matrix magazine capacity: 196 / 256 / 316 / 376 tools
Maximum tool diameter: Ø130 mm (Ø125 mm per note)
Maximum tool diameter with adjacent pockets empty: Ø320 mm
Maximum tool length: 630 mm (HSK: 700 mm)
Tool-to-tool change time: 2.0 / 3.5 s
Chip-to-chip change time: 5.0 / 6.5 s
Motor power and utilities
Spindle motor: 25 / 30 kW (options: 22 / 30, 50 / 55 kW)
Compressed air supply: 0.54 MPa
Tank capacities
Coolant: 925 l
Lubrication: 7.2 l
Additional equipment
Fastems automation system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
