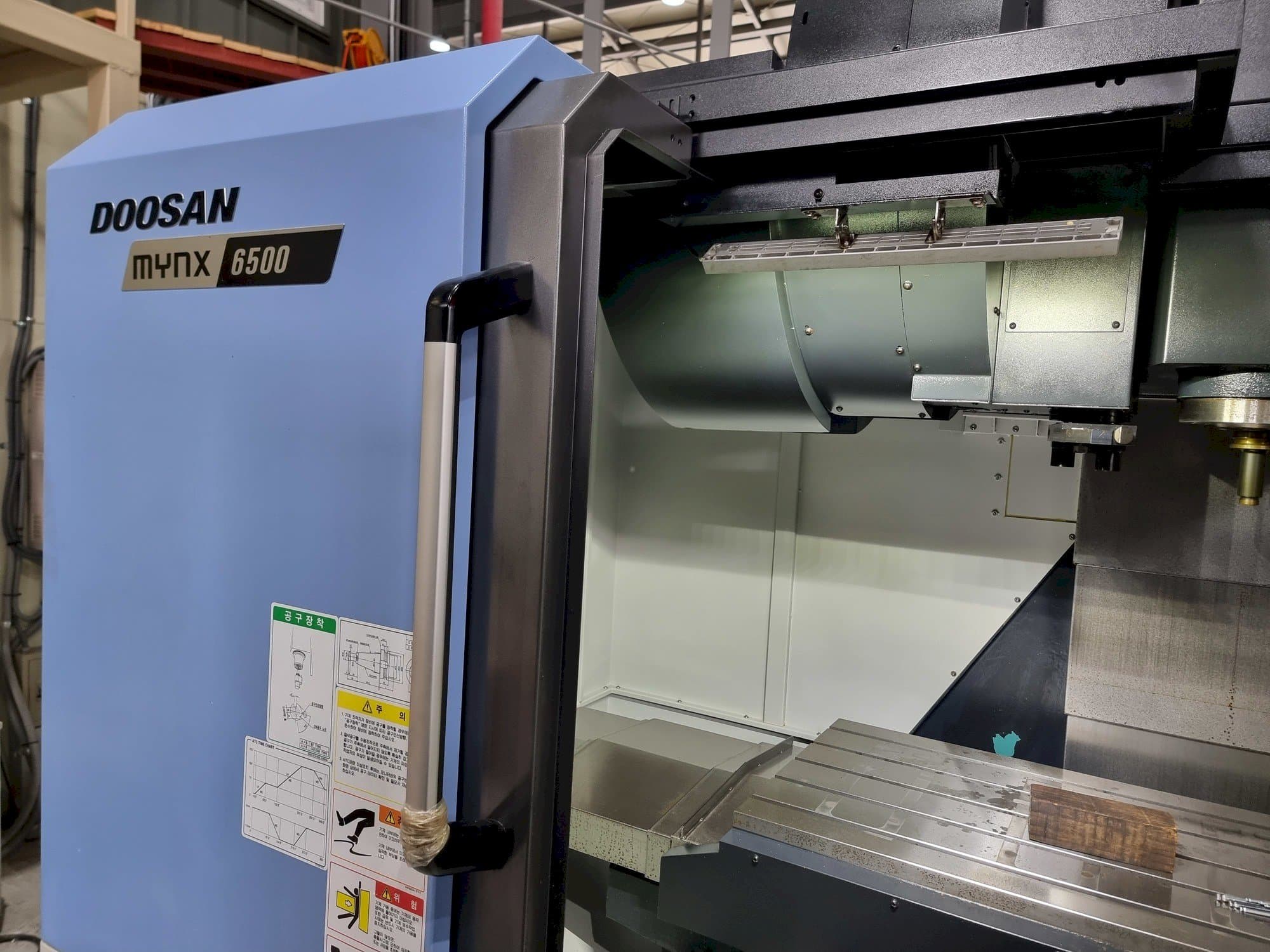

Front view of DOOSAN MYNX 6500  machine

DOOSAN - MYNX 6500DE-MIL-DOO-2018-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis DOOSAN MYNX 6500 vertical machining center was manufactured in 2018. It features a Fanuc i control system, BBT40 tool taper, and a spindle speed of 8,000 RPM. Equipped with a 30 ATC, through spindle coolant at 2.0 MPA, and a chip conveyor, this machine offers robust capabilities for precision machining. The table size is 1400*670 mm. For more information about this vertical machining center, please reach out to us.

Overview

  • brand: DOOSAN
  • year: 2018
  • MODEL: MYNX 6500
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: FANUC

Technical Information - DOOSAN MYNX 6500

Control Unit

  • Model: i
  • Brand: FANUC

Main drive

  • Spindle speed range: 8000 1/MIN
  • Spindle motor power: 1.5 KW
  • Tool taper: BBT40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1270 mm
  • Y-AXIS Movement: 670 mm
  • Z-AXIS Movement: 625 mm

Table

  • Outer length: 1400 mm
  • Outer width: 670 mm

    Additional Equipment

    • - Shower coolant
    • - Chip conveyor
    • - Air blower
    • - Doosan tool load monitoring
    • - Bucket
    • - Tower lamp
    • - English manual books

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Aicc 200 blocks, through spindle coolant
      • Qualitative Machine Benefits:
        • - Precision tool taper, robust construction show less

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
