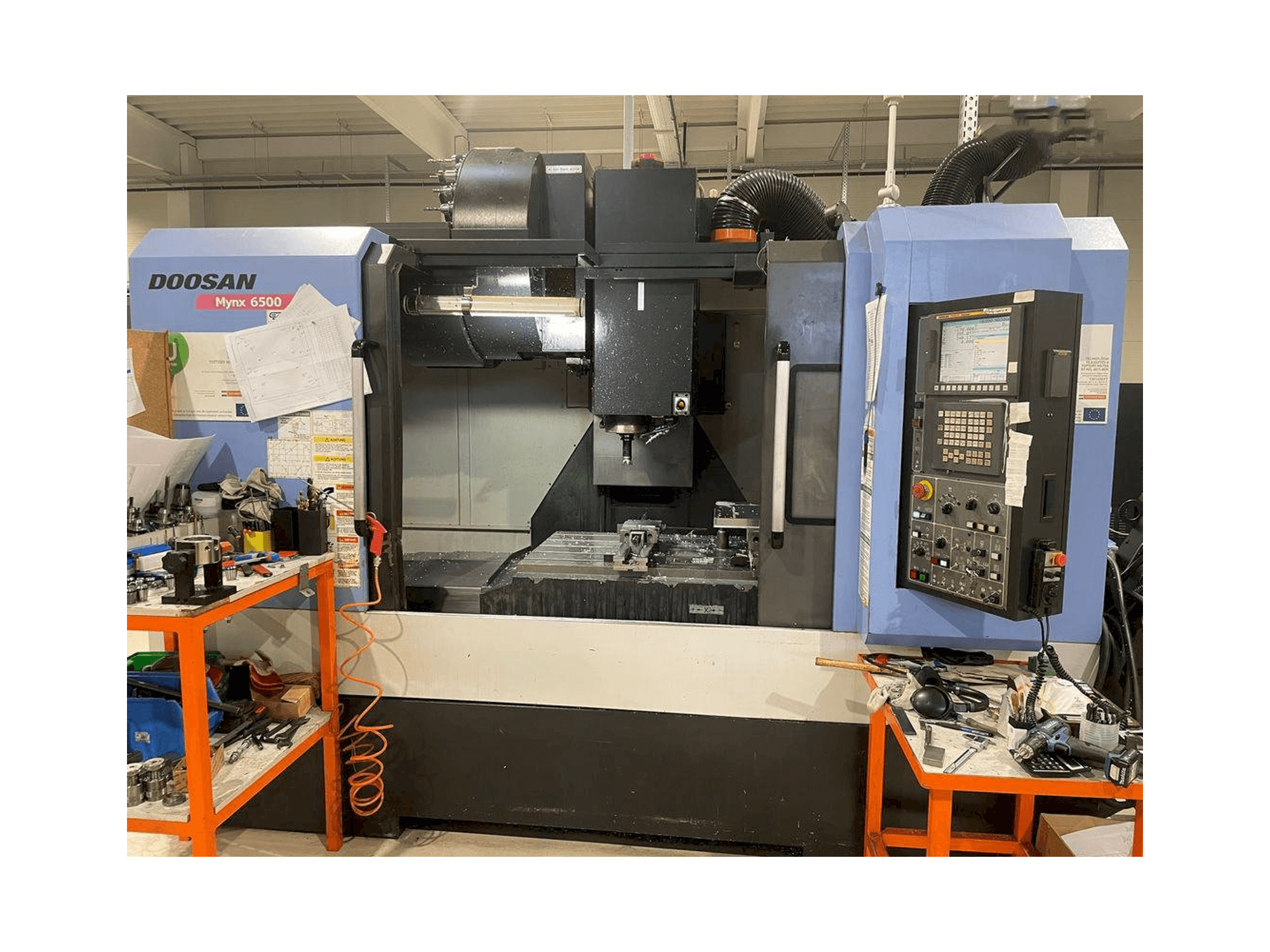

Front view of Doosan MYNX DNM 6500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN MYNX DNM 6500

DOOSAN - MYNX DNM 6500FR-MIL-DOO-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

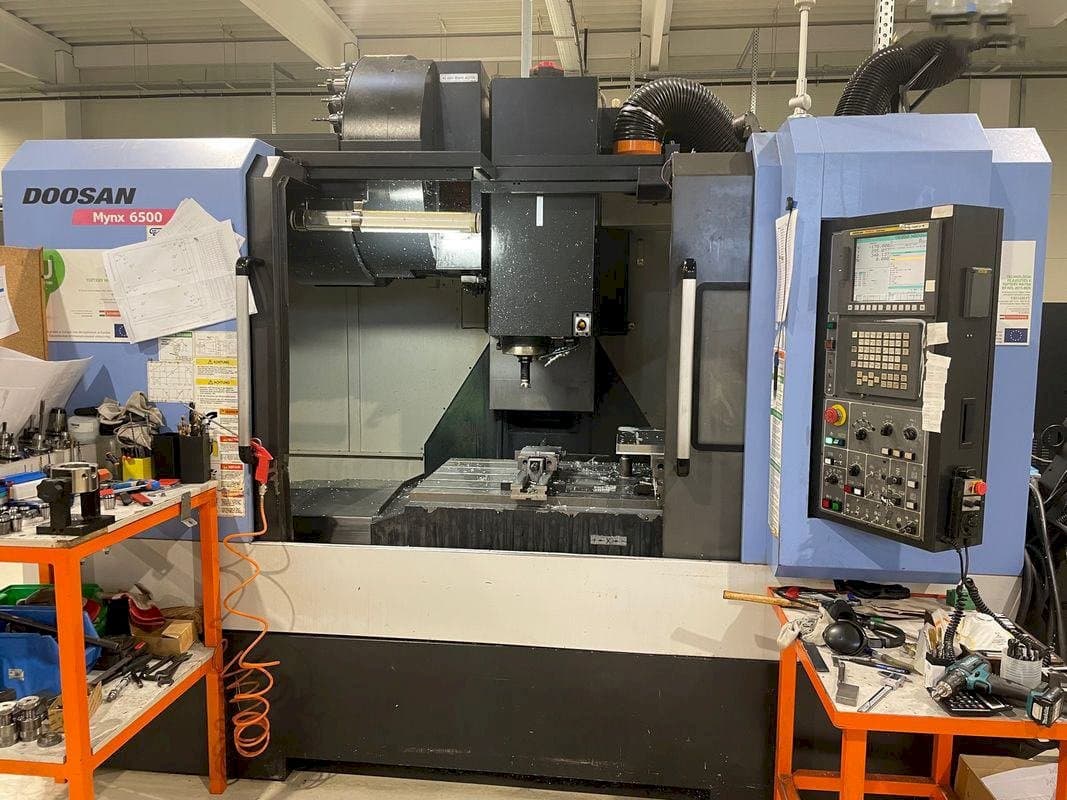

DOOSAN MYNX DNM 6500 Vertical Machining center

This is DOOSAN MYNX DNM 6500 Vertical Machining center was manufactured in the year 2011. It is equipped with a Fanuc i Series control unit and has 4 axis. The machine has a spindle speed of 18000 rpm.

Overview

brand: DOOSAN
year: 2011
MODEL: MYNX DNM 6500
application type: Milling
Location: France
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN MYNX DNM 6500

General Data

Measurements width: 3200 mm
Measurements depth: 2750 mm
Measurements height: 2940 mm
Machine weight: 9000 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 15 kW
Tool taper: BT 40
Number of axis: 4

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 670 mm
Z-AXIS Movement: 625 mm

Table

Outer length: 1400 mm
Outer width: 670 mm
Table load: 1000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 30 position tool changer
- - Watering center 20 bar
- - Conveyor
- - 4th axis preparation
- - Rapid advance 30 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
