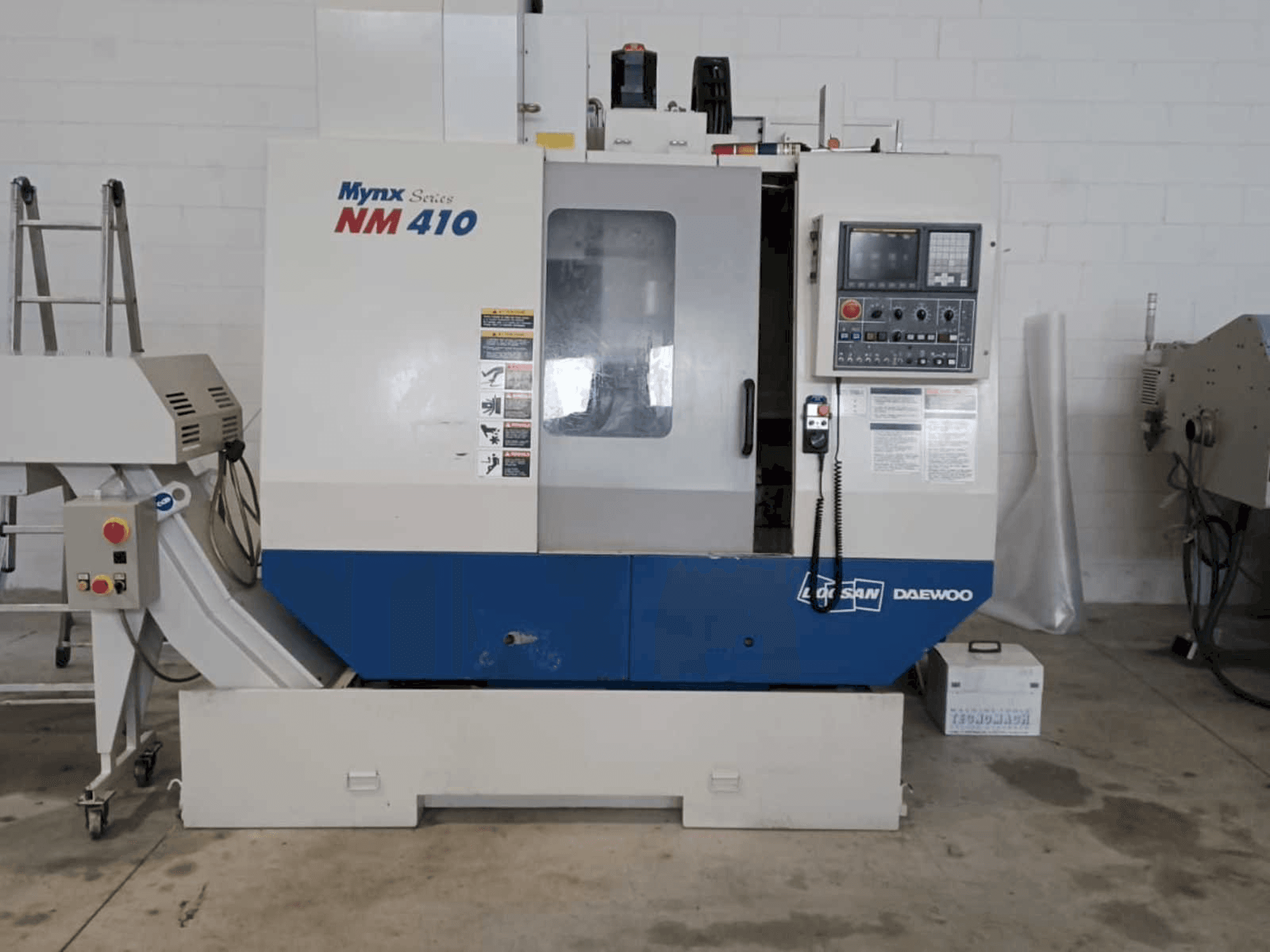

Front view of Doosan Mynx NM 410 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Mynx NM 410

Photo Gallery

DOOSAN - Mynx NM 410IT-MIL-DOO-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Mynx NM 410 Vertical Machining center

This Doosan Mynx NM 410 Vertical Machining center was manufactured in the year 2006 in Korea. It is equipped with a FANUC Series 0i-MB control unit and has 3 axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: DOOSAN
year: 2006
MODEL: Mynx NM 410
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN Mynx NM 410

Control Unit

Control Brand: FANUC
Control Model: Series 0i-MB

Dimensions

Machine Weight: 2745 kg
Table Length: 1000 mm
Table Width: 450 mm

Movement

Number of Axes: 3
X-axis Travel: 820 mm
Y-axis Travel: 410 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Speed: 8000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Capacity: distance spindle nose – table min/max 150 - 660 mm
Distance spindle - column 450 mm
Iso 40 spindle connection
Feeds : rapid x/y/z axes 30/30/24 m/min
Tool changer: tool magazine 20 pos.
Max tool weight : 8kg.
Max user size diameter/length 90/250 mm
Accessories present: carpet chip conveyor - a. P. Through spindle –
Remote electronic handwheel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
