DOOSAN Puma 2600Y

Photo Gallery

DOOSAN - Puma 2600YGB-TUR-DOO-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

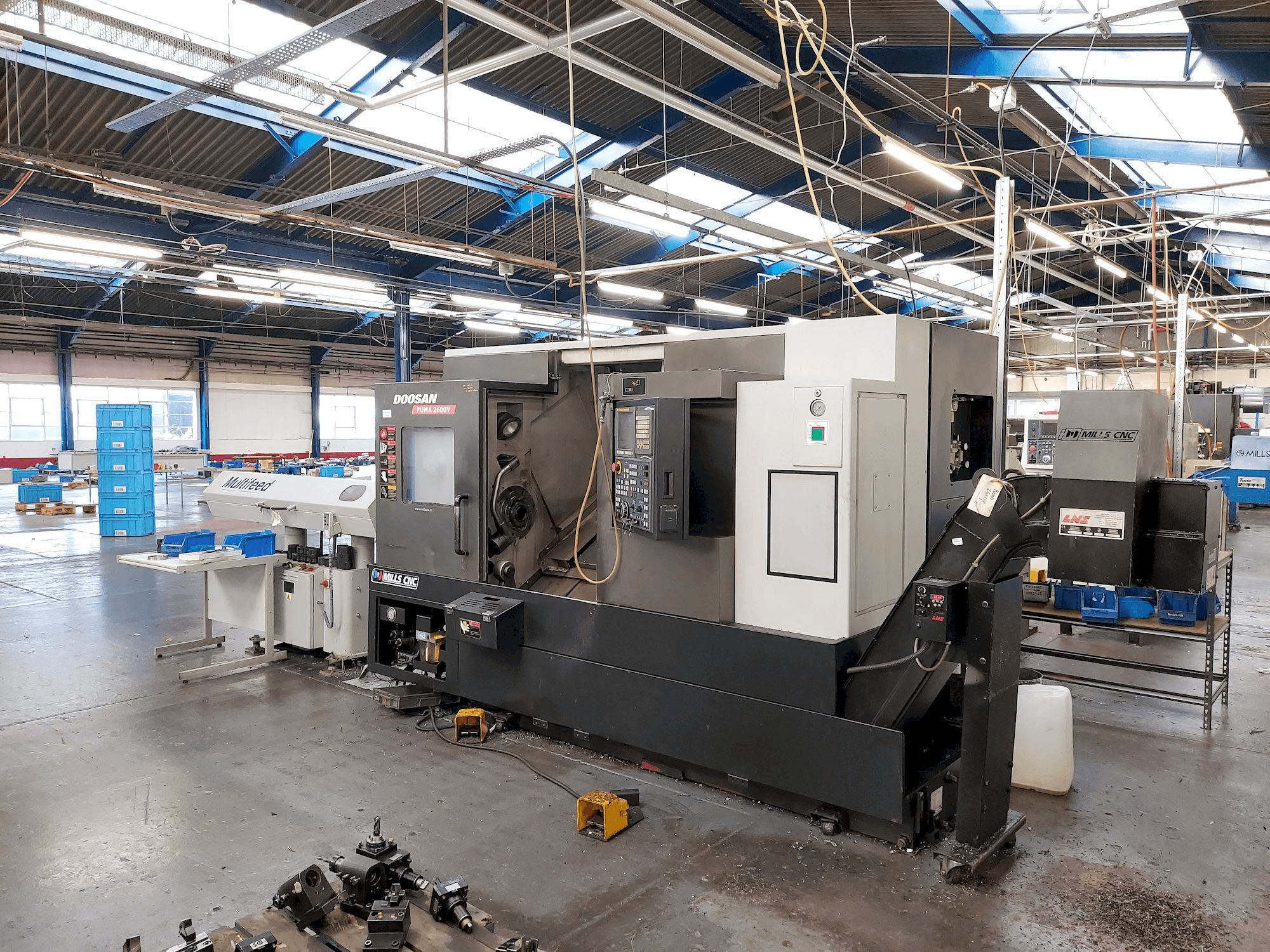

Doosan Puma 2600Y lathe machine

This Doosan 2600Y lathe machine was manufactured in South Korea in 2011. It has 11422 of running time, of which 7515 are cutting time. The 4 axis machine has a spindle speed up to 3500 rpm. It is operated through a Fanuc i Series control unit. The machine is in very good condition.

Overview

brand: DOOSAN
year: 2011
MODEL: Puma 2600Y
production hours: 11422
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN Puma 2600Y

Control Unit

Control Brand: FANUC
Control Model: i Series

Dimensions

Machine Depth: 1965 mm
Machine Height: 1863 mm
Machine Weight: 6000 kg

Movement

Number of Axes: 4
X-axis Travel: 260 mm
Y-axis Travel: 52.5 mm
Z-axis Travel: 830 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 3500 RPM

Additional Information

Additional equipment

Bar feeder HYDRAFEED MX-1B

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Swing over bed 780 mm, over carriage 630 mm
Maximum machining diameter 376 mm
Maximum machining length 760 mm
Bar capacity 76 mm
Turret milling power 7. 5 kw; speed 5000 rpm
0. 001 degree c axis
Tool setter, parts catcher, coolant, barfeed
Collet chuck, collets
Tailstock (taper mt #5, quill dia. 100 mm)
4 controlled axes (x, z, c, y)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
