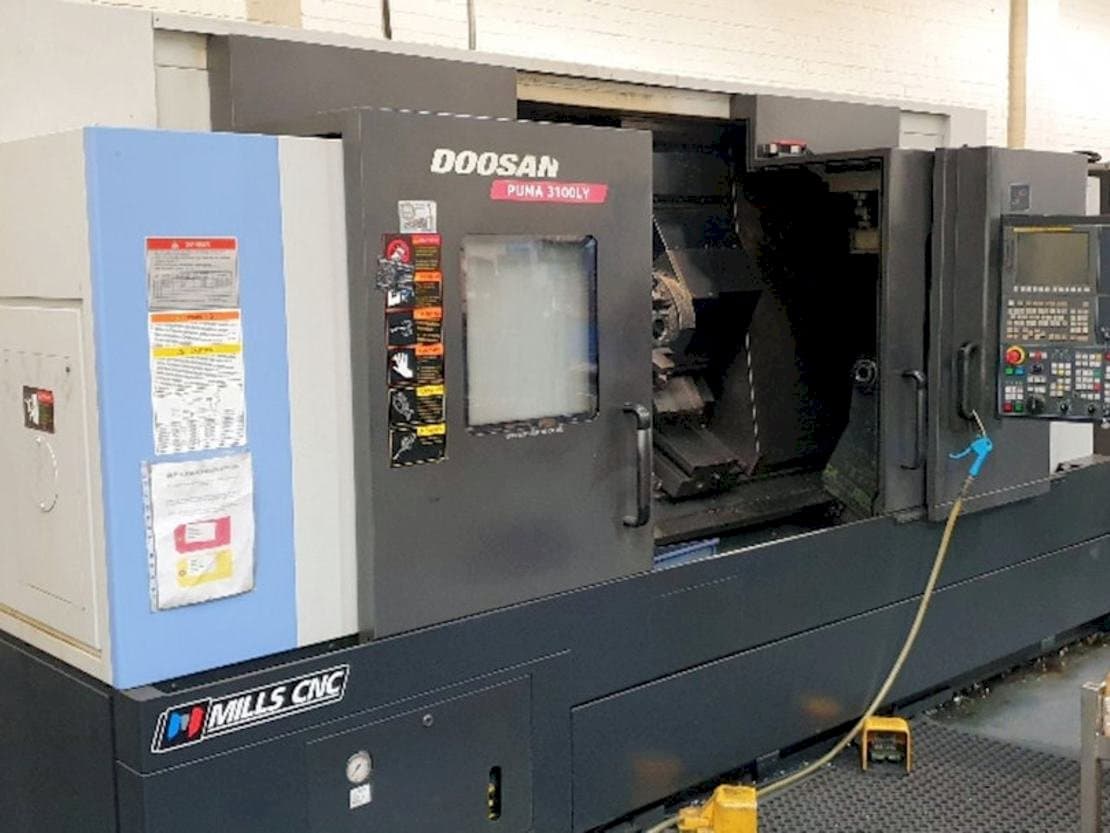

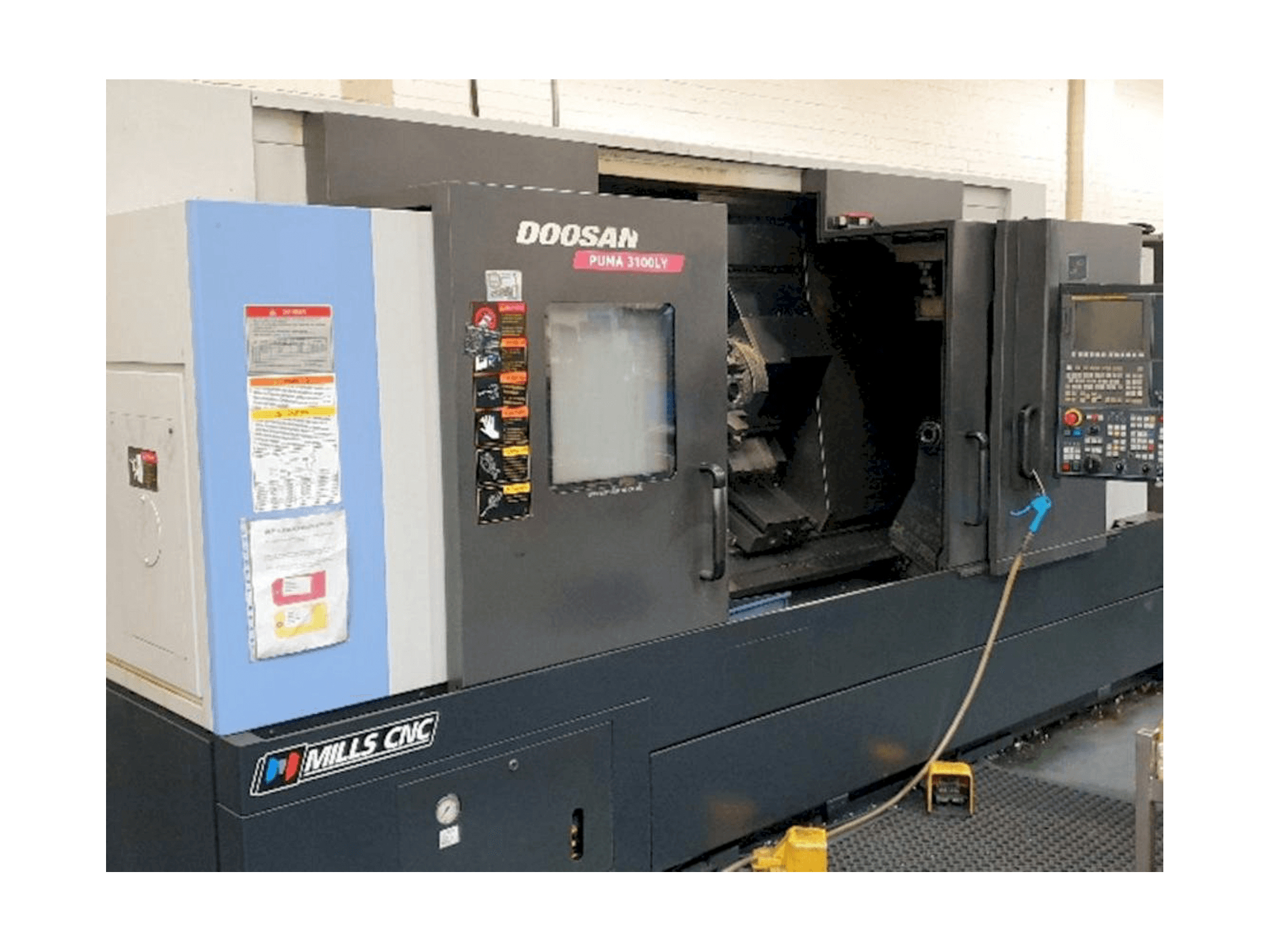

Front view of Doosan Puma 3100LY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Puma 3100LY

Photo Gallery

DOOSAN - Puma 3100LYGB-TUR-DOO-2014-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Puma 3100LY Lathe Machine

This Doosan 3100LY Lathe Machine was manufactured in 2014. It is operated through a DOOSAN - FANUC i Series control unit. The 4 axis machine has a spindle speed up to 2800 rpm. It is in very good condition.

Overview

brand: DOOSAN
year: 2014
MODEL: Puma 3100LY
production hours: 18661
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN Puma 3100LY

General Data

Machine weight: 8000 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2800 1/MIN
Spindle motor power: 18.5/22 kW

Movement

X-AXIS Movement: 293 mm
Y-AXIS Movement: +/- 65 mm
Z-AXIS Movement: 1350 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 850 mm, over carriage 670 mm
- - Maximum machining diameter 420 mm
- - Maximum machining length 1285 mm
- - Bar capacity 102 mm
- - Milling power 5. 5/7. 5 kw; speed 5000 rpm
- - 0. 001 degree c axis
- - Tool setter, coolant
- - 12” 3-jaw chuck
- - Tailstock (taper mt #5, quill dia. 100 mm, quill stroke 100 mm)
- - 4 controlled axes (x, z, c, y)
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
