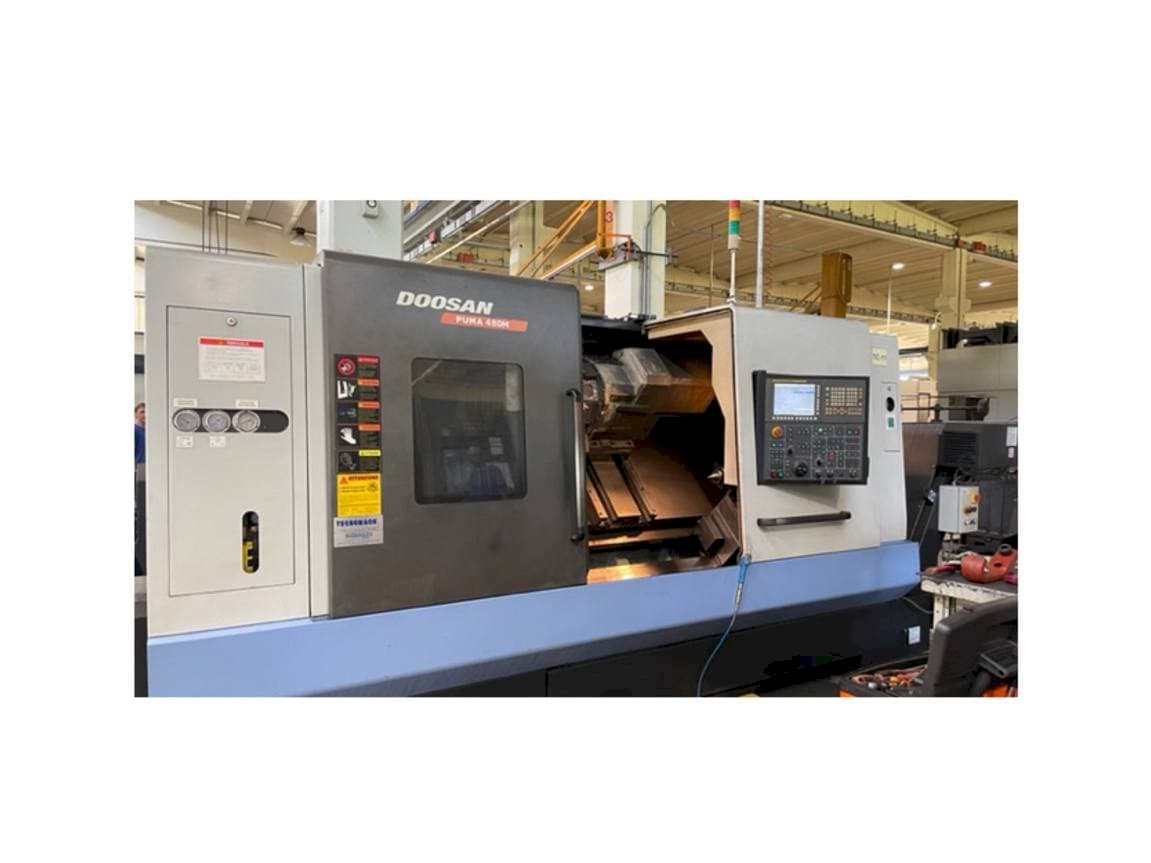

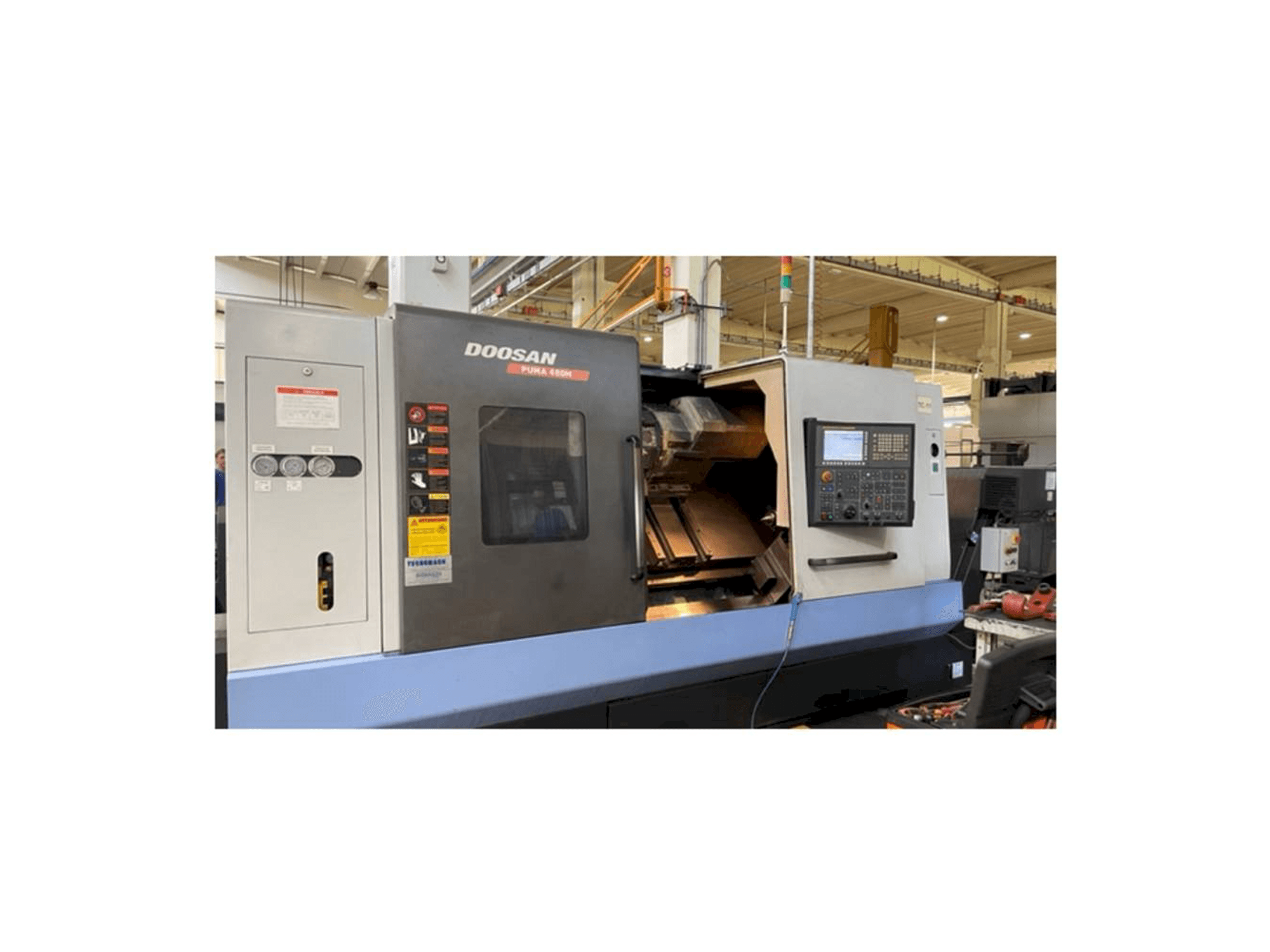

Front view of Doosan PUMA 480 MB  machine

DOOSAN PUMA 480 MB

DOOSAN - PUMA 480 MB

2011

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Doosan 480 MB Lathe machine was manufactured in the year 2011. It is equipped with a FANUC Series 32i-Model A control unit and has 3 axis. The machine has a spindle speed of 15-1500 rpm and includes a chip conveyor, tool set, and set of motorized and static tool holders.

Overview

  • brand: DOOSAN
  • year: 2011
  • MODEL: PUMA 480 MB
  • application type: Turning
  • Location: Italy
  • machine type: Lathe
  • availability: Sold
  • control unit brand: FANUC
  • GINDUMAC ID: IT-TUR-DOO-2011-00001

Technical Information

General Data

  • Machine weight: 10100 kg

Control Unit

  • Brand: FANUC
  • Model: Series 32i-Model A

Main drive

  • Spindle speed range: 15 - 1500 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 362 mm
  • Y-AXIS Movement: 1105 mm
  • C-AXIS Movement: 360 ° positioning 0.001 ° MM

Turret

  • Number of turrets: 12

    Additional Equipment

    • - chip conveyor
    • - tool setting
    • - Set of motorized and static tool holders

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Diam. Rotating on the bed 900 mm
        • - Max. Diam. Rotating on the carriage 720 mm
        • - Max. Diam. Bar turning 165 mm
        • - Max. Diam. Turning 650 mm
        • - Max. Turning length 951 mm
        • - Spindle nose asa 15 "
        • - Self-centering diam. 500 mm
        • - Spindle motor power 45 kw (mechanical range change)
        • - Motorized stations 12
        • - Dimensions of turning / boring tools 25x25 - Ø 60 mm
      • Qualitative Machine Benefits:
        • - Motor power of motorized tools 11 kw.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
