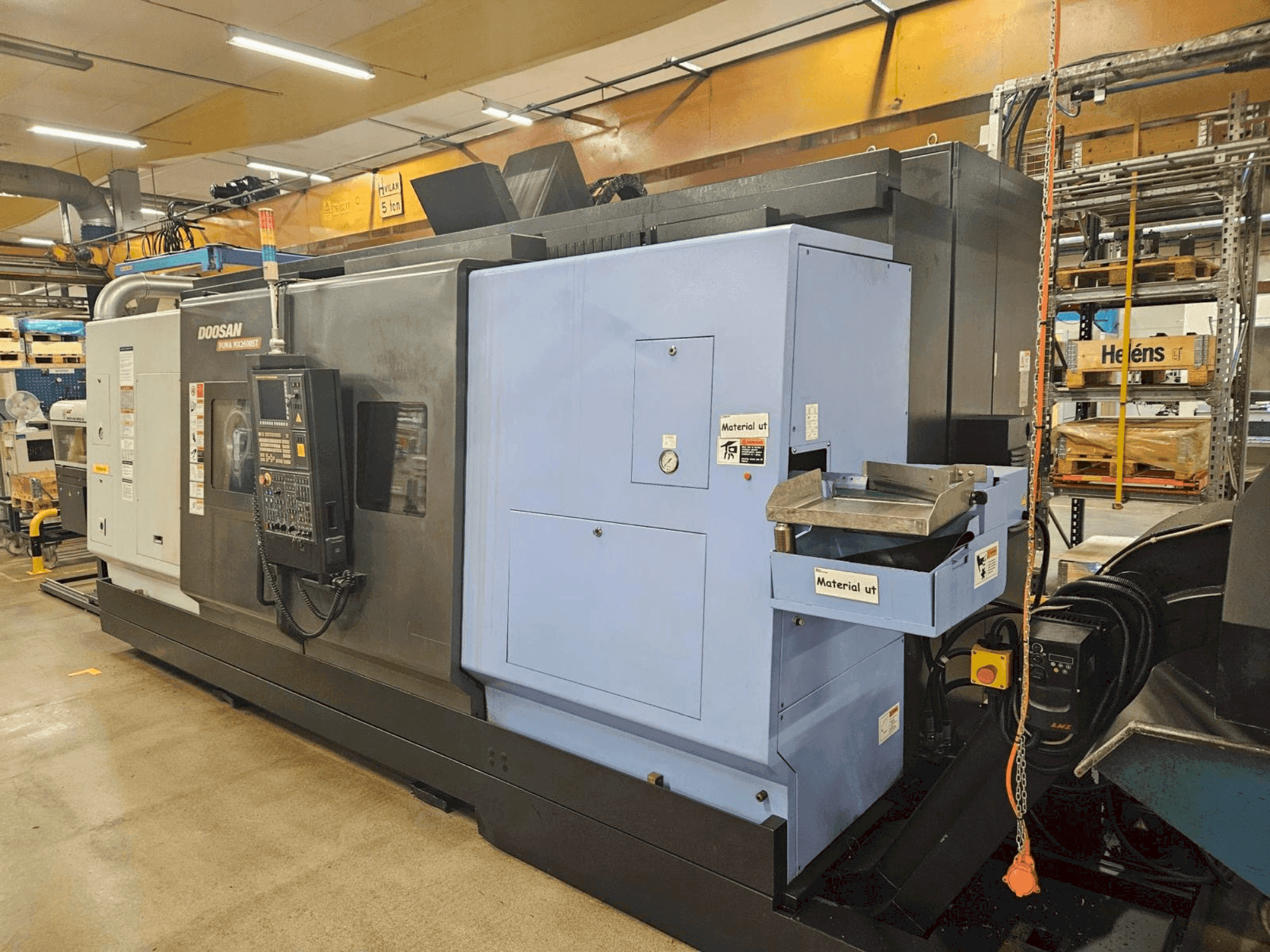

This 5-axis DOOSAN Puma MX2600ST turn-mill centre was manufactured in 2013. It features a maximum turning diameter of Ø 760 mm, part length up to 1540 mm, and bar capacity of Ø 76 mm. Equipped with a Fanuc 31i-A control, dual spindles with speeds up to 4000 rpm, and a milling spindle at 12,000 rpm. Includes a tool magazine with 80 positions and a swarf conveyor. Consider the opportunity to buy this DOOSAN Puma MX2600ST turn-mill centre. Contact us for more information.
Overview
- brand: DOOSAN
- year: 2013
- MODEL: Puma MX2600ST
- production hours: 15000
- application type: Turning
- Location: Sweden
- machine type: Turn-Mill Centre
Technical Information - DOOSAN Puma MX2600ST
Movement
- Number of Axes: 5
- Y-axis Travel: 230 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: Capto C6
Additional Information
Max turning diameter: Ø 760 mm
Max part length: 1540 mm
Bar capacity: Ø 76 mm
Axis travels:
X1: 630 mm
Z1: 1585 mm
Y: 230 mm (±115 mm)
X2: 220 mm
Z2: 1515 mm
A: 1550 mm
Left/right spindles:
Speed: 4000 rpm
Spindle nose: A2-8
Power: 22/26 kW
C-axis: 360° (0.001)
Milling spindle:
Speed: 12,000 rpm
Power: 15/18.5/22 kW
Taper: Capto C6
B-axis: 0.001°
Lower turret: 12 stations, 4000 rpm, BMT65P
Tool magazine: 80 positions
Additional equipment
Automatic tool measurement
Swarf (chip) conveyor
Coolant for driven tools
Coolant through milling spindle: 1.5 kW, 2.0 MPa, 21.6 l/min
Coolant pump for lower turret: 2.2 kW, 1.0 MPa, 30 l/min
Cutting force monitoring
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
