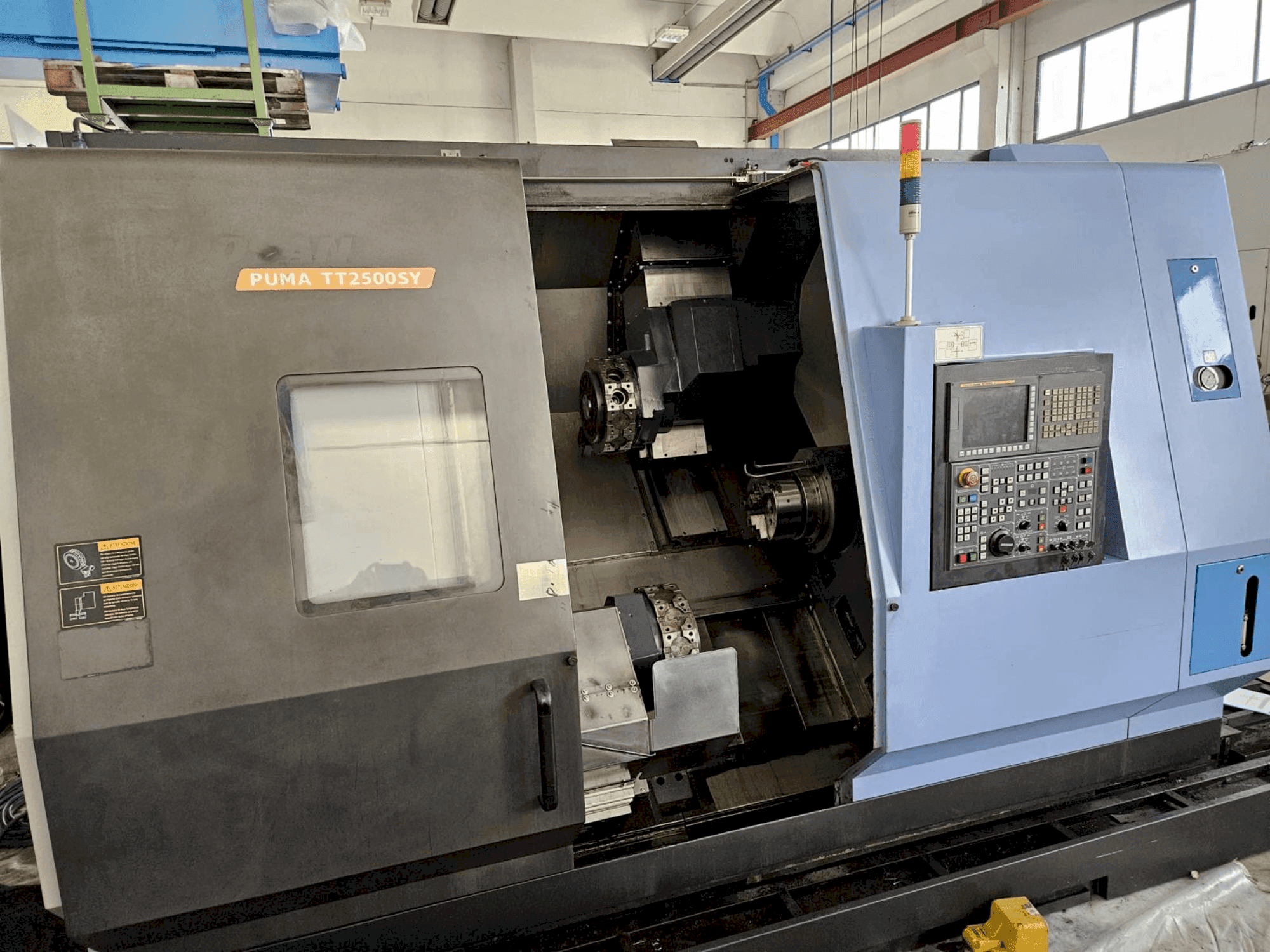

This 8-axis DOOSAN TT2500SY lathe was manufactured in 2010. It features a maximum turning diameter of 390mm, a bar passage of 76mm, and dual spindles with speeds up to 3500 rpm. The machine includes a Y/A axis for the counterspindle, a 360º C1 and C2 axis, and a turret with 12 live tools capable of 4000 rpm. Dimensions are 5000 x 2200 x 2340mm, weighing 11700kg. For more information about this lathe, please reach out to us.
Overview
- brand: DOOSAN
- year: 2010
- MODEL: TT2500SY
- application type: Turning
- Location: Italy
- machine type: Turn-Mill Centre
- availability: Immediatetly
Technical Information - DOOSAN TT2500SY
Main drive
- Spindle speed range: 3500 1/MIN
- Tool taper: ASA 8
Movement
- X-AXIS Movement: 255 mm
- Z-AXIS Movement: 800 mm
- AXIS 1 Movement: 360 °
- AXIS 2 Movement: 360 °
Workpiece
- Workpiece drm over bed: 800 mm
- Workpiece drm over support: 620 mm
Turret
- Number of tool slots: 12
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Y/a axis (counterspindle): 120/810mm
- - X2 axis: 190mm
- - Z2 axis: 900mm
- - Live tools speed: 4000rpm
- - Max turn diameter: 390mm
- - Bar passage: 76mm
- - Max working length: 700mm
- - Dual spindle and counterspindle capabilities, high-speed live tools, comprehensive axis movement.
- Qualitative Machine Benefits:
- - High precision and accuracy in turning operations.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
