DOOSAN V740T

Photo Gallery

DOOSAN - V740TSI-TUR-DOO-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN V740T Vertical Lathe For Sale | gindumac.com

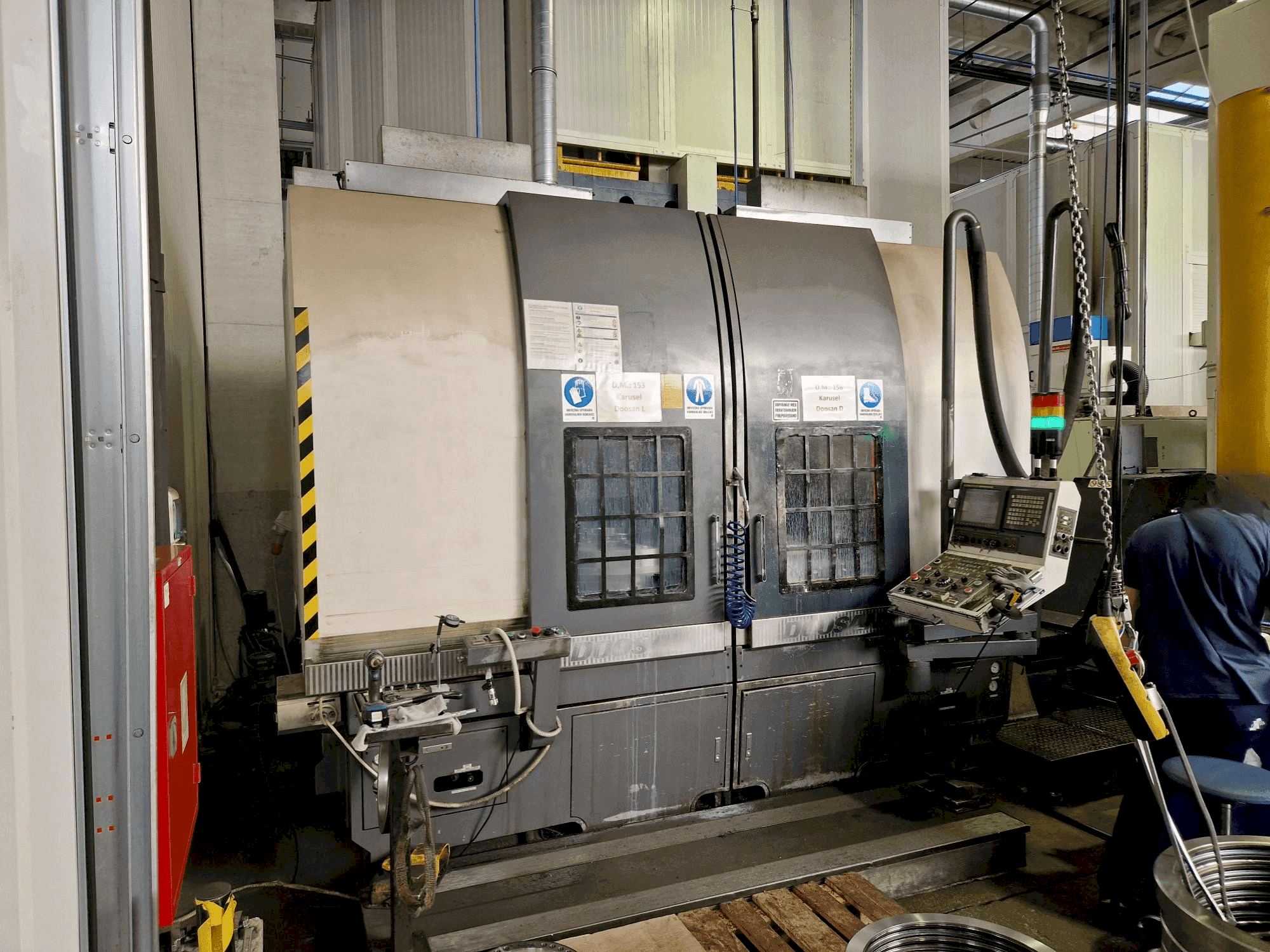

This DOOSAN V740T vertical turning machine was manufactured in 2005. It features a maximum swing diameter of 800 mm, turning diameter of 740 mm, and a turning length of 760 mm. The main spindle supports a rotational speed up to 2000 RPM with a motor power of 30 kW. It includes a 12-position turret and rapid traverse rates of 20 m/min for both X and Z axes. If you are looking to get high quality turning capabilities consider the DOOSAN V740T machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: DOOSAN
year: 2005
MODEL: V740T
application type: Turning
Location: Slovenia
machine type: Vertical Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN V740T

Control Unit

Control Brand: FANUC
Control Model: FANUC 18I TB

Dimensions

Machine Weight: 18000 kg

Movement

Number of Axes: 2
X-axis Travel: 380 mm
Z-axis Travel: 760 mm

Technical Specification

Spindle Power: 30 kW
Spindle Speed: 2000 RPM

Additional Information

Additional equipment

Holders for External Turning: HO10-25RL (4 pcs)
Holders for Face Turning: HF10-25RL (2 pcs)
Holders for Internal Turning: HB10-50N (4 pcs), HB10-40N (2 pcs)
Reduction Sleeves: BS 40-10, -12, -16, -20, -25 (2 sets)

Machine Benefits

Technical Machine Benefits

Drive: gear transmission, two stages
Maximum swing diameter: 800 mm
Maximum turning diameter: 740 mm
Maximum turning length: 760 mm
Number of positions: 12 x 2
External turning: 25 x 25 mm
Boring tools: Ø40/60 mm
Tool change time: 0. 43 s

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
