DOOSAN VC 320

Photo Gallery

DOOSAN - VC 320ES-MIL-DOO-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

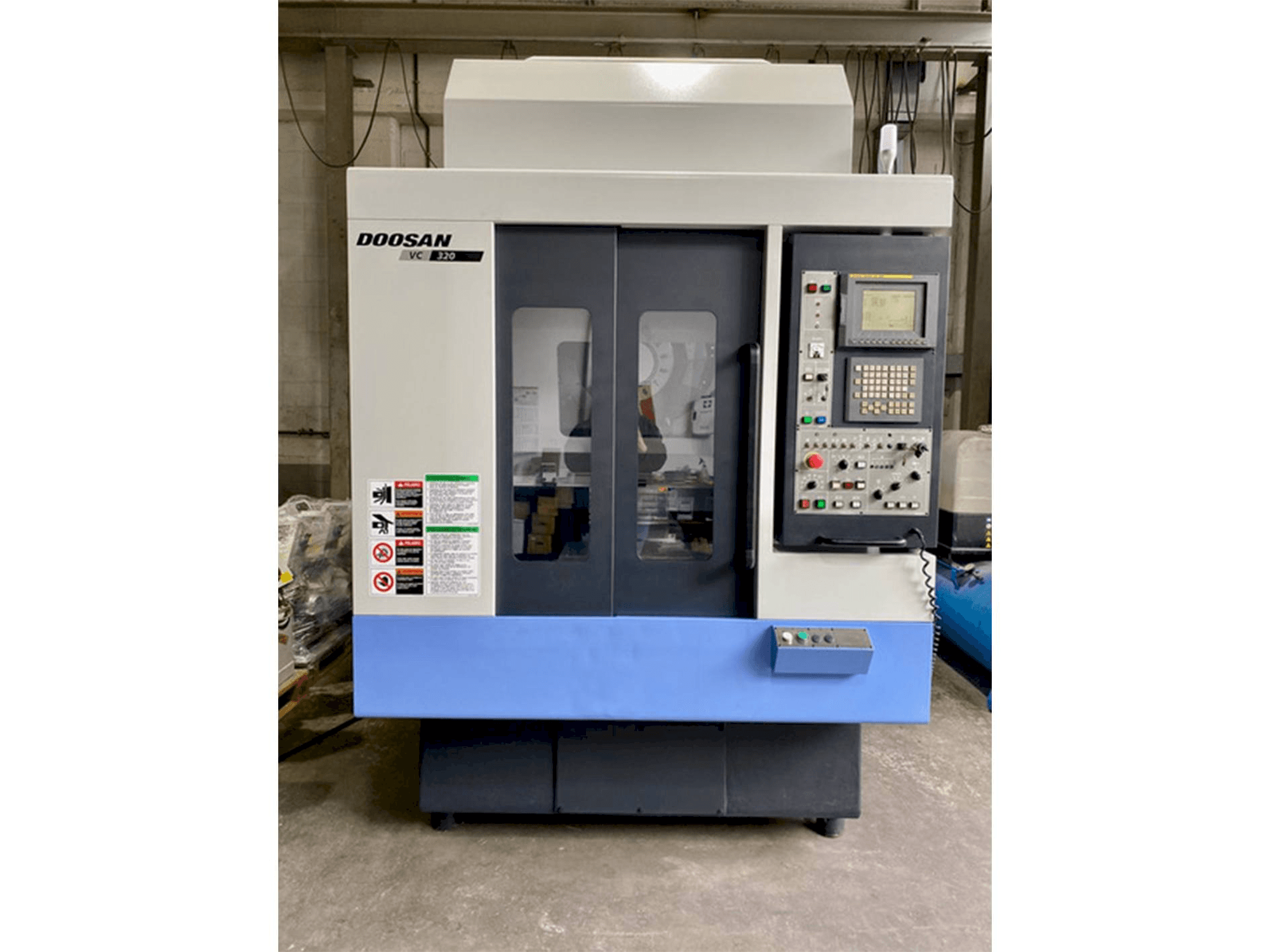

Doosan VC 320 Vertical Machining center

This Doosan VC 320 Vertical Machining center was manufactured in Korea in 2007. It has a production record of 18734 hours, of which 6558 are cutting hours. This 3 axis machine can work with a spindle speed up to 12000 rpm. It includes pallet change.

Overview

brand: DOOSAN
year: 2007
MODEL: VC 320
production hours: 18734
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN VC 320

General Data

Measurements width: 3250 mm
Measurements depth: 1700 mm
Measurements height: 2690 mm
Machine weight: 5500 KG

Control Unit

Model: 21i MB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 520 mm
Y-AXIS Movement: 320 mm
Z-AXIS Movement: 350 mm

Workpiece

Workpiece weight: 150 KG

Table

Outer length: 650 mm
Outer width: 355 mm

Tools

Slots in storage: 14
Max weight: 2.8 KG
Max tool diameter: 80 mm
Max tool length: 200 mm
Type of tool holder: BT-30

Media

Main electronic connection: 220V / 60Hz
Power consumption: 23.05 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pallet change
- - Electronic handweel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
