➤ Used DOOSAN VC 510 For Sale | gindumac.com

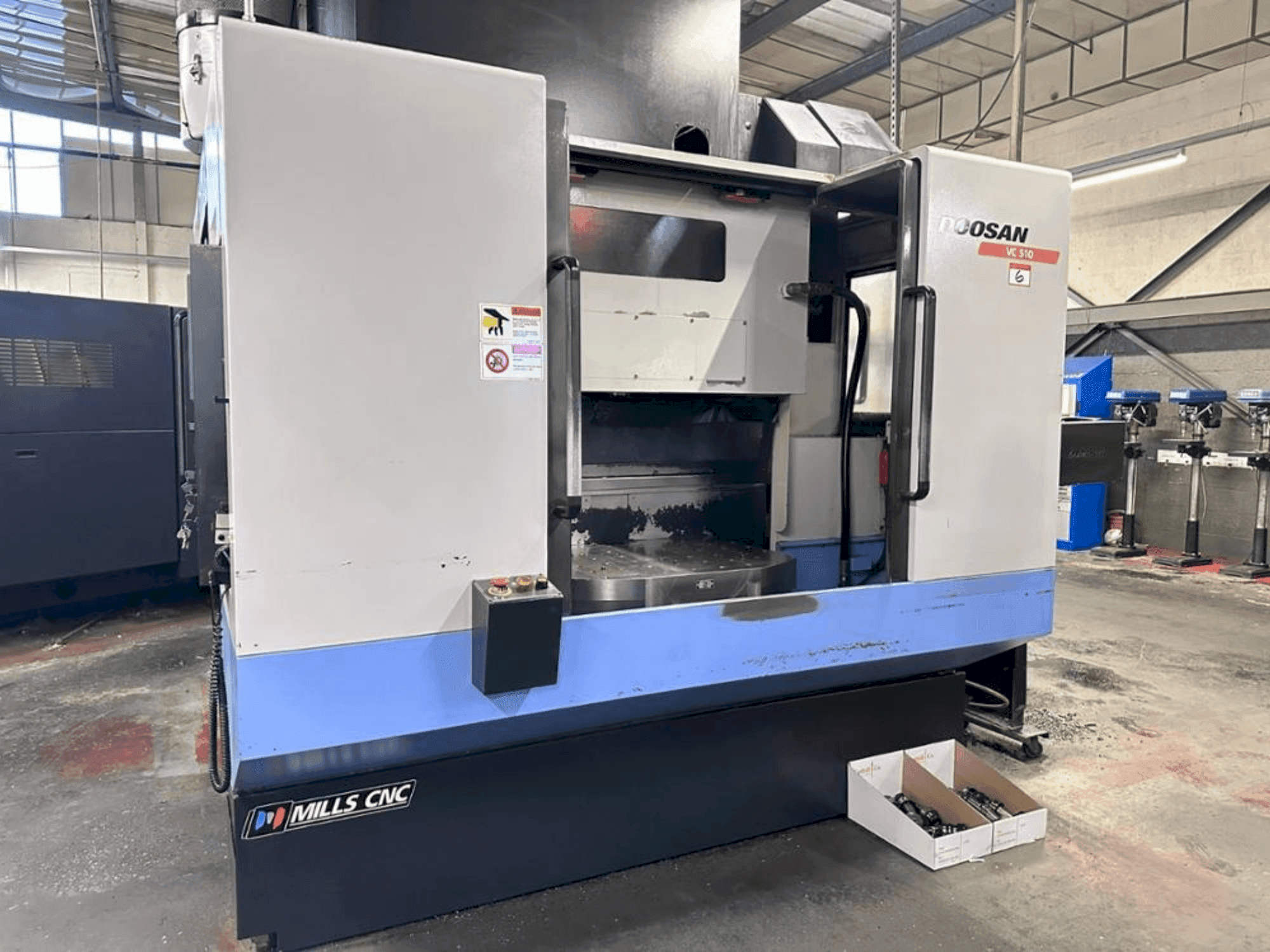

This 3-axis DOOSAN VC 510 was manufactured in 2012. It features a twin pallet vertical machining centre with a table size of 2 x 860 x 570mm, a maximum workpiece height of 520mm, and a spindle speed of 10,000rpm. It includes a 40 tool ATC, X-axis travel of 762mm, Y-axis travel of 516mm, and Z-axis travel of 570mm. Consider the opportunity to buy this DOOSAN VC 510 vertical machining centre. Contact us for more information.

Overview

brand: DOOSAN
year: 2012
MODEL: VC 510
production hours: 37513
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre

Technical Information - DOOSAN VC 510

Dimensions

Machine Weight: 9500 kg

Movement

Number of Axes: 3
X-axis Travel: 762 mm
Y-axis Travel: 516 mm
Z-axis Travel: 570 mm

Additional Information

Additional Equipment

High Pressure Coolant System: Pumps and Equipment WPB 10-1000 Hydrajet
Chiller Unit: Kaukan Chiller Unit
Swarf Conveyor: LNS Turbo HB Swarf Conveyor

Extra information

Table Size: 2 x 860 x 570 mm
Max Workpiece Height: 520 mm
Comes with a variety of BT40 tool holders adequate for initial setup without requiring additional purchases.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
