➤ Used DOOSAN VC 510 For Sale | gindumac.com

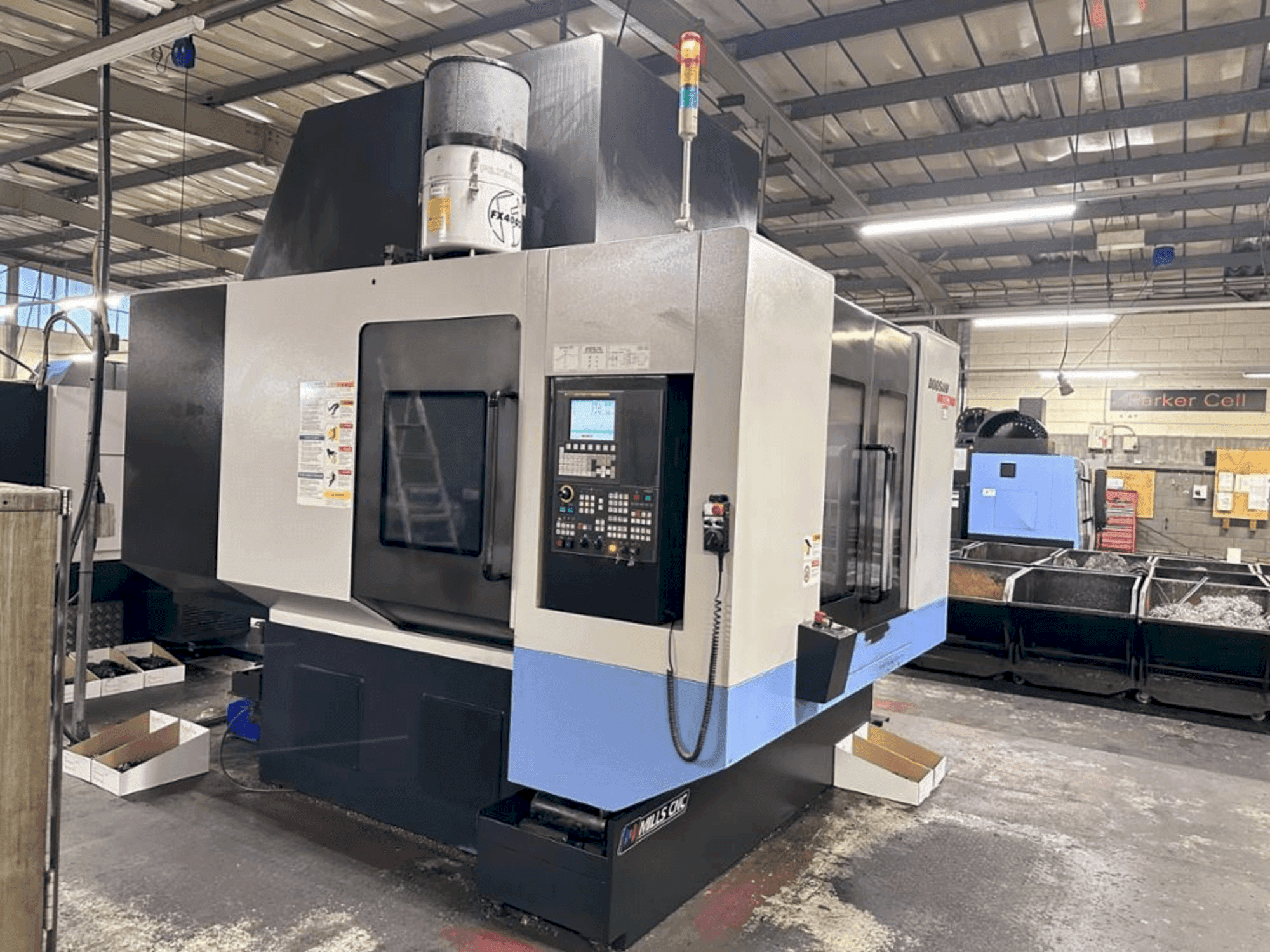

This 3-axis DOOSAN VC 510 was manufactured in 2014. It features a twin pallet vertical machining center with a table size of 2 x 860 x 570mm, a maximum workpiece height of 520mm, and a spindle speed of 10,000rpm. It includes a 40 tool ATC, X-axis travel of 762mm, Y-axis travel of 516mm, and Z-axis travel of 570mm. Consider the opportunity to buy this DOOSAN VC 510 vertical machining center. Contact us for further details regarding this machine.

Overview

brand: DOOSAN
year: 2014
MODEL: VC 510
production hours: 28446
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN VC 510

Control Unit

Brand: FANUC

Movement

X-AXIS Movement: 762 MM
Y-AXIS Movement: 516 MM
Z-AXIS Movement: 570 MM

Additional Information

Additional Equipment

Table Size: 2 x 860 x 570mm
Max Workpiece Height: 520mm
Comes with a selection of BT40 tool holders, sufficient to set up the machine without additional purchases.

Extra Information

Spindle Taper: BT40
Tool ATC: 40
Various BT40 Back End Spindle Tools and a selection of BT40 tool holders.
Pumps and Equipment WPB 10-1000 Hydrajet High Pressure Coolant System
Kaukan Chiller Unit
LNS Turbo HB Swarf Conveyor
Spindle Speed: 10000rpm
Dimensions of Machine (LxWxH): Not specified
Weight (kg): 9500

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
