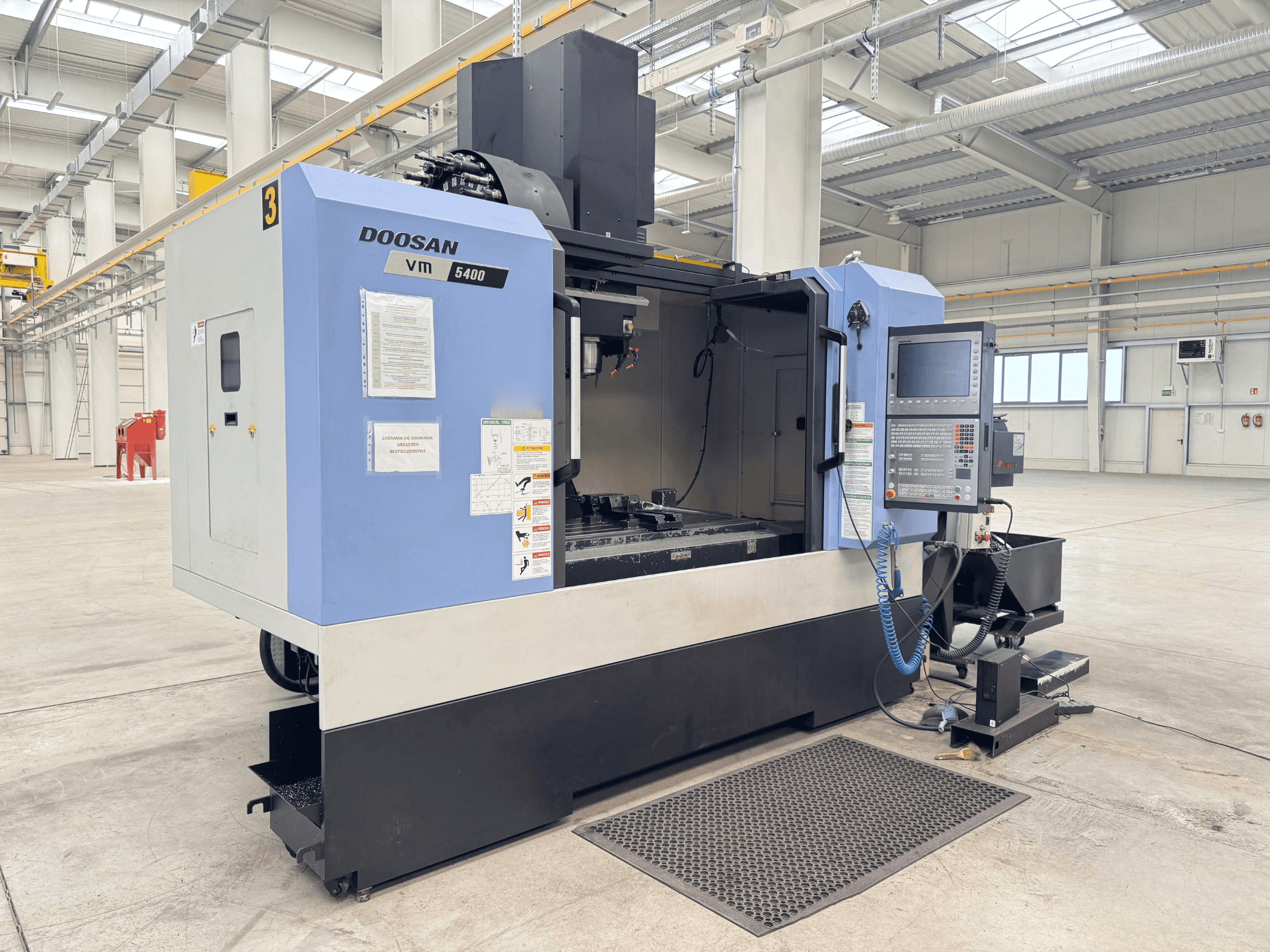

This 3-axis DOOSAN VM 5400 was manufactured in 2019. It features an impressive X-axis travel of 1020 mm, Y-axis travel of 540 mm, and Z-axis travel of 530 mm. The machine includes a robust table size of 1200 x 540 mm and a maximum table load of 800 kg. If you are looking to get high-quality machining capabilities, consider the DOOSAN VM 5400 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2019
- MODEL: VM 5400
- production hours: 6048
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DOOSAN VM 5400
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC620
Dimensions
- Machine Height: 3000 mm
- Machine Length: 3000 mm
- Machine Weight: 7000 kg
- Machine Width: 2600 mm
- Table Length: 1200 mm
- Table Load: 800 kg
- Table Width: 540 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1020 mm
- Y-axis Travel: 540 mm
- Z-axis Travel: 530 mm
Technical Specification
- Number of Tools: 30
- Spindle Power: 15.6 kW
- Spindle Speed: 12000 RPM
- Taper Size: ISO 40
Additional Information
Spindle taper: DIN 69871
Max. spindle torque: 165.5 N·m
Spindle cooling: VM-series standard
Tool magazine: Side-mounted ATC, cam-type
Machine hours:
Control on time: 13,616 h
Machine on time: 12,530 h
Program run time: 6,963 h
Axis motion time: 5,900 h
Spindle S1 time: 6,048 h
Additional equipment
Workpiece probe installed
Tool length measurement probe installed
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
