Dugard LUNAN 500A

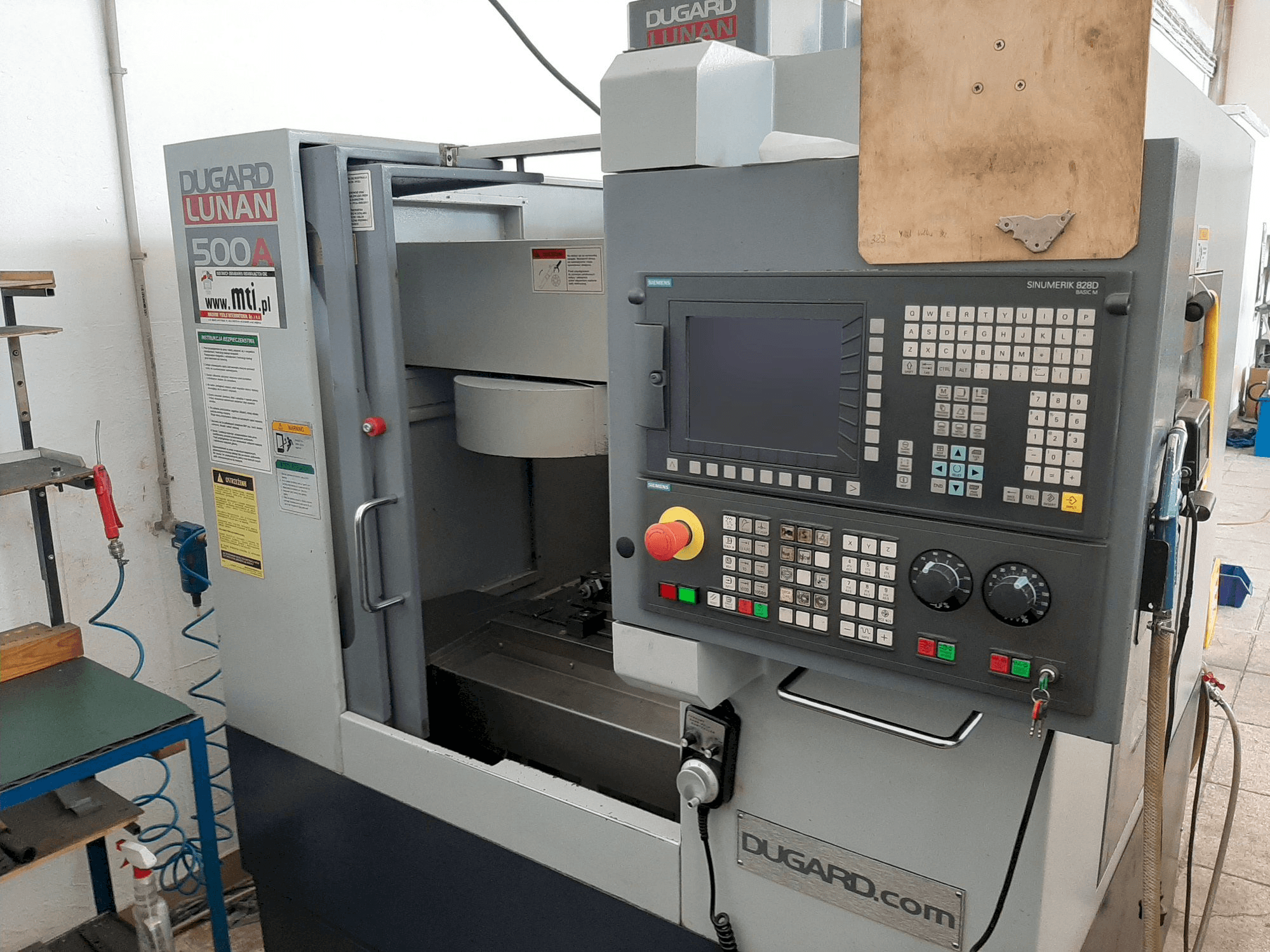

This Dugard LUNAN 500A vertical machine center was made in 2013. It is operated through a SIEMENS Sinumerik 828D control unit. This 3 axis machine has a spindle center to column of 360 mm and a table size of 800 x 320 mm. It is in very good working condition and with its full documentation available.

Overview

brand: Dugard
year: 2013
MODEL: LUNAN 500A
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Dugard LUNAN 500A

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 828D

Dimensions

Machine Depth: 1840 mm
Machine Height: 2110 mm
Machine Weight: 2500 kg
Table Length: 800 mm
Table Load: 300 kg
Table Width: 320 mm

Movement

Number of Axes: 3
X-axis Travel: 500 mm
Y-axis Travel: 320 mm
Z-axis Travel: 400 mm

Technical Specification

Max. Tool Weight: 5 kg
Spindle Power: 5.5 kW

Additional Information

Machine Benefits

Qualitative Machine Benefits

The machine is in very good working condition.
Today it is out of the production.
Full documentation available.

Technical Machine Benefits

Spindle nose to table 120-520 mm
Spindle center to column 360 mm
Umbrella type atc 10 tools
Tool change time 6 secs (umbrella)
Positioning accuracy x/y/z axis 0. 02 mm, 0. 012 mm
Re-positioning accuracy x/y/z axis 0. 012 mm, 0. 008 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
