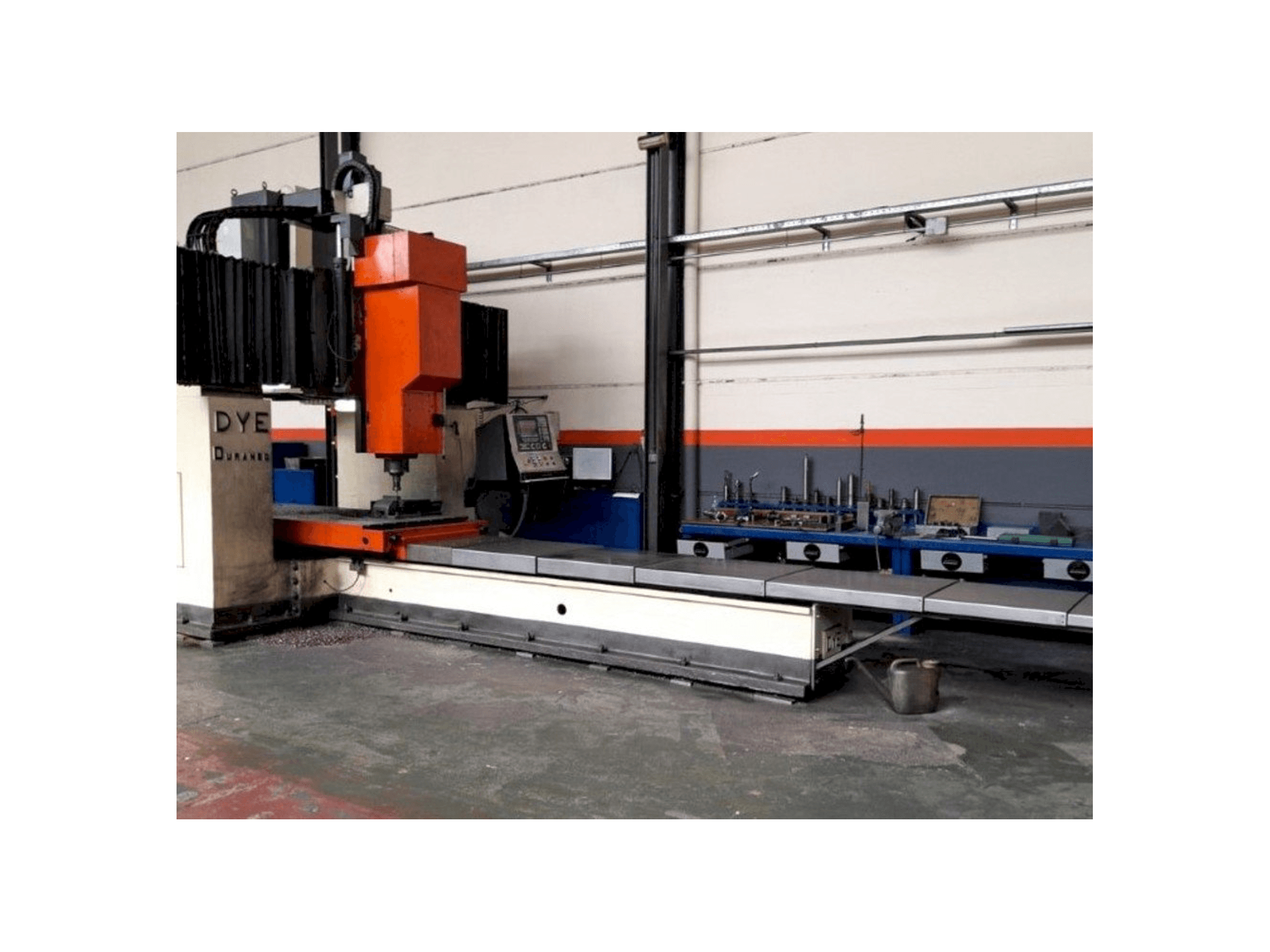

Front view of DYE FD-3600 machine

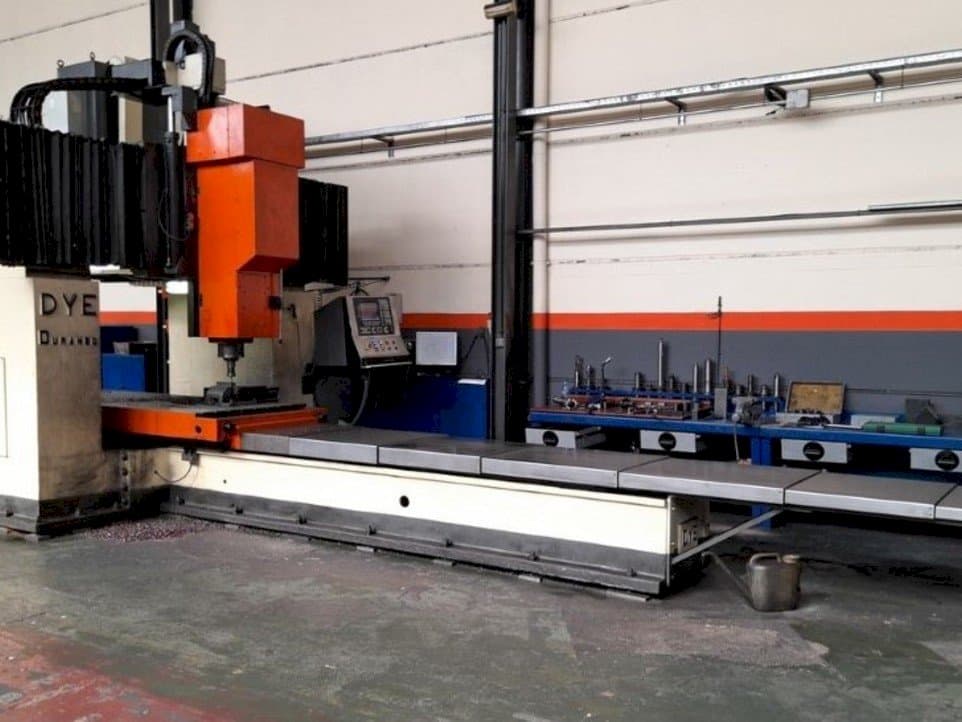

Front view of DYE FD-3600 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DYE - FD-3600ES-MIL-DYE-1998-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DYE FD-3600 Milling machine was built in 1998 and has been retrofitted in 2006. It operated through a Fagor 80551 control unit. This 3 axis machine has a spindle speed up to 2500 rpm, a table dimension of 4000 x 1250 mm and a double chip conveyor. Always good maintenance.

Overview

  • brand: DYE
  • year: 1998
  • MODEL: FD-3600
  • application type: Milling
  • Location: Spain
  • machine type: Bed Type Milling Machine
  • control unit brand: FAGOR

Technical Information - DYE FD-3600

Control Unit

  • Control Brand: FAGOR
  • Control Model: 80551

Dimensions

  • Machine Depth: 4800 mm
  • Machine Height: 5800 mm
  • Table Length: 4000 mm
  • Table Width: 1250 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 3600 mm
  • Y-axis Travel: 2000 mm
  • Z-axis Travel: 1200 mm

Technical Specification

  • Spindle Speed: 2500 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

  • Control unit replaced in 2017
  • Retrofitting in 2006
  • Always good maintenance

Technical Machine Benefits

  • Distance between columns: 1800 mm
  • Max. Milling width: 2000 mm
  • Double chip conveyor
  • Range of tools and accesories

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
