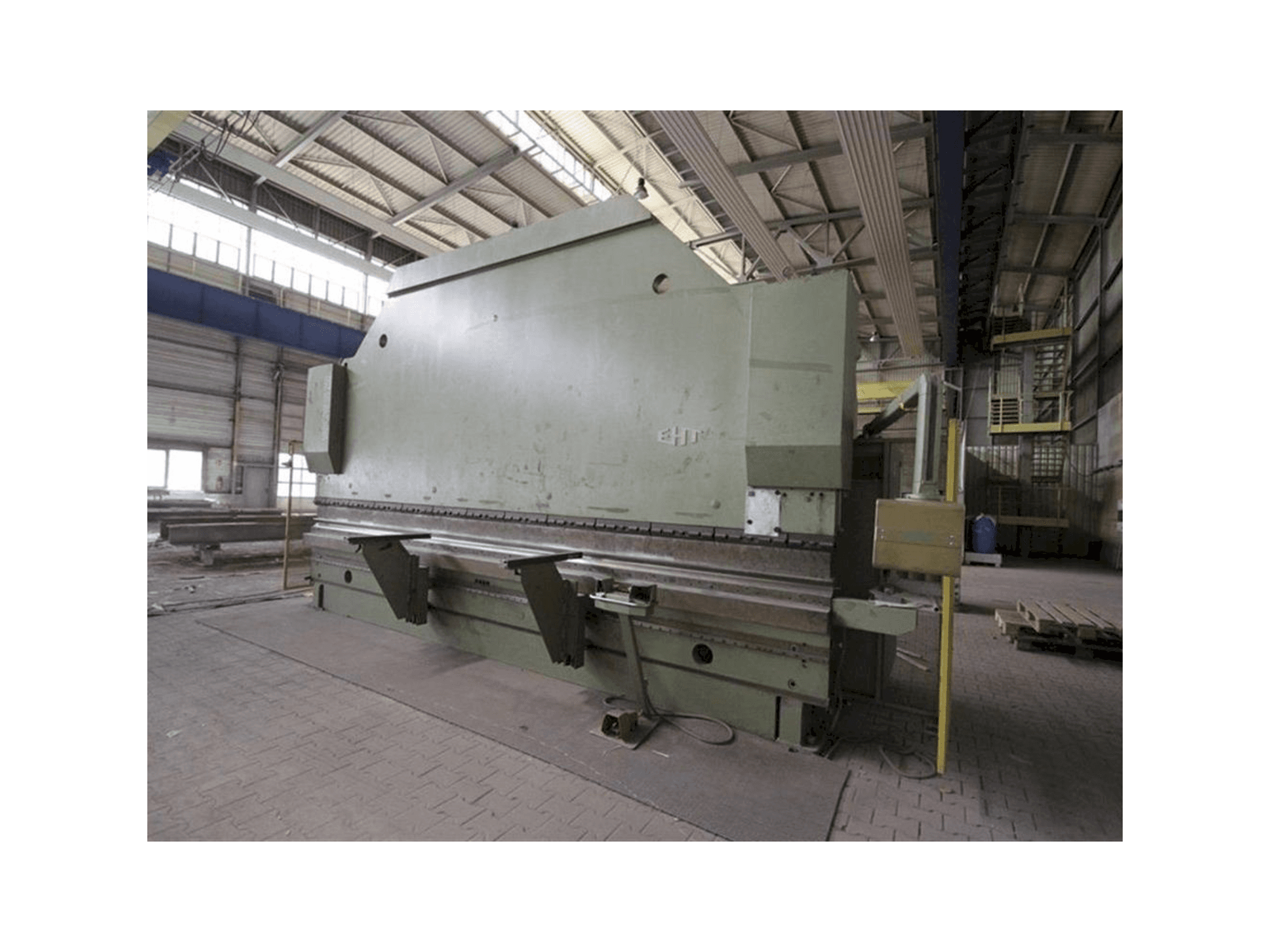

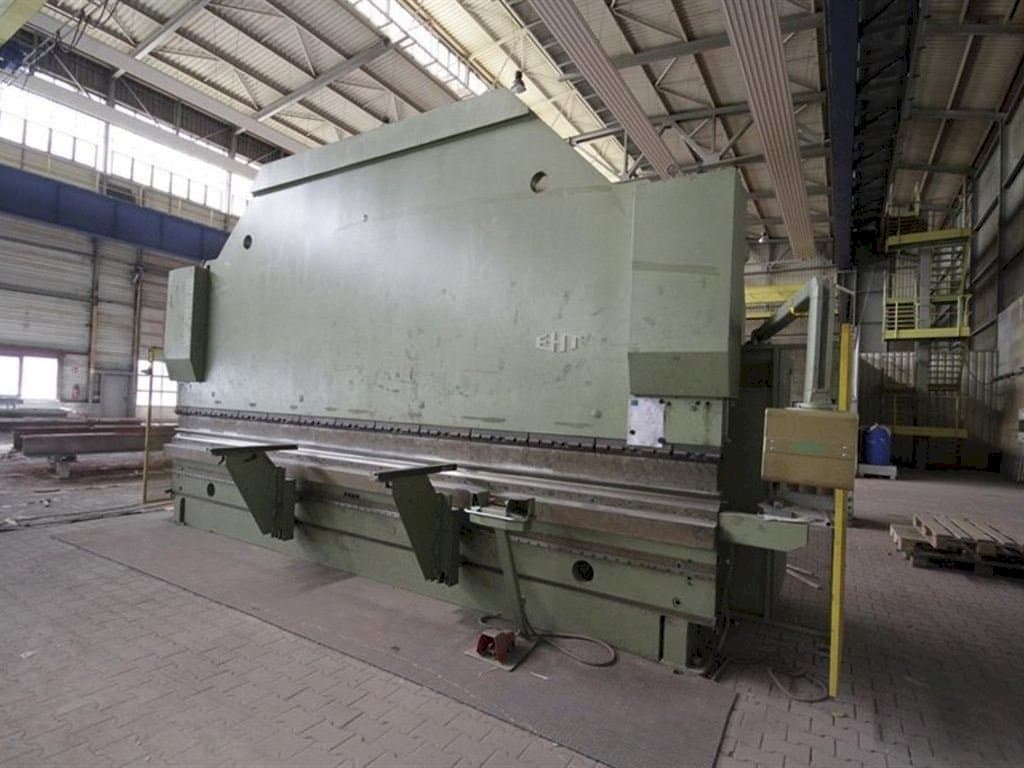

This Hydraulic press brake EHT Variopress 250-60 with a controlled rear length stop system was built in the year 1998. It is equipped with a Cybelec DNC70 control unit. The machine has a pressing force of 2500 kN and a bending length of 6050 mm.
Overview
- brand: EHT
- year: 1998
- MODEL: Variopress 250 60
- application type: Bending
- Location: Germany
- machine type: Press Brake
- control unit brand: CYBELEC
Technical Information - EHT Variopress 250 60
Control Unit
- Control Brand: CYBELEC
- Control Model: DNC70
Dimensions
- Machine Depth: 3900 mm
- Machine Height: 4070 mm
- Machine Weight: 42800 kg
Technical Specification
- Bending Length: 6050 mm
- Pressing Force: 2500 Kn
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Hydraulic press brake eht variopress 250-60 with controlled rear length stop system
- The eht press brake has a foundation for the lower beam due to the high power and bending width of 6000 mm.
- The press brake is ready for demonstration and in good condition
Technical Machine Benefits
- Distance between machine uprights: 5550 mm
- Column projection: 350 mm
- Ram stroke: 270 mm
- Distance between table and ram: min. 360 mm to max. 630 mm
- Stroke speed: idle max. 100 mm/s, press stroke max. 8 mm/s, retract max. 100 mm/s
- Column width: 5550 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
