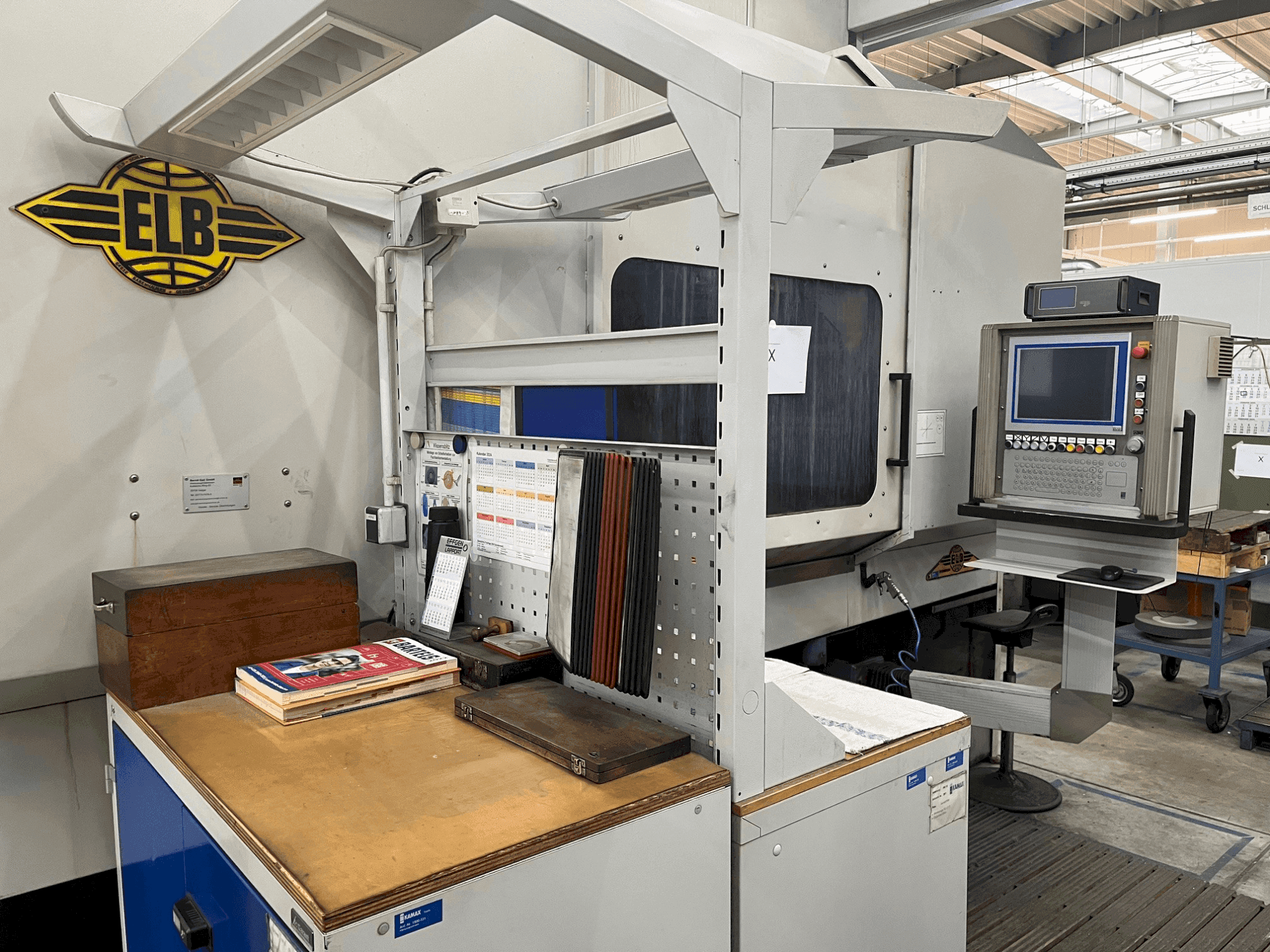

ELB MICROCUT B08

Photo Gallery

ELB - MICROCUT B08DE-GRI-ELB-1994-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used ELB MICROCUT B08 - Grinder For Sale | gindumac.com

This ELB MICROCUT B08 grinding machine was manufactured in 1994. Consider the opportunity to buy this ELB MICROCUT B08 grinding machine. Contact us for more information.

Overview

brand: ELB
year: 1994
MODEL: MICROCUT B08
application type: Grinding
Location: Germany
machine type: Surface Grinding Machine

Technical Information - ELB MICROCUT B08

Dimensions

Machine Depth: 4500 mm
Machine Height: 2650 mm

Technical Specification

Spindle Power: 60 kW
Spindle Speed: 1500 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Technical machine benefits: machine base frame micro granite for excellent damping properties and outstanding thermal behavior.
Qualitative machine benefits: high-precision bearings of class p2 for grinding units.

Technical Machine Benefits

Operating voltage: 3x400 v /frequency: 50 hz / total power supply: 83 kw
Max. Fuse protection: 100 a
Control voltage i: 230 vac / control voltage ii: 24 vdc
Wiring diagram no: e40045
Work table: material: meehanite (cast iron), surface: plastic-coated, clamping area: 1580 x 400 mm, t-slots: 3 slots, 16 mm
Grinding wheel diameter: maximum: 550 mm
X-axis: table longitudinal movement /y-axis: vertical adjustment of the grinding wheel/ z-axis: cross movement
Adjustment for the machine in the protective enclosure
Control panel: coating: ral 1015, ergonomically designed

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
