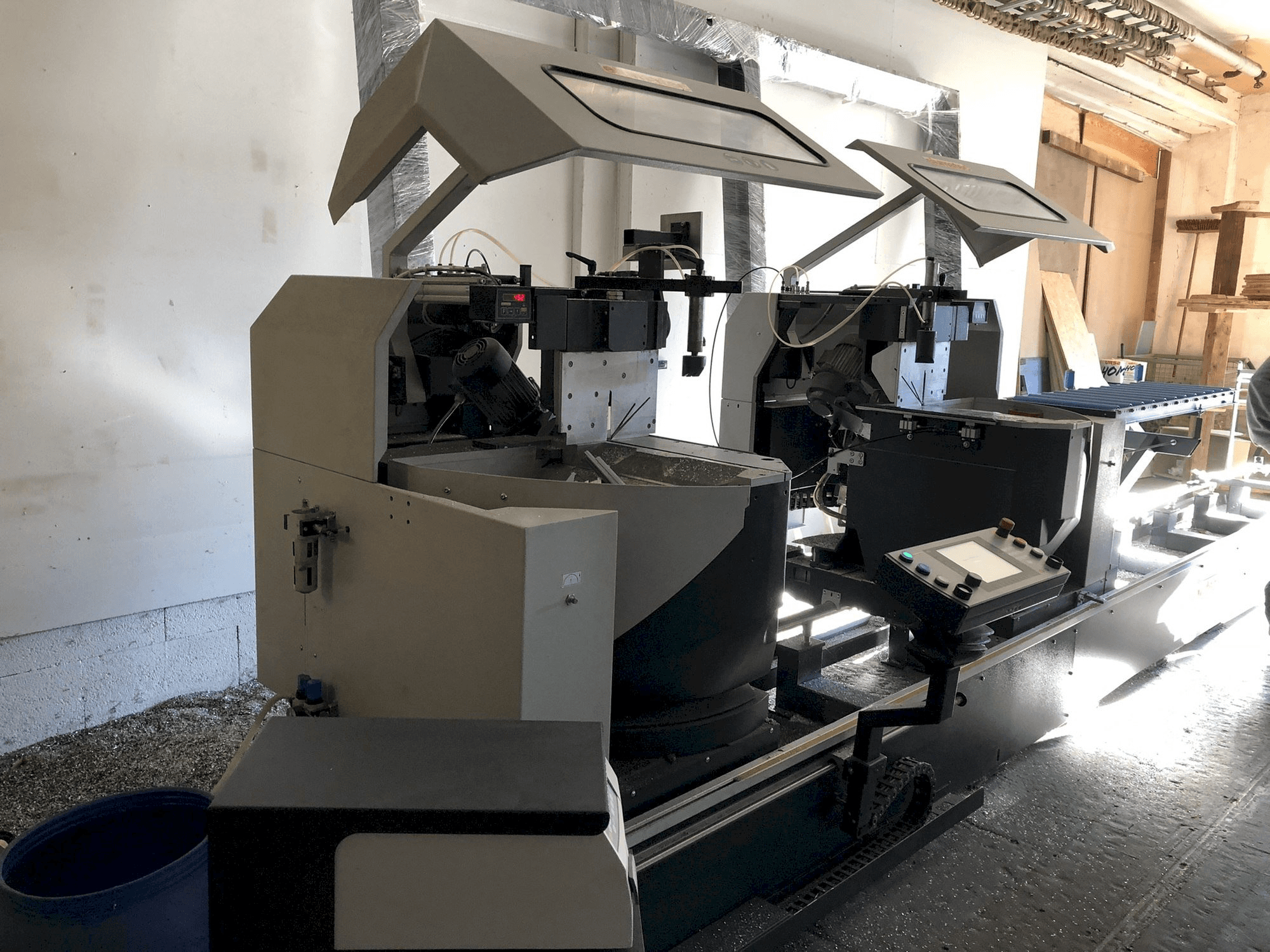

Front view of Elumatec DG 244  machine

Elumatec - DG 244DE-SAW-ELU-2013-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Elumatec DG 244 sawing machine was manufactured in Germany in the year 2013. It is controlled by an Elumatec E555 control unit. The machine has a saw blade speed of 2250 rpm.

Overview

  • brand: Elumatec
  • year: 2013
  • MODEL: DG 244
  • application type: Sawing
  • Location: Germany
  • machine type: Sawing machines
  • availability: Sold
  • control unit brand: Elumatec

Technical Information - Elumatec DG 244

Control Unit

  • Brand: Elumatec
  • Model: E555

Media

  • Main electronic connection: 230/400 V, 3~, 50 Hz
  • Power consumption: 4 kw

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Smallest cutting length at 90° 375 mm
      • - Smallest cutting length at 45° inclined 375 mm
      • - Pivoting range inwards pneumatically 90° - 45°
      • - Tilt range inwards pneumatically 90° - 45°
      • - Saw blade diameter 550 mm
      • - Saw blade speed 2. 250 1/min.
      • - Compressed air supply 7 bar
      • - Air consumption per working cycle 40 l without spraying, 64 l with spraying

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
