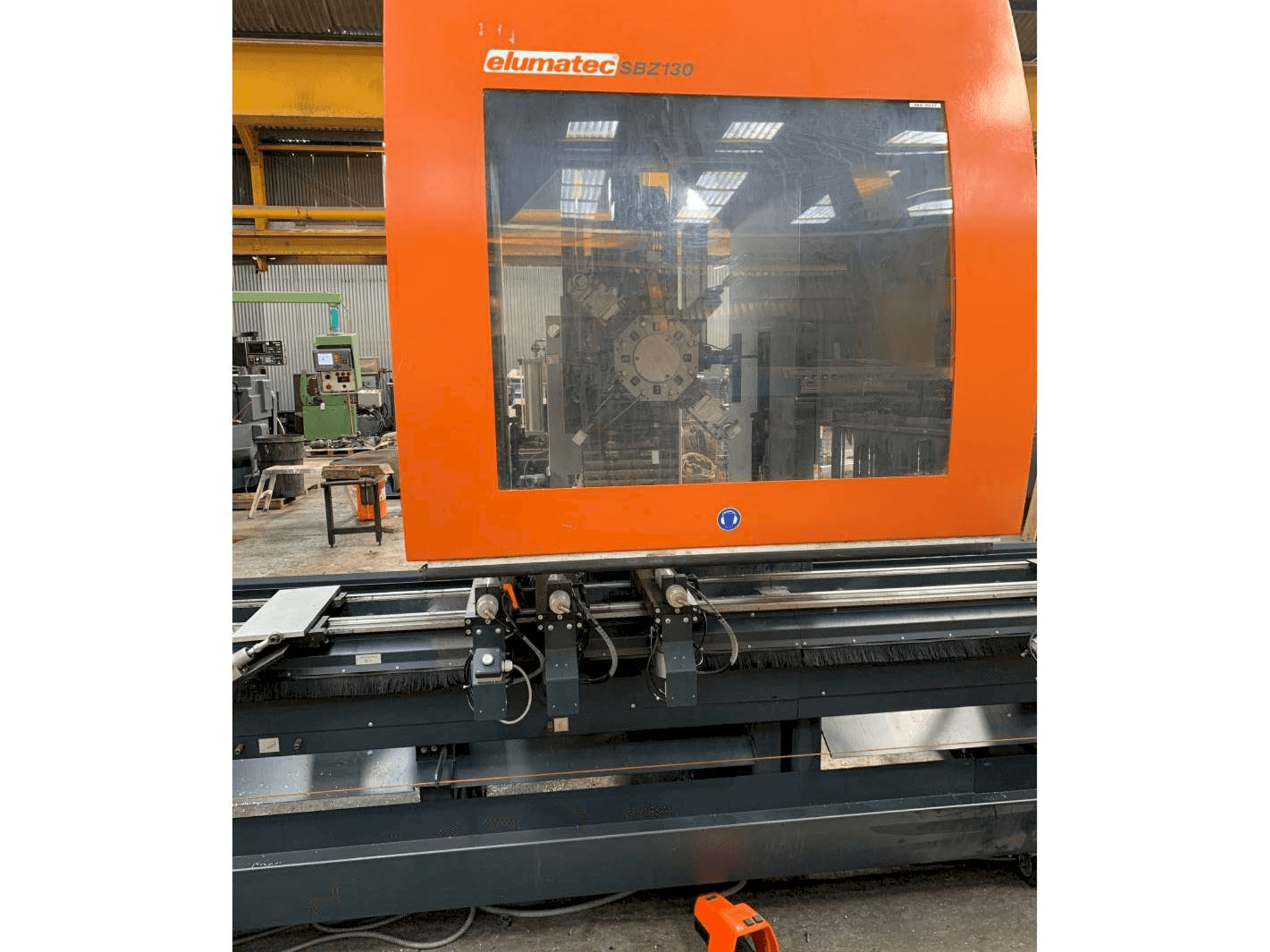

Elumatec SBZ 130 Vertical Machining Center

This Elumatec SBZ 130 Vertical Machining Center was made in the year 2005. It is equipped with an Elumatec control unit. The machine has a spindle speed of 6000 rpm.

Overview

brand: Elumatec
year: 2005
MODEL: SBZ 130
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Elumatec SBZ 130

General Data

Measurements width: 10350 mm
Measurements depth: 2600 mm
Measurements height: 2950 mm
Machine weight: 6000 kg

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 5.5 kw

Movement

X-AXIS Movement: 7200 mm
X-AXIS Rapid traverse: 0 – 60m/min
Y-AXIS Movement: 480 mm
Y-AXIS Rapid traverse: 0 – 30m/min
Z-AXIS Movement: 325 mm
Z-AXIS Rapid traverse: 0 – 30m/min

Media

Main electronic connection: 415v, 3ph, 50 Cycles

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle taper: bt30
- - Collet chuck: er32
- - Right angled collet chuck: s15
- - Tool change time: 1. 2 seconds
- - Maximum tool diameter: 80 mm
- - Max cutting disc diameter: 200 mm
- - 8 position turret
- - 9 pneumatic clamps
- - Swarf conveyor
- - 6 no straight tools
Qualitative Machine Benefits:
- - 2 no right-angled
- - Tools light guards
- - Light guards
- - Wandering hand control
- - 4 no foot valves
- - Manuals

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
