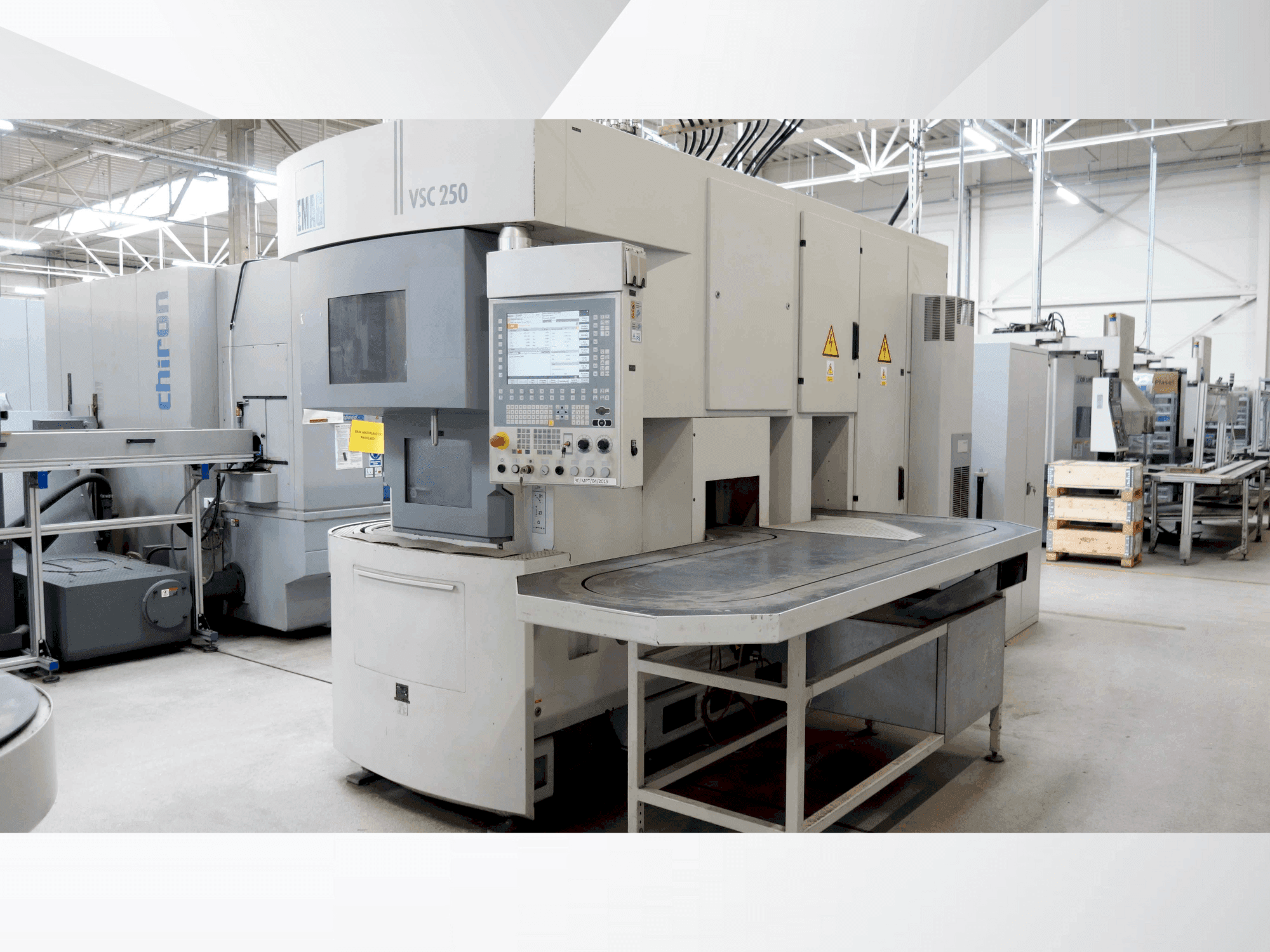

Front view of EMAG VSC 250  machine

EMAG - VSC 250DE-TUR-EMA-2011-00003

105,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

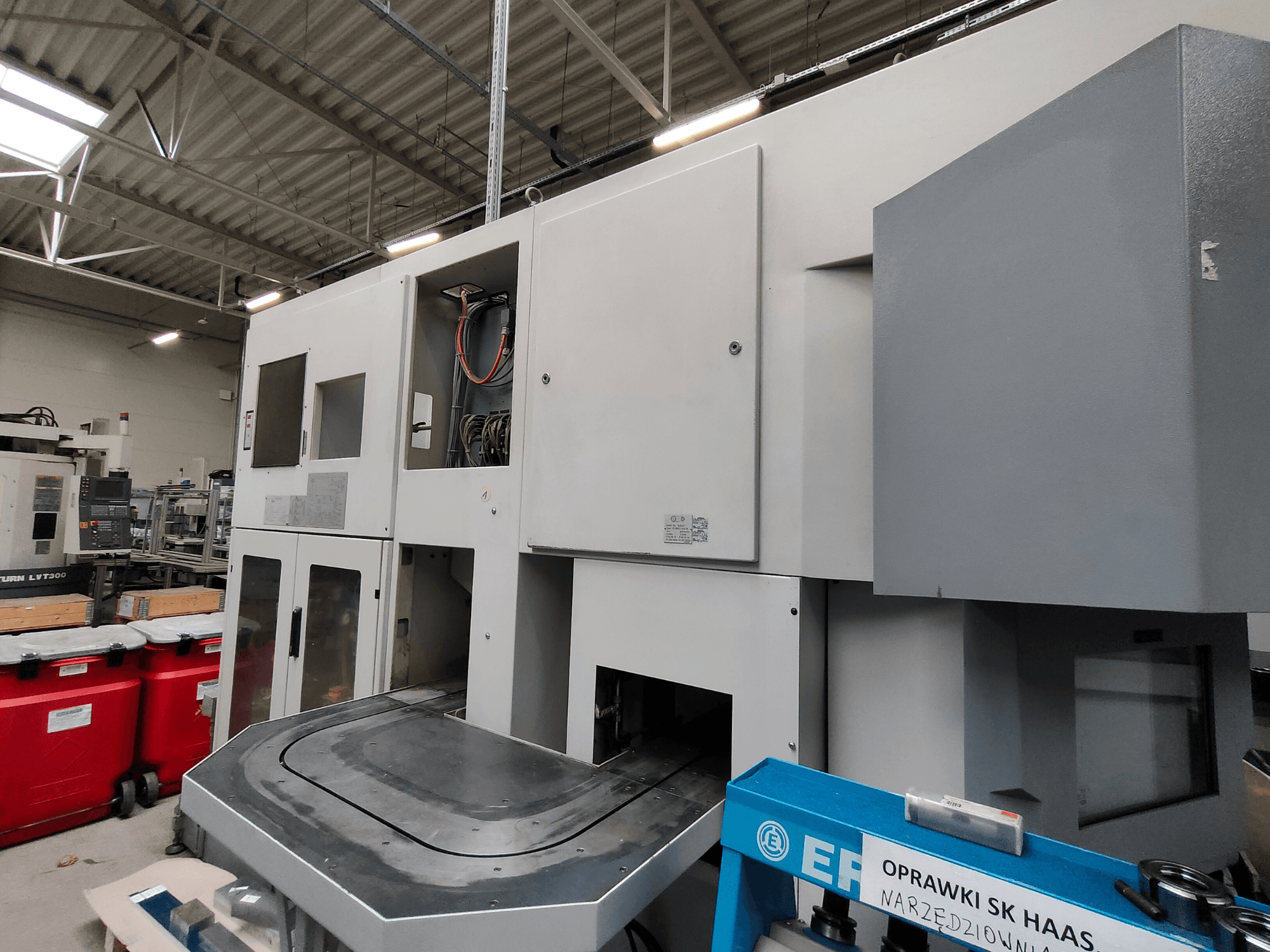

This EMAG VSC 250 vertical turning machine was manufactured in 2011. It features a Siemens SINUMERIK 840Dsl control system, a robust hydraulic 6-jaw chuck, and a flange turret with 12 tool positions. With a spindle speed up to 4500 rpm and a main spindle drive power of 28kW at 40% duty cycle, it's ideal for precise, efficient operations. For more information about this vertical turning machine, please reach out to us.

Overview

  • brand: EMAG
  • year: 2011
  • MODEL: VSC 250
  • application type: Turning
  • Location: Germany
  • machine type: Vertical Turning Machine
  • availability: Immediately
  • control unit brand: Siemens

Technical Information - EMAG VSC 250

General Data

  • Measurements width: 1500 MM
  • Measurements depth: 3900 MM
  • Measurements height: 3200 MM
  • Machine weight: 7000 KG

Control Unit

  • Brand: Siemens
  • Model: SINUMERIK 840Dsl with integrated PLC S7-300

Main drive

  • Spindle speed range: 4500 1/MIN
  • Spindle motor power: 18 kW (100% duty cycle), 28 kW (40% duty cycle)
  • Tool taper: DIN 55026 - A6

Movement

  • X-AXIS Movement: 745 mm
  • X-AXIS Feed Force: 10 kN
  • X-AXIS Rapid traverse: 60 m/min
  • Z-AXIS Movement: 300 mm
  • Z-AXIS Feed Force: 10 kN
  • Z-AXIS Rapid traverse: 30 m/min

Workpiece

  • Workpiece weight: 6 kg

Tools

  • Slots in storage: 12

    Additional Equipment

    • - Hydraulic 6-jaw special chuck from EMAG with face clamping device and central lubrication
    • - 15-inch TFT monitor
    • - V24 interface

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Spindle torque: 300 nm
        • - Vdi shaft diameter: 40 mm
        • - Maximum speed of driven tools: 6000 rpm
        • - Maximum torque of driven tools: 40 nm / 8. 5 kw
        • - Coolant system standard delivery pressure: 7 bar maximum delivery pressure: 7 bar internal coolant supply pressure range: 7 bar (non-adjustable) coolant tank capacity: 360 liters
        • - Chuck model: 6agf 260 k6 k14
        • - Chuck diameter: 260 mm
        • - Chuck weight: 57 kg
        • - Maximum clamping force for internal clamping (50 bar): 12. 8 kn
        • - Maximum clamping force for external clamping (50 bar): 4. 2 kn
      • Qualitative Machine Benefits:
        • - Machine from single-shift operation
        • - Maximum room temperature: up to 30°c
        • - Maximum humidity: 50%
        • - Sound pressure level: 78 db(a)
        • - 2nd unit with yom 2014 available

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
