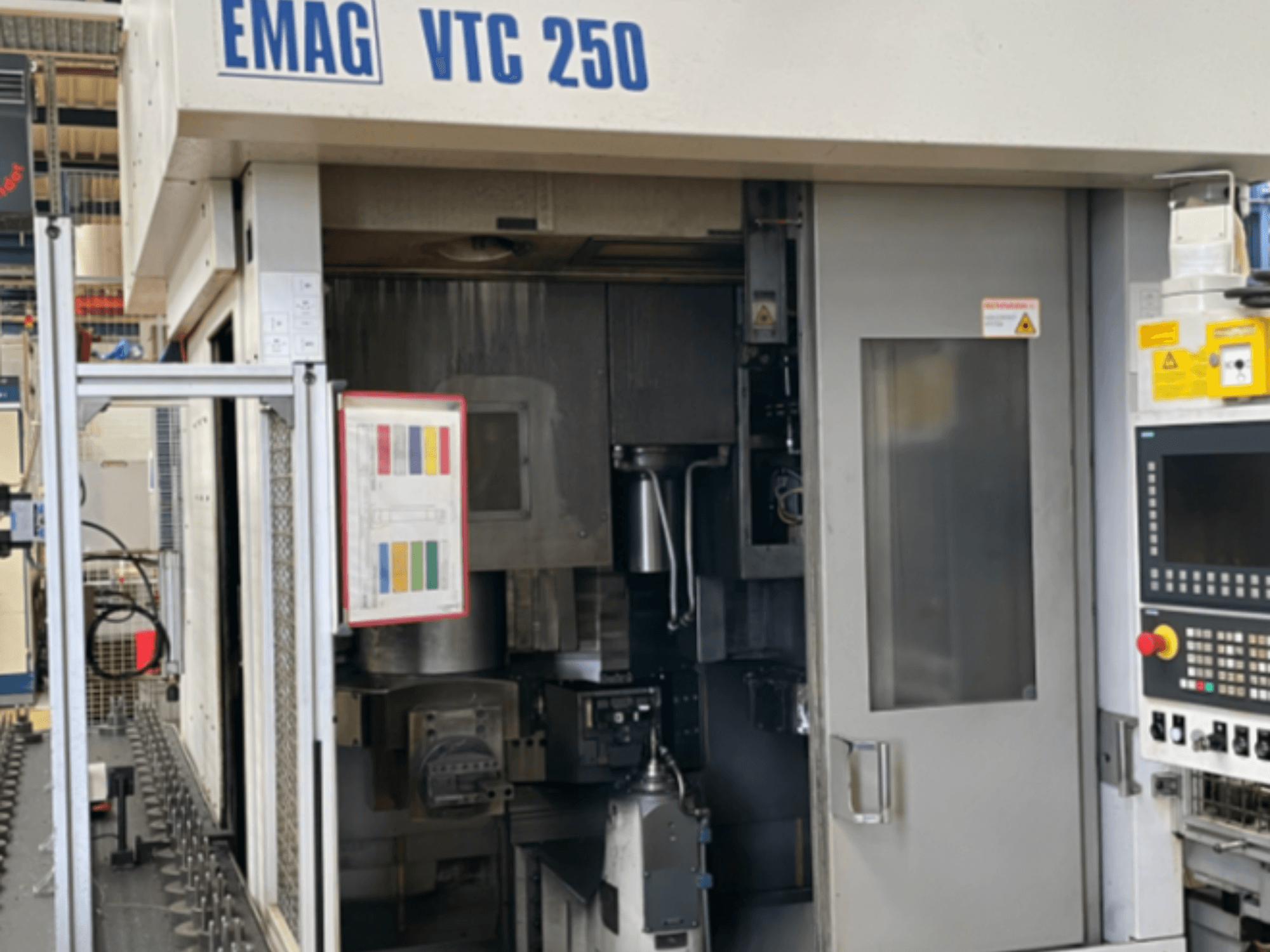

This 4-axis EMAG VTC 250 vertical turning machine was manufactured in 2009. It features a maximum workpiece diameter of 140 mm and a workpiece length of 630 mm. The machine is equipped with a chuck diameter of 250 mm and a maximum spindle speed of 5,000 rpm. If you are looking to get high-quality turning capabilities, consider the EMAG VTC 250 machine we have for sale. Contact us for further details.
Overview
- brand: EMAG
- year: 2009
- MODEL: VTC 250
- application type: Turning
- Location: Switzerland
- machine type: Vertical Turning Machine
Technical Information - EMAG VTC 250
Movement
- Number of Axes: 4
- X-axis Travel: 530 mm
- Z-axis Travel: 750 mm
Technical Specification
- Driven Tools: Yes
- Spindle Power: 38 kW
- Spindle Speed: 5000 RPM
- Tool Stations: 22
Additional Information
- Workpiece Diameter Max: 140 mm
- Workpiece Length Max: 630 mm
- Chuck Diameter: 250 mm
- Main Spindle Speed Max: 5,000 rpm
- Main Spindle Power (40% ED): 38 kW
- Main Spindle Torque (40% ED): 450 Nm
- Rapid Traverse Rate X / Z: 30 / 40 m/min
- Tool Taper: VDI 40
- Number of Turrets: 2
- Total Tool Stations: 2 x 11 (22 stations total, all live capable)
- Integrated Automation: Self-loading pick-up spindle design with workpiece storage tracks
- the technical specifications may vary slightly
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
