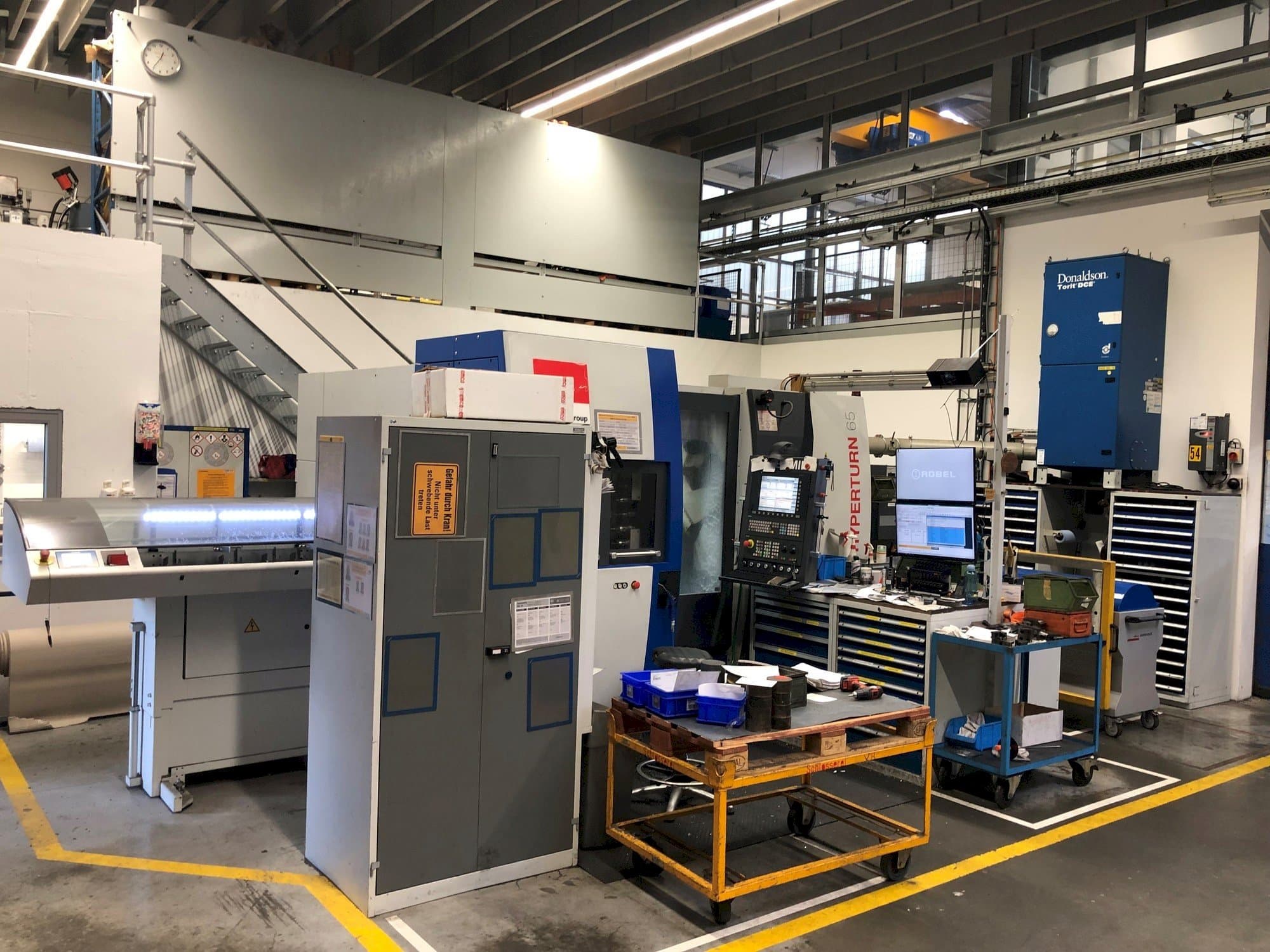

Front view of EMCO HYPERTURM 65 PM machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

EMCO HYPERTURN 65 PM

Photo Gallery

EMCO - HYPERTURN 65 PMDE-TUR-EMC-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
EMCO HYPERTURN 65 PM CNC turning milling center

This EMCO HYPERTURN 65 PM CNC turning milling center was manufactured in the year 2019 and has 13650 production hours. It is equipped with a SIEMENS control unit. The machine has a spindle speed of 12000 rpm.

Overview

brand: EMCO
year: 2019
MODEL: HYPERTURN 65 PM
production hours: 13650
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - EMCO HYPERTURN 65 PM

Control Unit

Brand: SIEMENS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 29kW

Additional Information

Machine Benefits

Qualitative Machine Benefits

Max. Torque: 250nm
Irco bar feeder: rods up to 1200 mm length
Milling spindle and turret incl. Milling drive
Siemens main spindle: kk6 (max. Bar capacity Ø 65mm) 230 v socket on control panel
B-axis with +/- 110° swivel range
Y-axis with +120 / -100 mm travel range
C-axis for main and counter spindle coolant device integrated in chip conveyor
Bar passage 3 inch (Ø 76. 2mm) instead of Ø 65mm (main spindle), max. Speed: 4000 rpm max. Torque: 250nm max. Power: 29kw max. Chuck size: Ø 250mm
Vdi 40 for ht65-pm tool system vdi 40 replaces vdi 30 for ht65-pm/mt65 1000 with driven tools on the turret! Max. Speed: 4500 rpm max. Torque: 25 nm max. Power: 6. 7 kw drive coupling: din5480
80-fold chain hsk-t63 an 80-fold chain magazine replaces the 20-fold disk magazine from the basic machine

Technical Machine Benefits

Milling spindle and turret incl.
Max. Bar capacity Ø 65mm
Main spindle: kk6
Socket at control panel
B-axis with +/- 110° swivel range
Y-axis with +120 / -100 mm traverse path
Rod passage: Ø 76. 2mm
Draw tube connection: m85 x 2
Spindle connection (din 55026): a2-8
Max. Chuck size: Ø 250mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
