EMCO - Hyperturn 690MC Plus BSK-TUR-EMC-2011-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- EMCO Hyperturn 690MC Plus B Lathe

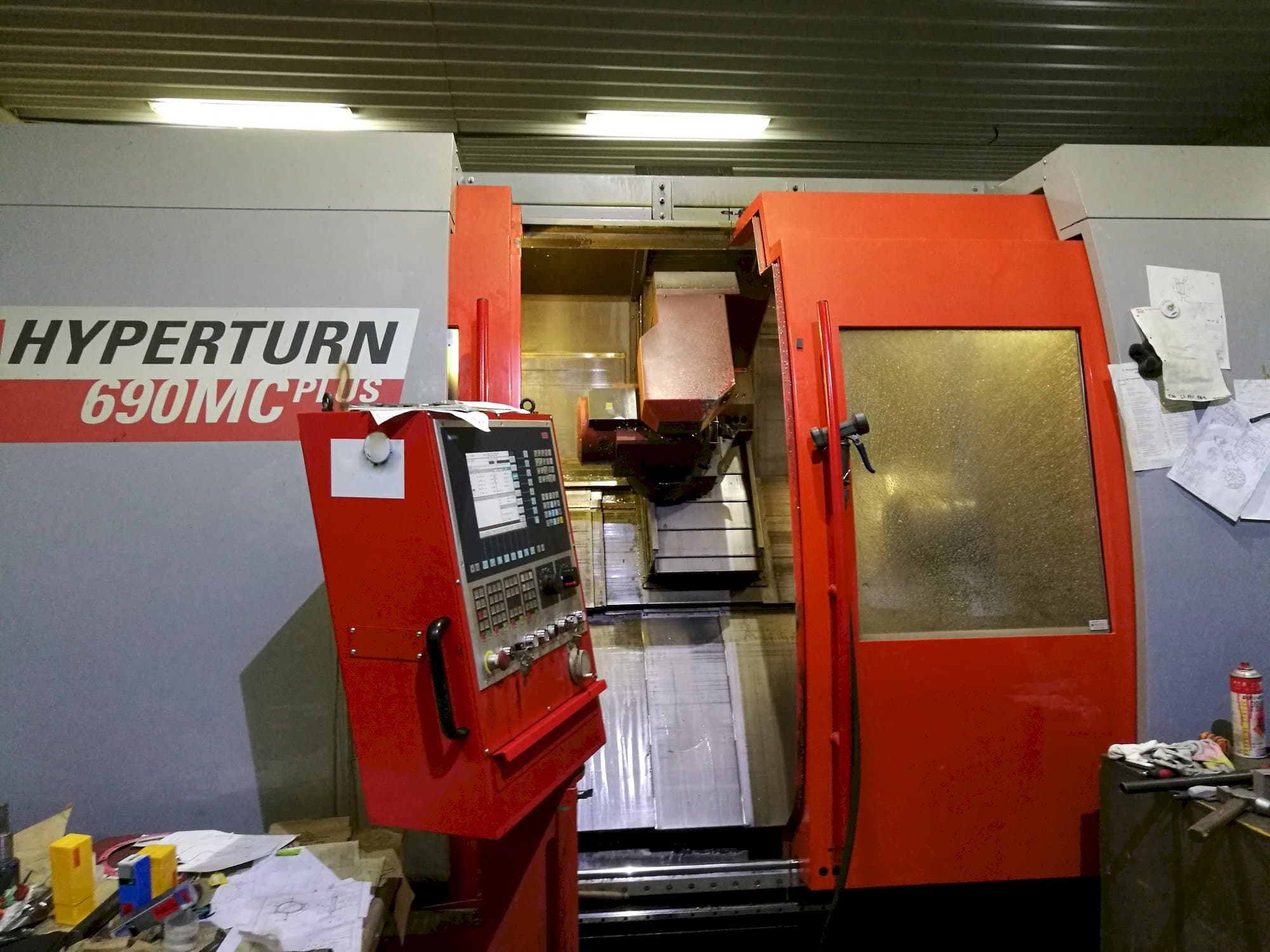

This EMCO Hyperturn 690MC Plus B Lathe was manufactured in 2011 in Italy and has been working for 6803 hours. Equipped with a Siemens 840D Powerline control unit, this machine presents a perfectly good maintained status.
Overview
- brand: EMCO
- year: 2011
- MODEL: Hyperturn 690MC Plus B
- production hours: 6803
- application type: Turning
- Location: Slovakia
- machine type: Turn-Mill Centre
- control unit brand: SIEMENS
Technical Information - EMCO Hyperturn 690MC Plus B
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D Powerline
Dimensions
- Machine Depth: 4324 mm
- Machine Height: 2754 mm
- Machine Weight: 15500 kg
Movement
- C-axis: 0.001°
- X-axis Travel: 490 mm
- Y-axis Travel: 200 mm
- Z-axis Travel: 1110 mm
Technical Specification
- Number of Tools: 48
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Low hours
- Emco tool monitoring system
- Main hydraulic brake 1100 nm
- Software option for gear milling
Technical Machine Benefits
- Swing over bed 700 mm
- Turning diameter max. 520 mm
- Length between spindles 1500 mm
- Tool turret 12 driven tool stations - vdi 40 quick change system
- Axes x1/x2 stroke 490/280 mm
- Axes z1/z2 stroke 1110/1090 mm
- Main spindle bar capacity 95 mm
- Main spindle/sub spindle power 54/25 kw
- Main spindle/subspindle rpm 3200
- Milling head rpm 7000
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
