EMCO - TURN 332 MCPlusDE-TUR-EMC-2006-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used EMCO TURN 332 MCPlus For Sale | gindumac.com

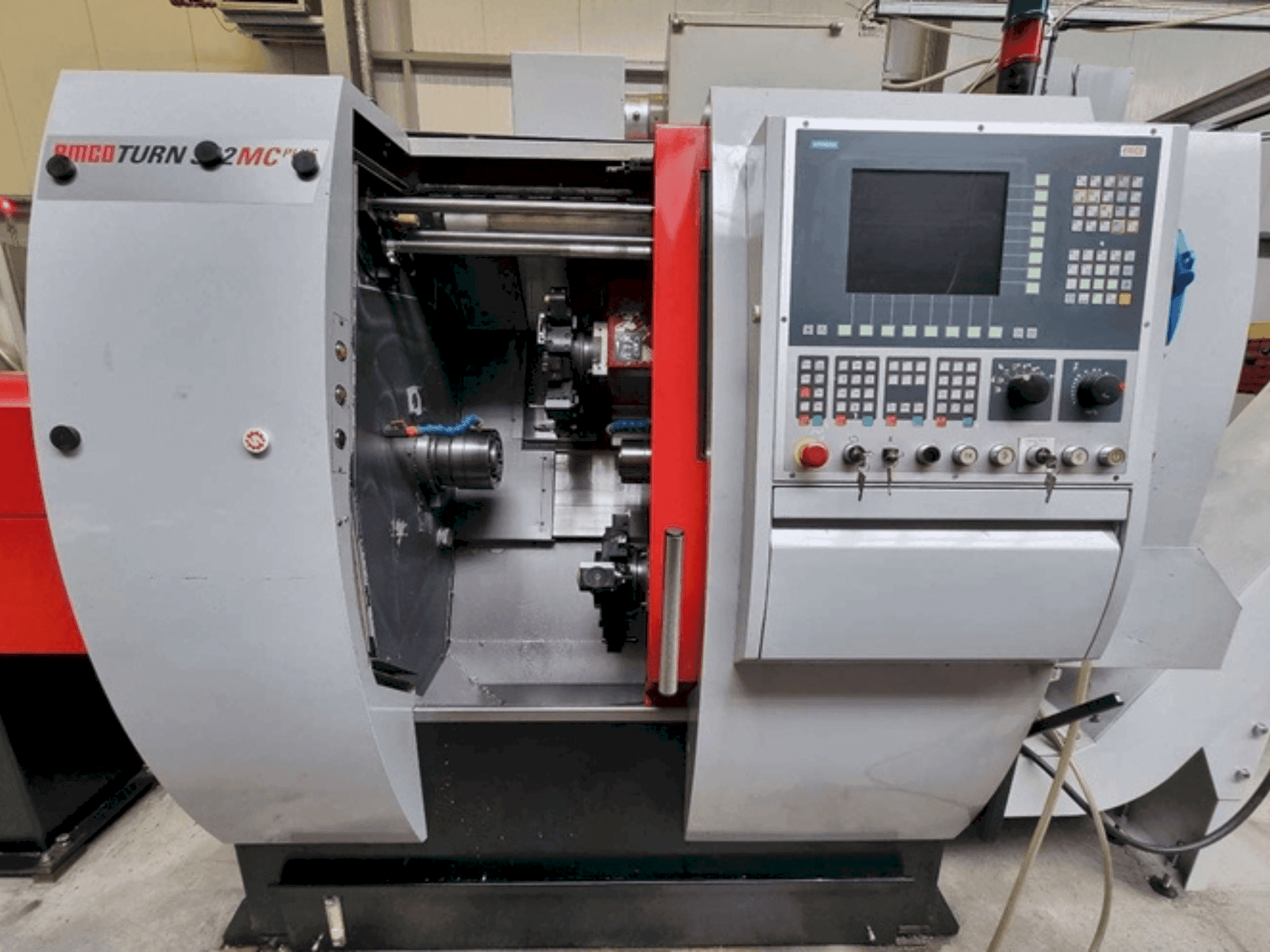

This 4-axis EMCO TURN 332 MCPlus was manufactured in 2006. It features a CNC lathe with a drive power of 10 KW, main spindle speeds up to 6300 rpm, and counter spindle speeds up to 7000 rpm. Equipped with two 12-slot tool turrets VDI 25, it supports up to 24 driven tools. The machine includes a Sinumerik 840D control, chip conveyor, and a 800mm bar feeder for bars ranging from 6-45 mm in diameter. Contact us for more information.
Overview
- brand: EMCO
- year: 2006
- MODEL: TURN 332 MCPlus
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - EMCO TURN 332 MCPlus
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D
Movement
- Number of Axes: 4
Technical Specification
- Spindle Power: 10 kW
- Spindle Speed: 6300 RPM
Additional Information
Additional equipment
Emco standard bar feeder interface
Oil mist separator
2 coolant pumps for spindle flushing
2 high-pressure coolant pumps (10 bar)
Parts ejector with flushing through counter spindle
Short bar feeder
Sauter turret.
Machine Benefits
Technical Machine Benefits
In 2024, the counter spindle motor was completely overhauled, and the cylinder of the 800 mm bar loader was replaced.
Bar diameter: 6-45 mm
Bar length: 100-800 mm
2 x 12-slot tool turret vdi 25
For up to 2 x 12 driven tools
Provided with 15 tool holders and 15 collets
Extra Information
Headstock size 45 with spindle connection KK5 (DIN 55026) C-axis for main and counter spindle
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
