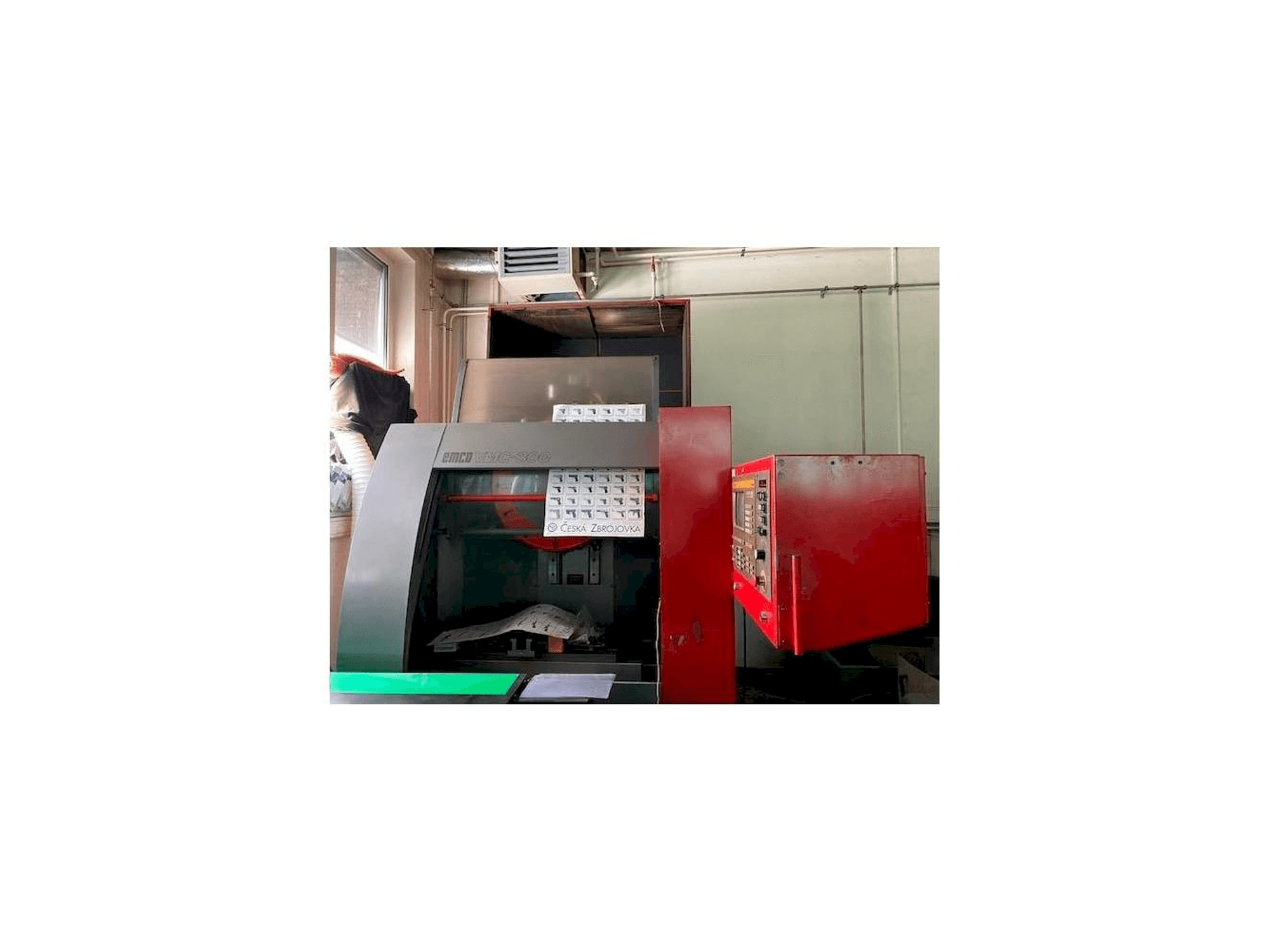

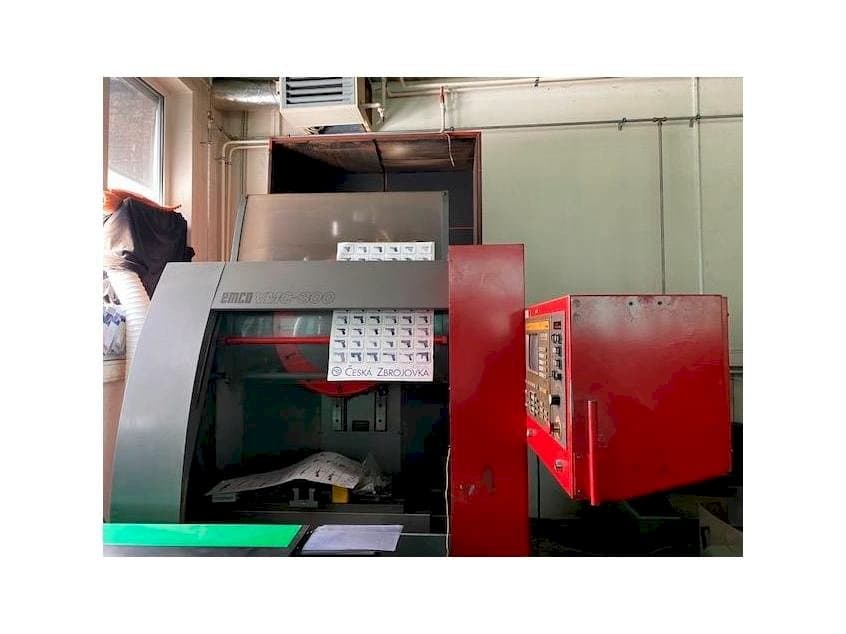

This EMCO VMC 300 Vertical Machining Center was manufactured in the year 2003 in Austria. It is equipped with a Siemens SINUMERIK 810D control unit. The machine features a 12-position automatic tool changer, an SK40 spindle with speeds up to 5,000 rpm, and travels of 420 × 330 × 240 mm (X/Y/Z), making it suitable for precise milling, drilling, and tapping operations. For more information, contact us.
Overview
- brand: EMCO
- year: 2003
- MODEL: VMC 300
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - EMCO VMC 300
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 810D
Dimensions
- Machine Depth: 2300 mm
- Machine Height: 2450 mm
- Machine Length: 2300 mm
- Machine Weight: 2900 kg
- Machine Width: 2400 mm
- Table Length: 850 mm
- Table Load: 150 kg
- Table Width: 325 mm
Movement
- Number of Axes: 3
- X-axis Travel: 420 mm
- Y-axis Travel: 330 mm
- Z-axis Travel: 240 mm
Technical Specification
- Max. Tool Weight: 5 kg
- Max. Workpiece Height: 190 mm
- Positioning Accuracy: 4 µm
- Spindle Power: 9 kW
- Spindle Speed: 5000 RPM
- Taper Size: SK 40
- Tool Stations: 12
Additional Information

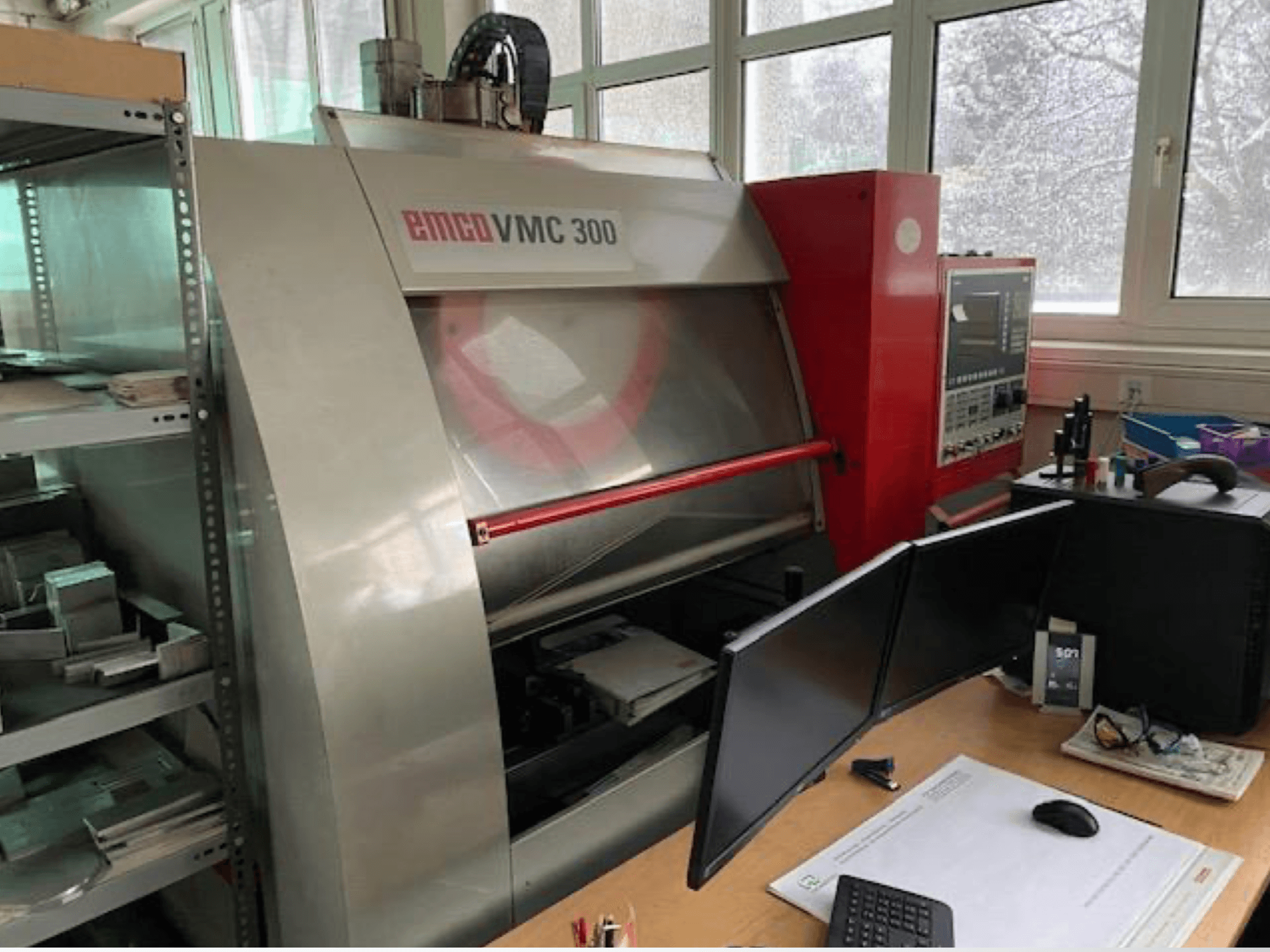

2x units available (one newer and one older) with different Control Brands
Distance from Spindle Nose to Table: 210 – 450 mm
Number of T-Slots: 3
T-Slot Width: 14 mm
T-Slot Spacing: 100 mm
Spindle Bearing Diameter: Ø60 mm
Bearing Type: Angular Contact Ball Bearing
Tool Taper: SK40 (DIN 69871 / ISO 7388-I)
Pull Stud: M16 (DIN 69872 / ISO 7388-II)
Automatic Tool Clamping
Tool Clamping Force: 6,000 N
Spindle Overhang: 330 mm
Spindle Motor Power: 9 / 11 kW (100% / 60% Duty Cycle)
Optional Spindle Speed: 0 – 8,000 rpm
Maximum Torque: 100 Nm (5,000 rpm) / 78 Nm (8,000 rpm Option)
Noise Level: 72 dB(A) at 5,000 rpm
Milling Capacity in Steel (16MnCr5 – 790 N/mm²): 220 cm³/min
Maximum Drilling Capacity in Steel: Ø25 mm
Maximum Tapping Capacity in Steel: M20
AC Servo Drives with Ball Screw Spindles
Feed Rate (X/Y/Z): 0.01 – 12,000 mm/min
Rapid Traverse (X/Y/Z): 12 m/min
Feed Force X/Y: 6,000 N
Feed Force Z: 8,800 N
Resolution: 0.001 mm
Tool Carrier: Drum Type with Direction Logic
Automatic Tool Changer
Maximum Total Tool Weight in Magazine: 36 kg
Maximum Tool Diameter: 100 mm
Maximum Tool Length: 220 mm
Tool Change Time: T1: 5.8 s / T2: 3.9 s / T3: 3.9 s
Chip-to-Chip Time (VDI 2852): T1: 8.9 s / T2: 7.0 s / T3: 7.0 s
Coolant Tank Capacity: 100 L
Coolant Pump Flow Rate: 10 L/min
Maximum Coolant Pressure: 3.7 bar
Coolant Supply: 4 External Nozzles
Automatic Central Lubrication for Guideways and Ball Screw Spindles
Grease Lubricated Main Spindle Bearings
Power Supply: 3/PE ~ 400 V / 50–60 Hz
Maximum Voltage Fluctuation: +5% / -10%
Connected Load: 15 kVA
Rated Current: 22 A
Maximum Current: 25 A
Main Fuse: 35 A (Slow-Blow)
Required Short-Circuit Power: 1600 kVA
Pneumatic System Pressure: 5 – 10 bar
Minimum Air Flow: 750 L/min
Average Air Consumption: 180 L/min
Additional Equipment
Automatic 12-Position Tool Changer
Automatic Central Lubrication System
Coolant System with 4 External Nozzles
Automatic Tool Clamping System
SK40 Spindle Interface
Machine Benefit:
Reliable 12-Station Automatic Tool Changer
Integrated Automatic Lubrication System for Guideways and Ball Screw Spindles
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
