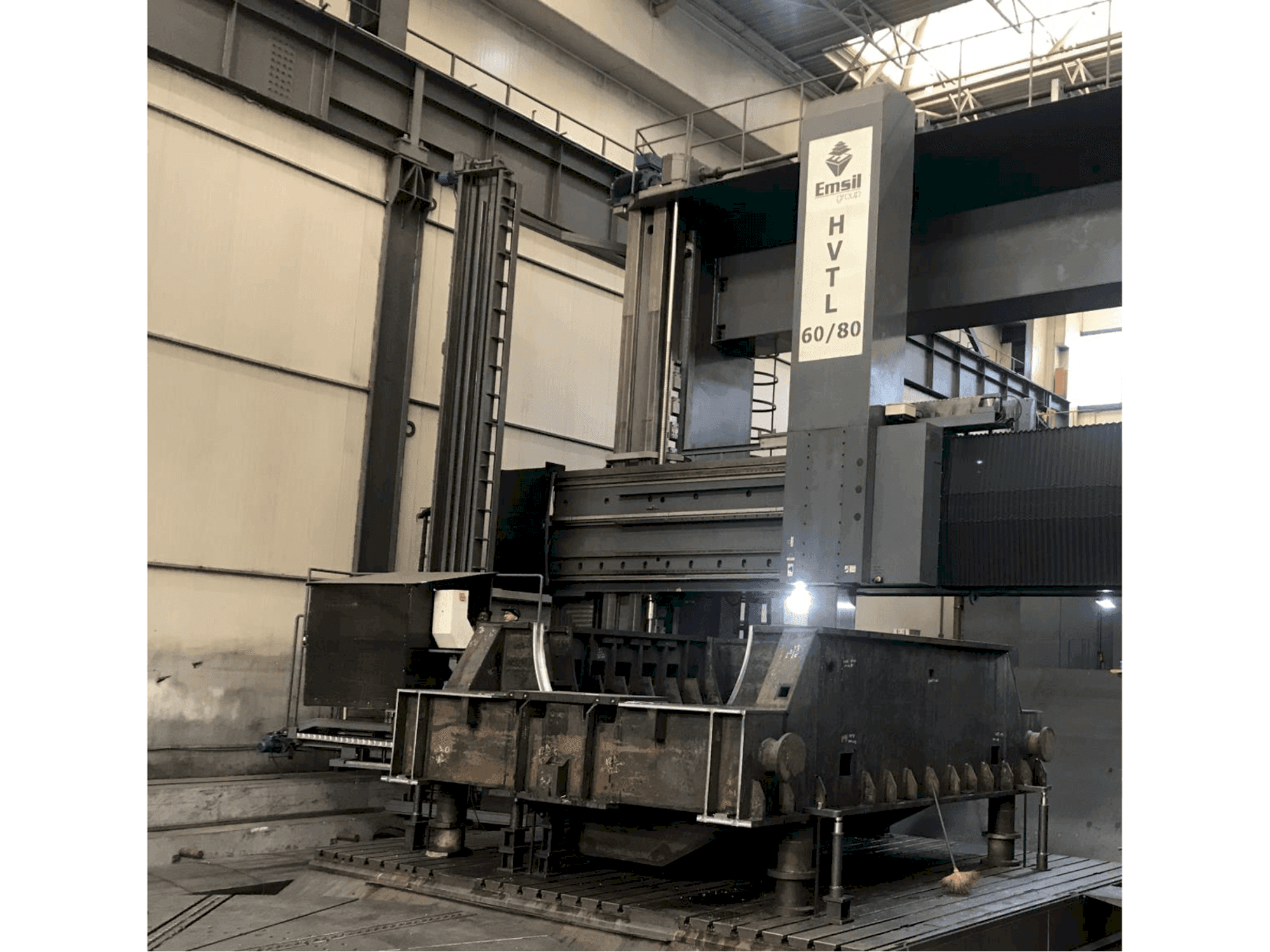

Front view of Emsil HVTL 60/80  machine

Emsil HVTL 60/80

Emsil - HVTL 60/80

2015

3,000,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Emsil HVTL 60/80 vertical turning lathe was made in the year 2015. It is equipped with a Fanuc 31i control unit. The machine has fixed table dimensions of 3 x 2000 x 6000 mm.

Overview

  • brand: Emsil
  • year: 2015
  • MODEL: HVTL 60/80
  • application type: Turning
  • Location: Romania
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: RO-TUR-EMS-2015-00001

Technical Information

Control Unit

  • Brand: FANUC
  • Model: 31i

Movement

  • Y-AXIS Movement: 11800 mm
  • Y-AXIS Working Feed: 1000 mm/min
  • Z-AXIS Movement: 2700 mm
  • Z-AXIS Working Feed: 1000 mm/min
  • W-Axis Movement: 5200 mm
  • W-Axis Working Feed: 0 ÷ 250 mm/min

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Work piece maximum diameter: 8500 mm
      • - Distance between columns: 8500 mm
      • - Work piece maximum diameter through gantry travel: 11000 mm
      • - Work piece maximum height: 6000 mm
      • - Work piece maximum weight on faceplate: 100000 kg
      • - Table diameter: 6000 mm
      • - Speeds range (continuously variable): 0 - 50 rpm
      • - 4 x main motor fanuc make: 160 kw (4 x 40)
      • - Maximum torque available at the table: 470000 nm
      • - Feed range (milling operations): 1 ÷ 240 dgr/min
    • Qualitative Machine Benefits:
      • - Fixed table − dimensions: 3 x 2000 x 6000 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
