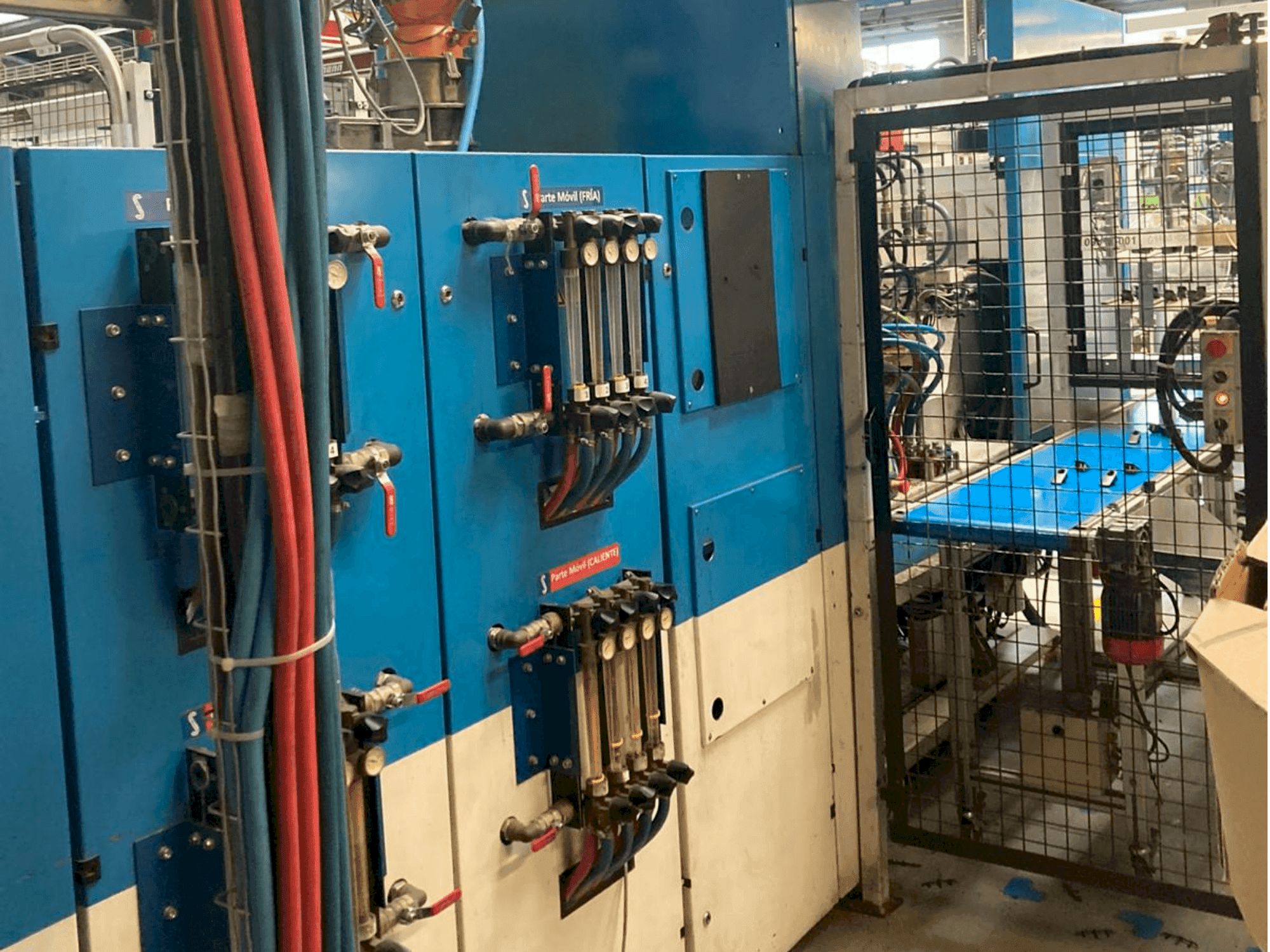

Front view of Engel ES 500/110 HL  machine

Engel - ES 500/110 HLES-INJ-ENG-2002-00001

14,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp

This ENGEL ES 500/110 HL Injection moulding machine was manufactured in the year 2002 in Austria. The machine has a clamping force of 1100 kN and screw diameter 40mm. Production hours are at 94904.


  • brand: Engel
  • year: 2002
  • MODEL: ES 500/110 HL
  • production hours: 93904
  • application type: Injection Moulding
  • Location: Spain
  • machine type: Injection Moulding Machines
  • availability: Immediately

Technical Information - Engel ES 500/110 HL

General Data

  • Measurements width: 4800 MM
  • Measurements depth: 1420 MM
  • Measurements height: 2000 MM
  • Machine weight: 6400 KG

Injection Unit

  • Screw diameter: 40 mm
  • Stroke volume: 251 cm3 CM³
  • Injection pressure: 1300 bar
  • Screw speed: 20-400 r/min
  • Heating capacity: 9.2 kW
  • Adjustable heating zones: 4
  • Nozzle pressure: 50 kN

Clamping unit

  • Clamping force: 1100 kN
  • Opening stroke: 500 mm
  • Distance between bars: 750 mm
  • Mould height min: 250 mm

    Additional Equipment

    • - Linear robot

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
