- Engel INSERT 500V/100 Injection moulding machine

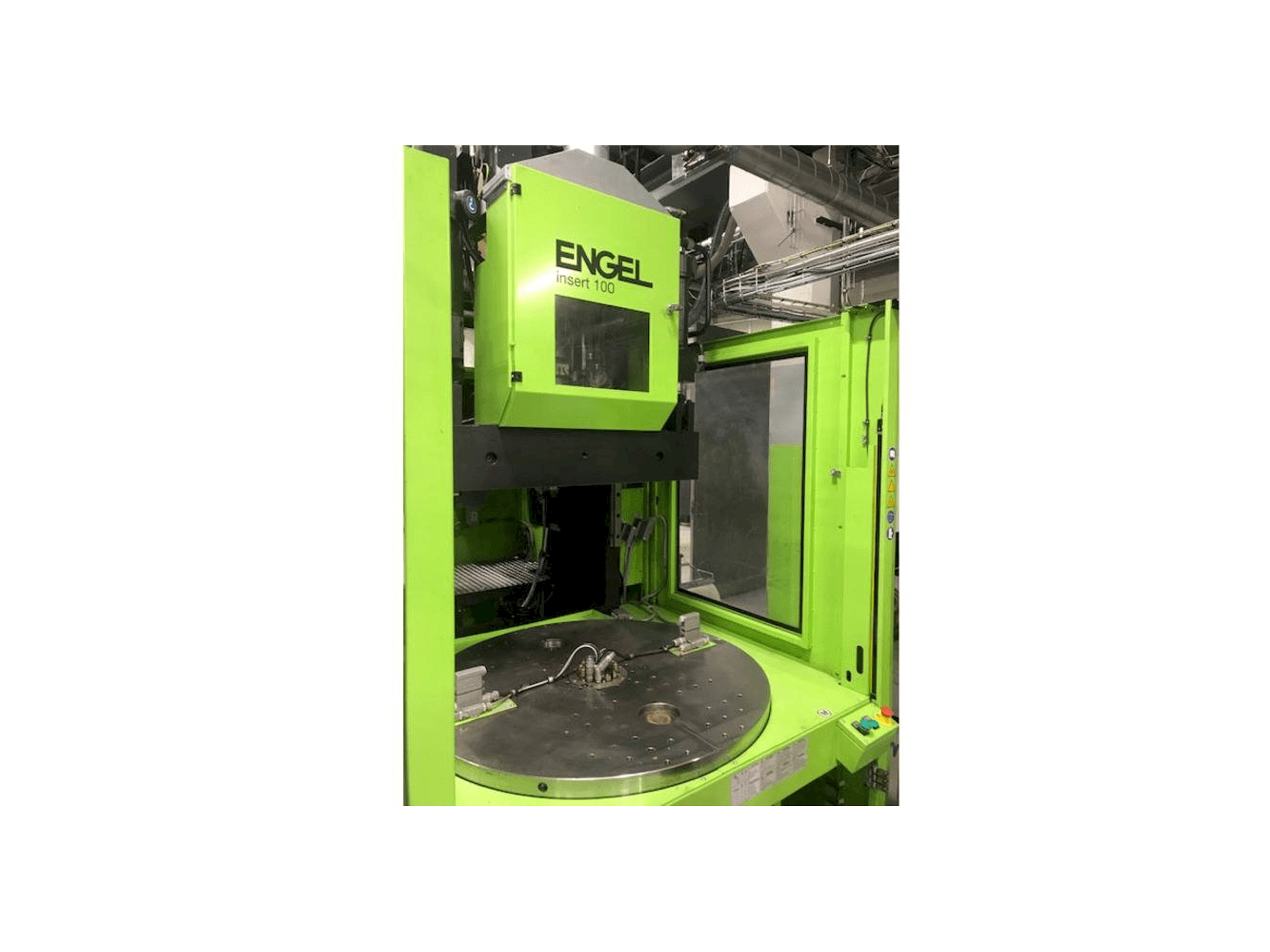

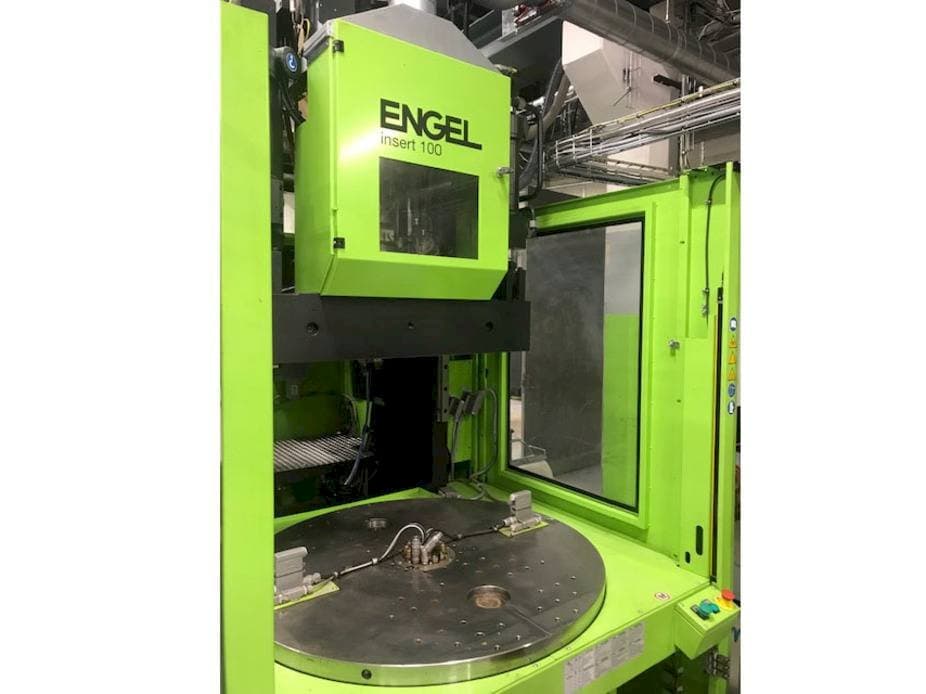

This Engel INSERT 500V/100 Injection moulding machine was built in the year 2018 and has 13258 running hours. The machine has a clamping force of 1000 kN and a screw diameter of 40 mm.
Overview
- brand: Engel
- year: 2018
- MODEL: INSERT 500V/100
- production hours: 13258
- application type: Injection Moulding
- Location: Sweden
- machine type: Injection Moulding Machines
- availability: Sold
- GINDUMAC ID: SE-INJ-ENG-2018-00001
Technical Information
General Data
- Machine weight: 8500 kg
Injection Unit
- Screw diameter: 40 mm
- Stroke volume: 251 CM³
- Injection pressure: 1300 bar (regenerative) - 2020 bar (max)
Clamping unit
- Clamping force: 1000 kn
- Distance between bars: 700 mm
- Mould height min: 350 mm
- Ejector stroke: 105 mm
Media
- Main electronic connection: 110 kW
Additional Information
- Technical Machine Benefits:
- - L/d ratio: 20
- - Heating zones incl. Nozzle: 4
- - Heating: 9,3 kw
- - Opening stroke + cylinder tolerance: 358 mm
- - Platen size horizontal x vertical: 1130 x 500 mm
- - Maximum mold weight moving platen: 600 kg
- - Maximum mold weight total: 2100 kg
- - Weight clamping unit: 7100 kg
- Qualitative Machine Benefits:
- - As new
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
