Famar Pronto 6

Photo Gallery

Famar - Pronto 6IT-TUR-FAM-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Famar Pronto 6 For Sale | gindumac.com

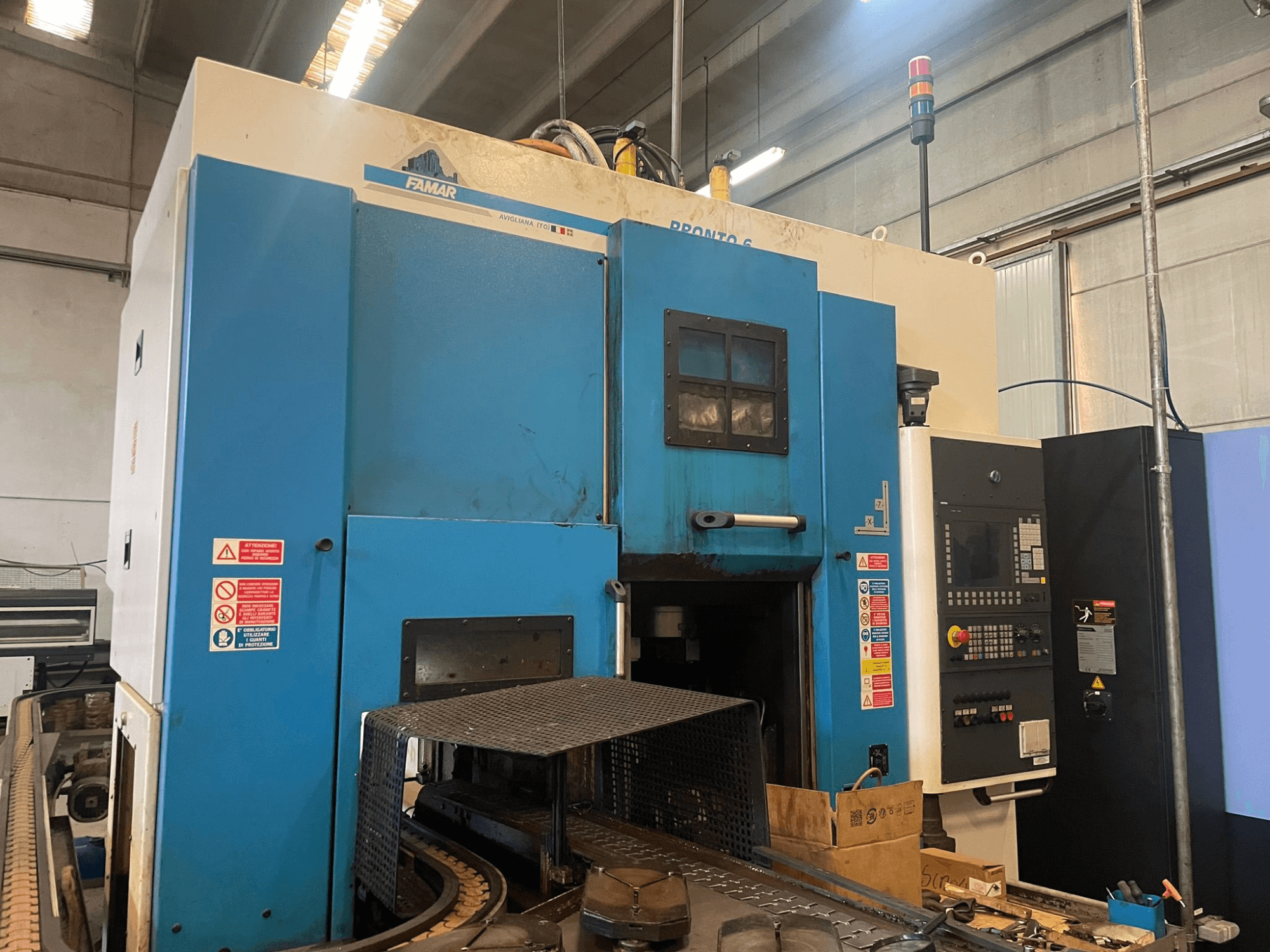

This 4-axis Famar Pronto 6 was manufactured in 2004 and fully overhauled in 2024. It features a maximum turning diameter of 250 mm and a turning length of 240 mm. The machine is equipped with a 12-position Sauter turret for driven tools and has a maximum spindle speed of 5,000 rpm. If you are looking to get high-quality turning capabilities, consider the Famar Pronto 6 vertical turning machine we have for sale. Contact us for further details.

Overview

brand: Famar
year: 2004
MODEL: Pronto 6
application type: Turning
Location: Italy
machine type: Vertical Turning Machine

Technical Information - Famar Pronto 6

Dimensions

Machine Height: 2558 mm
Machine Weight: 10000 kg

Movement

Number of Axes: 4
X-axis Travel: 340 mm
Z-axis Travel: 215 mm

Technical Specification

Driven Tools: Yes
Spindle Power: 25 kW
Spindle Speed: 5000 RPM

Additional Information

Capacity

Max turning diameter: 250 mm (also stated as maximum workable diameter: 250 mm)
Max turning length: 240 mm (also stated as maximum workable length: 240 mm)
Chuck diameter: 315 mm

Axes / Travels

Rapid traverse X-axis: 72 m/min
Rapid traverse Z-axis: 40 m/min
Rapid traverse Y-axis: 20 m/min

Main Spindle

Built-in motor spindle
Spindle nose: ASA 6
Max spindle torque: 146 Nm

Turret / Tooling

12-position Sauter turret for driven tools
Tool holder interface: VDI 40
Driven tools: Yes (12 powered positions)
Max driven tools power: 14 kW
Max driven tools torque: 80 Nm

Dimensions

Machine depth: 4,275 mm

Additional equipment

Automation/loader: Loading/unloading time 4–6 s
Transporter (automation) weight: 660 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
