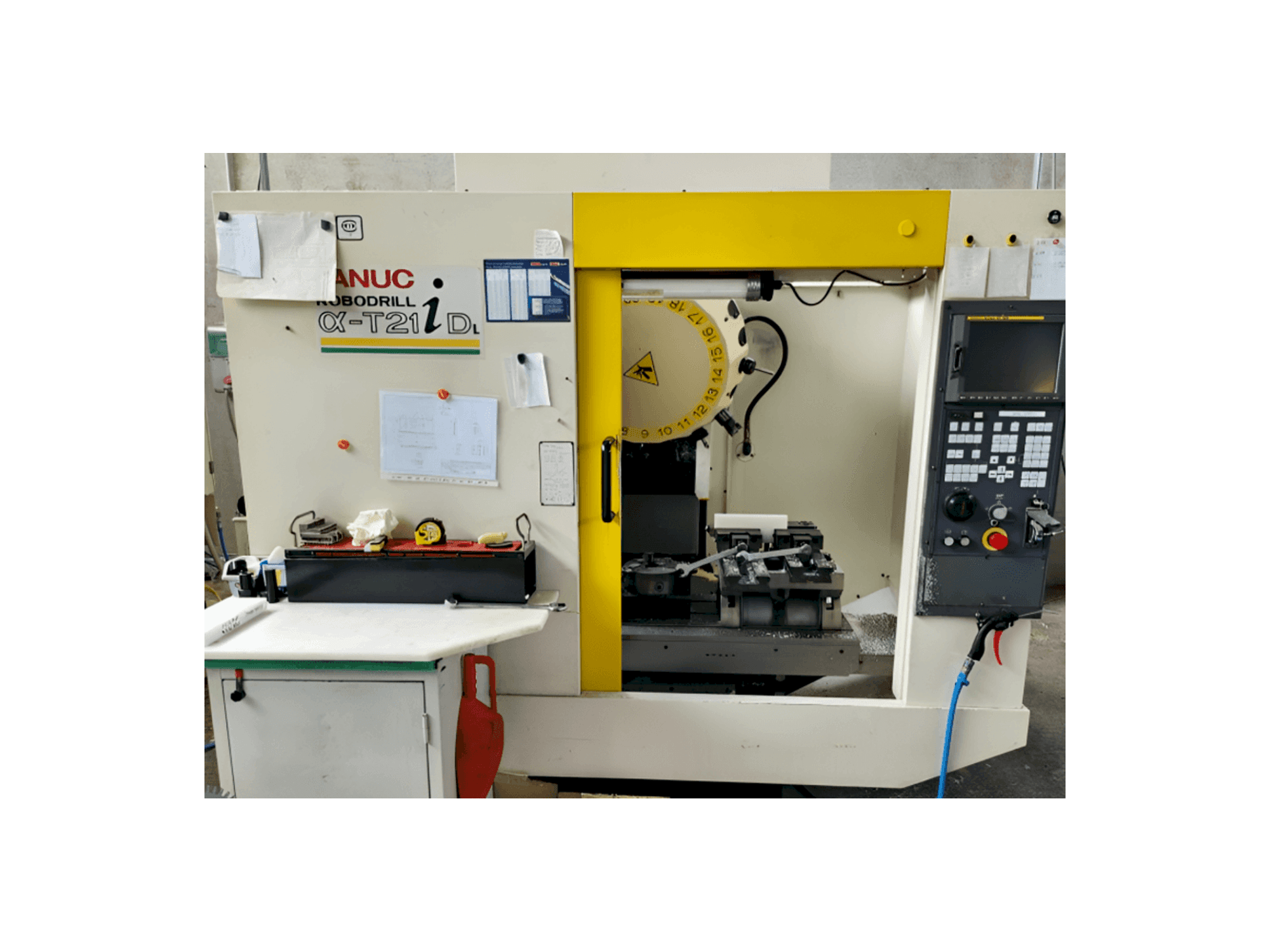

Front view of FANUC Robodrill Alpha T21iD  machine

FANUC Robodrill Alpha T21iD

FANUC - Robodrill Alpha T21iD

2004

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This FANUC Robodrill Alpha T21iD Vertical Machine Center was made in the year 2004. It is equipped with a Fanuc 16iMB control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.

Overview

  • brand: FANUC
  • year: 2004
  • MODEL: Robodrill Alpha T21iD
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Fanuc
  • GINDUMAC ID: IT-MIL-FAN-2004-00001

Technical Information

General Data

  • Measurements width: 1570 mm
  • Measurements depth: 2040 mm
  • Measurements height: 2240 mm
  • Machine weight: 2100 kg

Control Unit

  • Brand: Fanuc
  • Model: 16iMB

Main drive

  • Spindle speed range: 10000 1/MIN
  • Spindle motor power: 5,5 kw
  • Number of axis: 3

Movement

  • X-AXIS Movement: 700 mm
  • X-AXIS Rapid traverse: 54 M/Min
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Rapid traverse: 54 M/Min
  • Z-AXIS Movement: 330 mm
  • Z-AXIS Rapid traverse: 54 M/Min

Table

  • Outer length: 650 mm
  • Outer width: 400 mm
  • Table load: 250 kg

Tools

  • Slots in storage: 21

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Cone spindle: bt30

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
